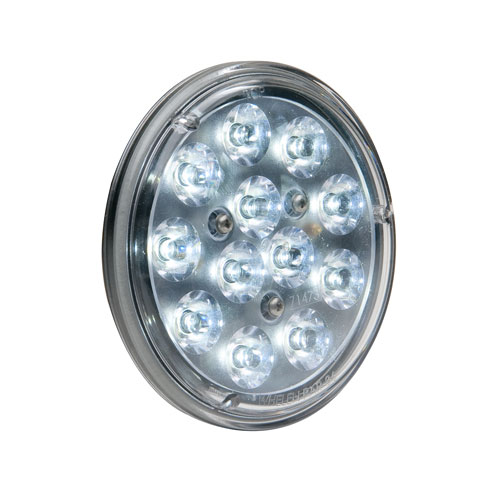

WHELEN PARMETHEUS PLUS LED REPLACEMENT 14V LANDING LIGHT - PAR 36 - P36P1L

$257.95/Each
Quantity
Add to Wishlist
Part# 11-12976
MFR Model# 01-0771833-10

Overview

FAA-PMA Approved
Parmetheus Plus PAR36 LED lights are a drop-in replacement for outdated Halogen PMA Approved. Lightweight, low-current and moisture resistant, they provide stable light output for thousands of operating hours. These LED lights are 40% brighter output than the original Parmetheus Series assemblies.

LED lighting is the ideal technology for aviation applications. Whelen LED lights are time and field-tested for reliability and long-life performance under the tough conditions required by Fire, Emergency, DOT and Law Enforcement professionals around the world.

STC-PMA

Features

  • Direct replacement for outdated PAR36 Halogen and HID lamps.
  • First commercially available PAR36 LED for Aviation applications.
  • 10,000 hour operating life.
  • Available in Landing and Taxi versions.
  • Convenient “Drop In” design for ease of installation:
  • Power wiring attaches to brass screw terminals; Weight is virtually identical to previous PAR36 lamps; Assembly design includes clocking notch
  • Polycarbonate, replaceable, hard-coated outer lens.
  • Metal, heat dissipating coated housing.
  • Whelen TIR™ (Total Internal Reflector) technology rivals strobe in intensity and effectiveness.
  • Proudly designed and manufactured in the USA.
  • Five year warranty.

Specifications

  • Model: P36P1L
  • Type: Landing (Spot Light, 10 degree)
  • Amps: 1.2
  • Volts: 14 VDC
  • Size: 4.38" Round x 1.75" Face to Screw terminal
  • Customers Also Viewed
  • Frequently Purchased With
  • Accessories

Reviews

I gave it four because the price is way too high, Other than that it is twice as bright as my 100Watt I tried a 250W but the breaker would trip and the wires are too small to handle it. The Leds however are as bright as a 250Watt and I love it! Thinking of getting the wheel Landing lights with the LEDs. Then I will LIGHT OF THE WORLD!

Les G
July 29, 2019

This is a great upgrade Ive been told I can be seen from 15 miles out easily. The only reason I didnt give 5 stars is because the tang on the back of the light doesnt line up with the detent in the retaining bezel so the light had to be mounted upside down or the bezel had to be modified otherwise a absolute great product!

Banning
April 28, 2019

For a light bulb STC, the amount of paperwork associated with this is astounding. But of course the light is good--hopefully it will last awhile at $258.00 a pop:)

Daniel R
April 4, 2019

Great choice for a 1978 PA32-300. Drops right in with no modification to cowling, I was able to install it myself which is why its getting 4 starts instead of 3. This light does a little better that the old school halogen light. However, its not 40% brighter as they say. I have had it about 3 weeks and have done 2 night flight and I wasnt over the top impressed. Does provide a nice look to an old airplane!

Josh
November 10, 2018

Well made, easy to install, and Bright!!!!

Jim
October 1, 2018

Easy install, dropped right in. Definitely brighter than the old lights, I have a generator still so I can actually turn these on

Derek
September 21, 2018

I installed this lamp on my 1965 Cessna 172F. It installed perfectly and performed flawlessly. It appears much brighter than the original incandescent lamp and draws 6 amps less power!

Joe V
August 24, 2018

My 1966 172G still has a generator and does fine until needing the landing or taxi lights. The airplane is in excellent condition and at this time makes no sense to switch to an alternator. As other commenters have said, I like to use the lights during day for increased visibility. But with the excessive current draw I would use them sparingly even at night. These LED lights are magic and solved the current draw issue. And of course the increase in brightness is awesome. Wish I would have changed years ago.

Dave S
July 17, 2018

I purchased this for installation on my homebuilt Velocity (still under construction). The kit actually came with the ubiquitous GE 4509 incandescent landing light, but theres no way thatll get installed on this sleek, brand-new Velocity Im building!

John T
March 11, 2018

After 4 years of flying my Cherokee 140D and replacing the incandescent landing light twice I decided it was time to move to the Whelen LED landing light. I was very interested in seeing my amp load decrease to lessen the overall load on the system and breaker on that circuit. Installation was as simple as replacing the incandescent lamp, and the power draw is miniscule compared to the old GE lamp. I am very happy with the purchase and the performance I have seen so far. I fly in and out of a semi busy non-towered training area airport so I prefer to fly with my light on during takeoff, area flying, and all pattern work. This was the answer to my problem with high amp draw and regular use of the lamp.

Kyle W
February 22, 2018

Q&A

Q: Can you confirm that this is Whelen P/N P36P1L?

Part number 11-08294 is Whelen Part number PLED1L. Part number 11-12976 is Whelen Part number P36P1L.

Q: So, if the Parmetheus Plus is 40% brighter, then that means its 4,200 lumen?

Per Whelen: This is actually measured in candlepower. The Parmetheus Plus would have 60,000 candlepower.

Q: What is the warranty on the Whelen Parmetheus Plus landing light?

This has a 5 year warranty that will cover all manufacture electronic defects.

Q: What is the difference between the Whelen Parmetheus Plus taxi and landing version of this light?

The landing light will have a 10 degree spot light and the taxi light will have a 40 degree spreader optic.

Q: Is the Whelen Parmetheus Plus LED bulb capable of pulse mode?

This unit alone does NOT have a pulse mode option. An aftermarket pulse system would need to be installed on the aircraft to put the light into pulse mode.

Q: Does this Whelen Parmetheus Plus LED landing light have an STC, and is the stc included? Or how I can get the stc?

Whelen does have an STC, but it is not included in the box. The STC can be viewed on the Whelen web site, www.whelen.com .

Q: I see the Whelen Parmetheus LED is a direct replacement for my GE4509 landing light in my C170A. Can it be installed by the pilot/owner with only a log book entry or due to the fact there is an STC involved this would require an AMO to sign off?

This is just a replacement lamp, that the aircraft owner should be able to replace with a log book entry, but we always recommend you consult with your A&P to verify there are no other requirements.

Q: Would the Whelen Parmetheus Plus P36P1L bulb replace the GE4509? I have 1975 172m model.

Yes, the GE4509 is a 14v Par 36 bulb. This is also a 14v Par 36 bulb and will be a direct replacement.

Q: How bright is this Whelen Parmetheus Plus LED landing light?

PER THE MFG. - Replaces GE 250 watt lamps. 1500+ lumens

Q: Which terminal is positive and negative on the Whelen Parmetheus Plus LED landing light?

As viewed from the rear of the light, the terminal on the left is ground and the right terminal is positive. The polarity is also shown on the part number label affixed to the light.
