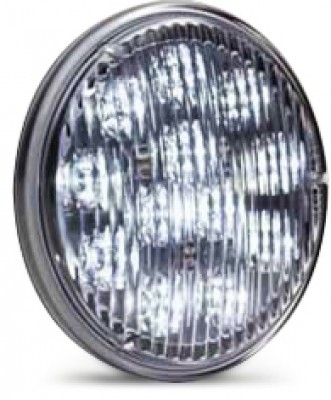

Whelen Parmetheus™ Plus LED Replacement 14V Taxi Light - PAR 36 - P36P1T
MFR Model# 01-0771833-15
Eligible for FREE Shipping
Overview
|
FAA-PMA Parmetheus PAR36 LED lights are a drop-in replacement for outdated Halogen lamps. PMA Approved, lightweight, low-current and moisture resistant, they provide stable light output for thousands of operating hours. These LED lights are 40% brighter output than the original Parmetheus Series assemblies. LED lighting is the ideal technology for aviation applications. Whelen LED lights are time and field-tested for reliability and long-life performance under the tough conditions required by Fire, Emergency, DOT and Law Enforcement professionals around the world. |
 |
WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Features
- Direct replacement for outdated PAR36 Halogen and HID lamps.
- First commercially available PAR36 LED for Aviation applications.
- 10,000 hour operating life.
- Available in Landing and Taxi versions.
- Convenient “Drop In” design for ease of installation: Power wiring attaches to brass screw terminals; Weight is virtually identical to previous PAR36 lamps; Assembly design includes clocking notch.
- Polycarbonate, replaceable, hard-coated outer lens.
- Metal, heat dissipating coated housing.
- Whelen TIR™ (Total Internal Reflector) technology rivals strobe in intensity and effectiveness.
- Proudly designed and manufactured in the USA.
- Five year warranty.
Specifications
- Model: P36P1T
- Type: Taxi (Spreader Optic, 40 degree)
- Amps: 1.2 Amps
- Volts: 14 VDC
- Size: 4.38" Round x 1.75" Face to Screw terminal
Documents
- STC (PDF)
- PMA Supplement (PDF)
- Install Manual (PDF)
- Cross Reference Replacement Guide (PDF)
- Product Brochure and Replacement List (PDF)
- Drawing (PDF)
Reviews
Easy drop-in replacement for the Norman 4509.
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
Great product at a fair price. Brightness over OEM is very noticeable. The heat difference was incredible. Highly recommend.
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
The special nose wheel taxi light bracket on my Bonanza would only accept the HID lamp of the same diameter. This LED lamp wouldnt fit that bracket, so I had to return it.
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
Same as the landing light in that its a brighter white and unlike the old taxi light I see the sides of the taxi way and not just the middle. An improvement for sure.
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
Wouldnt waste the money on old style bulb.
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
As advertised
Verified Purchase
WHELEN LED PARMETHEUS PLUS 01-0771833-15 PAR36 TAXI
Easy to install as a replacement of the old incandescent light, very pleased with the result!
Itwas received proptly & has worked well in the past, but I have not installed it in the new airplane yet.
Awesome maximum lighting with minimal amperage .
Plug and play simplicity. Unbelievable fast shipping!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
You will need to contact your A&P or local FAA office to determine if a 337 is required. You may want to contact Whelen directly and speak with their tech support to see if they can help.
