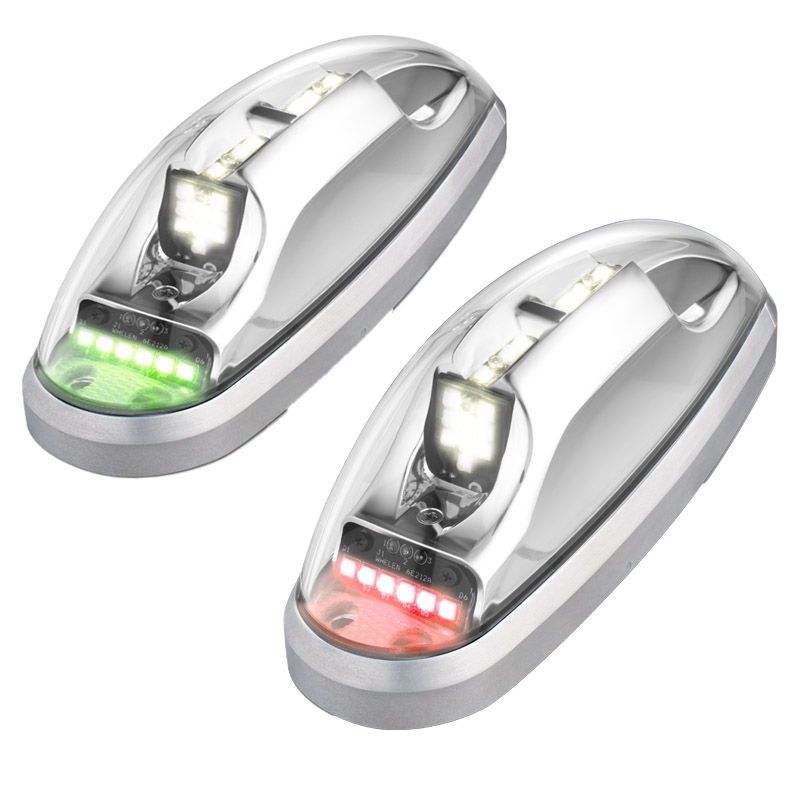

Whelen Orion 600 Series Wingtip Position / Anti-Collision LED Lights

From $625.00 to $625.00
Whelen # Model # Description Color Voltage Part # Price Buy
01-0771733-01OR6001GOrion Wingtip PTAGreen14V
11-11365
$625.00 Add to cart for current price
Quantity
01-0771733-02OR6001ROrion Wingtip PTARed14V
11-11366
$625.00 Add to cart for current price
Quantity
01-0771733-11OR6002GOrion Wingtip PTAGreen28V
11-11367
$625.00 Add to cart for current price
Quantity
01-0771733-12OR6002ROrion Wingtip PTARed28V
11-11368
$625.00 Add to cart for current price
Quantity
Subtotal $0.00
Add to Wishlist

Overview

ORION600 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state of the art LED Technology available in an all-inclusive package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofitable to the Whelen legacy strobe products. The ORION600 series is quite simply the brightest form of LED Anti-collision and Position lighting available.

Model ORION600 Position/Anti-Collision Lighthead All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.

FAA TSO-C96c Class II / TSO-C30c Type II & III

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Fully FAA/TSO-C96a & TSO-C30c approved
  • FAR SPEC Certified
  • Replaceable hard coated polycarbonate lens to maintain maximum light output
  • No RF emissions
  • Aerodynamic design without sacrificing light output
  • Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
  • Environmentally tested and certified to RTCA/DO-160G standards

Specifications

  • Weight 0.4 lbs.(181gm)
  • Dimensions H x W x L 2.04” (52mm) x 1.78” (45mm) x 5.65” (144mm)
  • Volts 12 VDC 28 VDC
  • Position LED colors Aviation Red Aviation Green
  • Anti-Collision LED color Aviation White
  • Lenses Clear Polycarbonate Hardcoat, Field Replaceable

Far Spec

  • A Technical Standard Order (TSO) is a minimum performance standard and does equal compliance with the applicable Federal Aviation Regulations. In fact other manufacturers produce TSO approved items with operational characteristics that conflict with the FARs. Whelen designs products as FAR-SPEC, Federal Aviation Regulations – Specified Lighting. FAR-SPEC is compliant with all applicable FAR’s making your installation legal.
  • Installers must follow the approved guidance for installation of the product to be FAR-SPEC compliant
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Caldwell A Verified Purchase

WHELEN ORION 600 28V WINGTIP PTA RED OR6002R

June 28, 2023

Caldwell A Verified Purchase

WHELEN ORION 600 28V WINGTIP PTA GREEN OR6002G

June 28, 2023

Ernest M Verified Purchase

WHELEN ORION 600 28V WINGTIP PTA RED OR6002R

April 26, 2023

Ernest M Verified Purchase

WHELEN ORION 600 28V WINGTIP PTA GREEN OR6002G

April 26, 2023

Work great. Direct bolt on to my 1940 Taylorcraft.

David N Verified Purchase

WHELEN ORION 600 12V WINGTIP PTA RED OR6001R

November 18, 2022

Work great. Direct bolt on to my 1940 Taylorcraft.

David N Verified Purchase

WHELEN ORION 600 12V WINGTIP PTA GREEN OR6001G

November 18, 2022

Direct replacement for my 2013 Piper Mirage! Look great and are brighter than the legacy strobe lights!

J H
May 6, 2022

Very bright. Look sleek. Easy install as a direct replacement for older Whelen unit and didnt need the heavy/large power supply.

Barrett H Verified Purchase

WHELEN ORION 600 12V WINGTIP PTA RED OR6001R

May 4, 2022

Very bright. Look sleek. Easy install as a direct replacement for older Whelen unit and didnt need the heavy/large power supply.

Barrett H Verified Purchase

WHELEN ORION 600 12V WINGTIP PTA GREEN OR6001G

May 4, 2022

Whelen has done a fantastic job with these lights! They are all very bright and super easy to install. For my airplane they even screwed back in the same exact holes as my original old lights.

Trent H Verified Purchase

WHELEN ORION 600 12V WINGTIP PTA GREEN OR6001G

March 17, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the average current draw of the Whelen Orion 600 at 12 volts and at 24 volts?

For position light: 12v = 1/2 amp, 24v = 0.17 amp
For anti-collision light: 12v = 1 amp, 24v = 1/2 amp

Q: Are these lights priced and sold individually or as a pair?

These Orion 600 lights are priced and sold each. An order for quantity 1 will ship with 1 light.

Q: What is the difference between the Whelen Orion 600 series and the Orion 650 series of lights?

Per the supplier: The Orion 600 series has a rear position light built into it. The footprint is also different. The Orion 650 is designed to replace our legacy A650 products while the Orion 600 is designed to replace the A600 Series assemblies.

Q: Is the 600 TSOd on certified aircraft? I have a 650 legacy style on a 2004 American/Bellanca Scout. Or will I need to use the 650 Orion?

Yes, the Orion 600 series LED lights are fully TSO approved for use in certified aircraft.

Q: Are the Whelen Orion 600 series a 3 in 1 light including strobe?

Yes, the Orion 600 is a 3 in 1 light.

Q: What is the type & gauge of wire required for the 12V Whelen Orion 600 nav/strobe system?

4 conductor, 18 gauge wire.

Q: Can you send me the base measures of this Whelen Orion 600 Series LED lights?

Yes, the dimensions are available on our website. Go to the Brochure tab, and download the PDF. It includes a dimensional drawing of the lights for reference.

Q: Will installing these on my certified aircraft allow the removal of the old rotating beacon on the belly of the airplane?

Per Whelen: Per Vendor: That question is for the FAA. We cannot answer questions of legality as they do not involve Whelen Engineering.

Conceptually the answer is yes, the OR600 meets all the position and anti-collision light requirements. However, the FAA may feel differently that must be consulted on these matters.

Q: Is the Orion 600 series strobe a quick flicker or an on / off style?

The strobe is ON/OFF

Q: Can the Orion 600 series strobes be operated by one switch and the navs from another or do both run off one switch?

Each is wired independent and should be run off separate circuits.
