Whelen Orion™ 650 Series Forward Position / Anti-Collision Wingtip Lights
| Model Num. | Description | Whelen # | Part Number | Price | Buy |
|---|---|---|---|---|---|
| OR6501G | Green Forward Position, Anti-Collision Light Wingtip Assembly, 14 VDC | 01-0790725-01 | 11-18768 | $509.00 Add to cart for current price | |

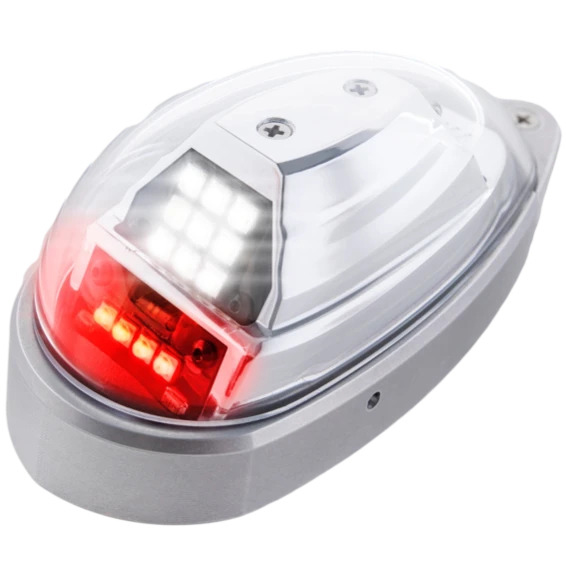

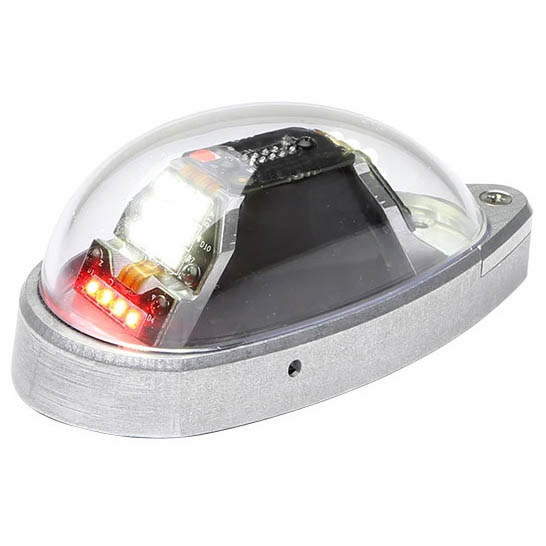

| OR6501R | Red Forward Position, Anti-Collision Light Wingtip Assembly, 14 VDC | 01-0790725-02 | 11-18766 | $509.00 Add to cart for current price | |

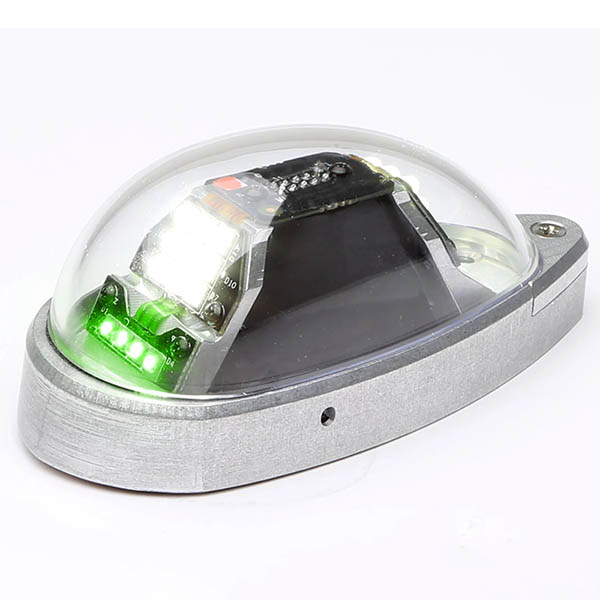

| OR6502G | Green Forward Position, Anti-Collision Light Wingtip Assembly, 28 VDC | 01-0790725-11 | 11-18767 | $509.00 Add to cart for current price | |
| OR6502R | Red Forward Position, Anti-Collision Light Wingtip Assembly, 28 VDC | 01-0790725-12 | 11-18765 | $509.00 Add to cart for current price |
Overview

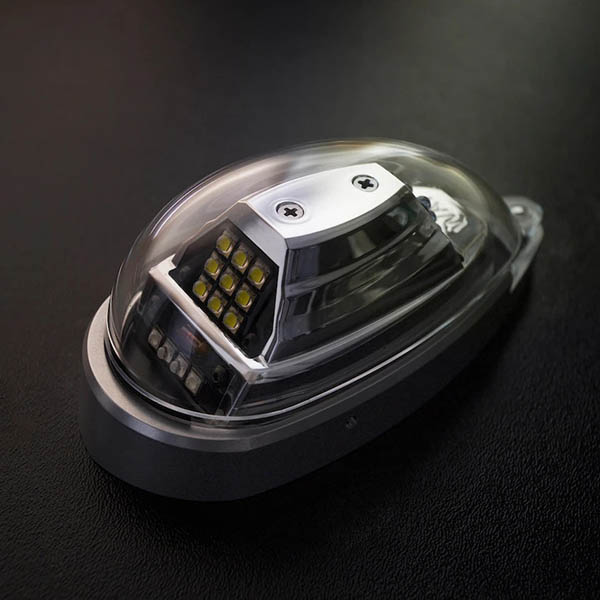

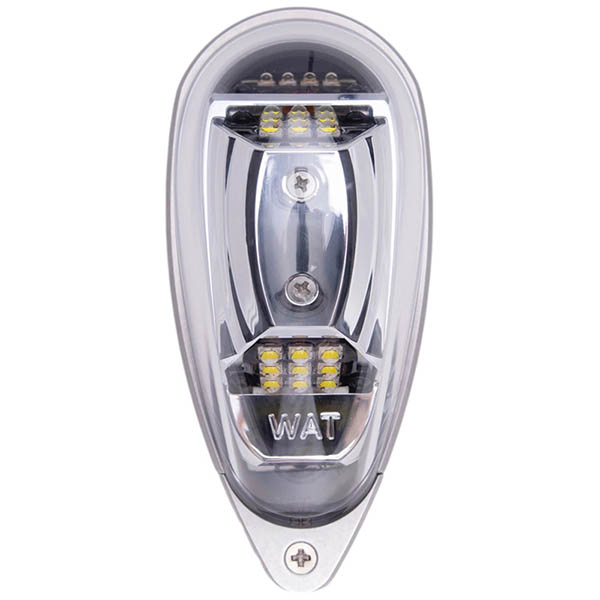

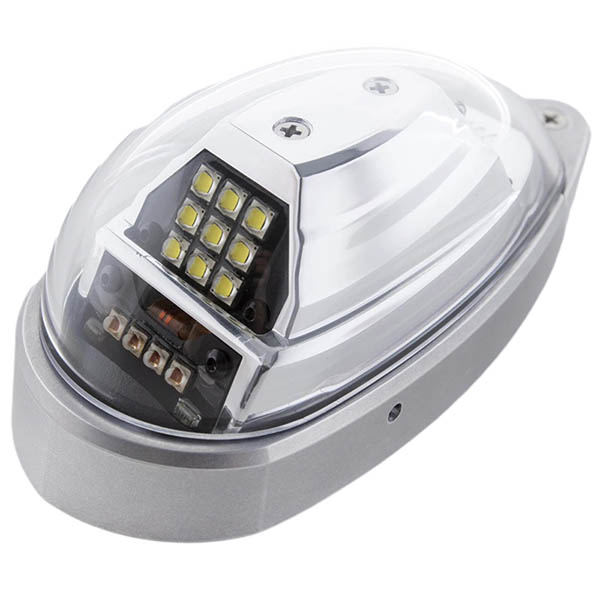

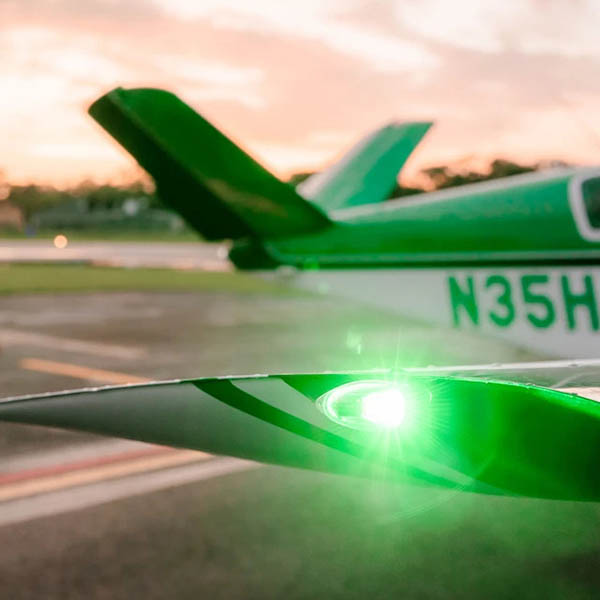

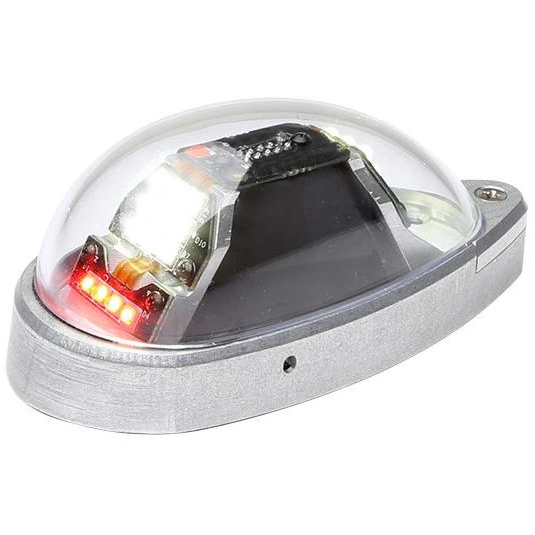

| The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Drawing 90725
- Weight 0.26 lbs
- Current Draw for 14V Models: 0.30 amps / 0.70 Position avg ACL
- Current Draw for 28V Models: 0.15 Amps / 0.35 Position avg ACL
- Lenses Clear Hardcoated Polycarbonate
Drawing
Videos
Reviews

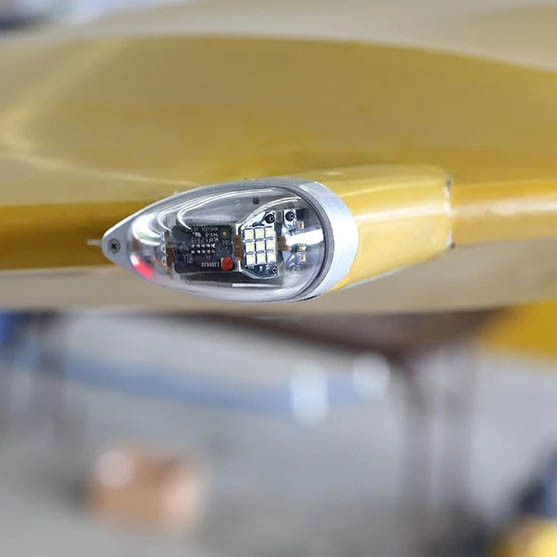

It was an easy install on my 54 c170b. The old whelen strobe had 3 wires and the nav light wire was there also so there was no need to add any wiring. The lights are perfect and bright. A pilot could not see my strobes at 2 miles on a clear day but they seem bright on the ground. A warning sticker for the strobe would have been a nice thing to include and is recommended/required due to the intensity of the strobe. Overall, very satisfied. Removed 2 pounds and some amps from the plane! No noticeable r/f noise either.
Verified Purchase
WHELEN ORION 6501R 12V WINGTIP PTA RED
Great product and more features than expected. Arrived in Australia very promptly
Verified Purchase
WHELEN ORION 6501R 12V WINGTIP PTA RED
Product was packed well without any damage.
Verified Purchase
WHELEN ORION 6502R 28V WINGTIP PTA RED
Direct replacement for my older wingtip lights on my 65 Comanche. These enabled me to remove the strobe power supplies in the wingtip shaving off 2.5 lbs of weight. They look sharp and are really bright. The price is high but that’s the case with aviation and quality products. This was a great project to give my plane a facelift and reduce electrical load. Install time if just removing the old one and the old strobe power supply was about an hour a side. I ran a sync wire from wing tip to wing tip that added another couple hours but it was worth it.
Direct replacement and very bright
Verified Purchase
WHELEN ORION 6501G 12V WINGTIP PTA GREEN
direct replacement and are very bright
Verified Purchase
WHELEN ORION 6501R 12V WINGTIP PTA RED
Easy install, worked perfectly on my Cherokee 6.
Verified Purchase
WHELEN ORION 6501R 12V WINGTIP PTA RED
Great pruduct, highly reccomend. Fits same footprint and nutplate pattern of my old Whelen strobe/nav light. Got rid of old high-voltage stobe power supply, saving 1.1lbs per wing. Only slight issue was the new strobe baseplate is flat, whereas the old strobe had a slight cavity so it would sit against the slight curvature if my wingtip. Solved by fabricating gasket from 1/8 foam material, Could probably also have just used proseal under baseplate too.
Verified Purchase
WHELEN ORION 6502G 28V WINGTIP PTA GREEN
Great pruduct, highly reccomend. Fits same footprint and nutplate pattern of my old Whelen strobe/nav light. Got rid of old high-voltage stobe power supply, saving 1.1lbs per wing. Only slight issue was the new strobe baseplate is flat, whereas the old strobe had a slight cavity so it would sit against the slight curvature if my wingtip. Solved by fabricating gasket from 1/8 foam material, Could probably also have just used proseal under baseplate too.
Verified Purchase
WHELEN ORION 6502R 28V WINGTIP PTA RED
Works exactly as advertised
Verified Purchase
WHELEN ORION 6501R 12V WINGTIP PTA RED
