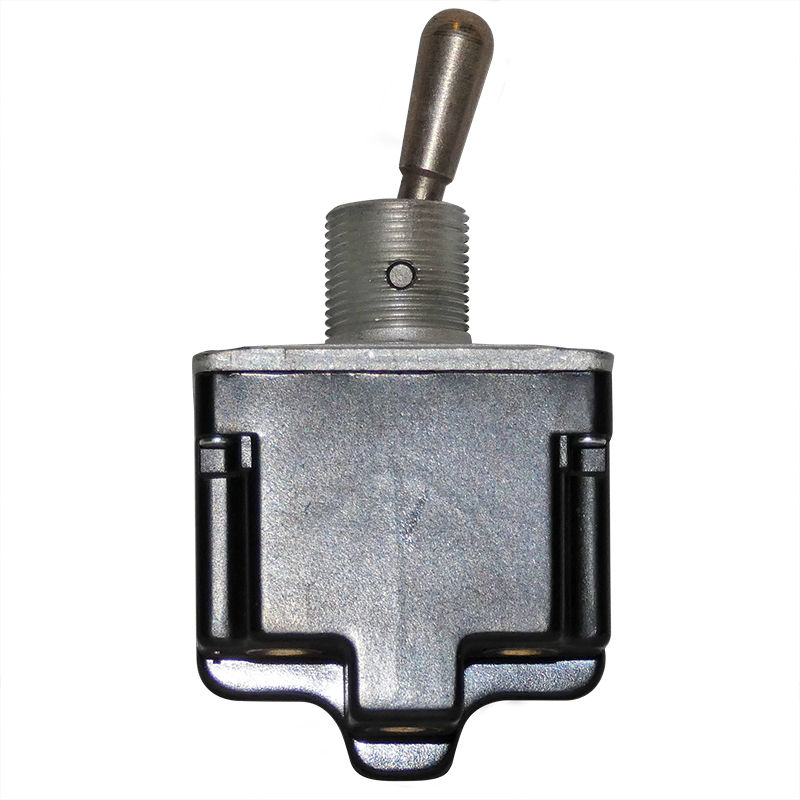

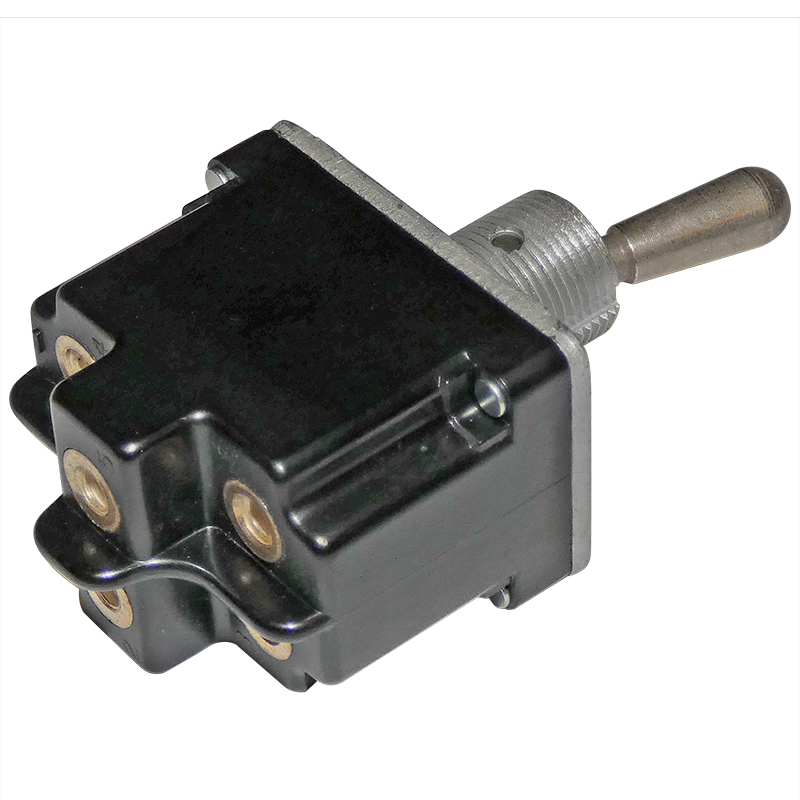

Honeywell MS24524-23 Switch Toggle On/On

$43.60/Each
Quantity
Add to Wishlist
Part# 05-22876
MFR Model# MS24524-23

Overview

Honeywell MS24524-23 Switch Toggle (On/On).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • ECCN (US): EAR99
  • Part Status: Active
  • Pole Throw Configuration: DPDT
  • Actuator Style: Round Lever
  • Switch Configuration: ON ON
  • Bushing Type: Threaded
  • Maximum Current Rating (A): 20@28VDC
  • Maximum Power Rating (VA): 745.7@(CSA/UL)
  • Actuator Length (mm): 17.27
  • Mounting: Panel Mount with Threads
  • Termination Style: Screw
  • Number of Terminals: 6
  • Terminal Length (mm): 3.3
  • Seal: Complete/Environment-Proof/Panel/Body
  • Seal Location: N/A/N/A/Panel/Body
  • Seal Description: Complete/Environment-Proof/N/A/N/A
  • Body Orientation: Straight
  • Minimum Operating Temperature (C): -65
  • Maximum Operating Temperature (C): 71
  • Thread Size: 15/32-32
  • Body Length (mm): 33.5
  • Bushing Length (mm): 11.9
  • Body Depth (mm): 22.6
  • Body Height (mm): 29.46
  • Product Length (mm): 33.5
  • Product Depth (mm): 22.6
  • Product Height (mm): 63.47
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This is not a locking switch do not let the picture for you I ordered one to use it on my landing gear and when it arrived it did not have the locking mechanism

Lloyd A Verified Purchase

HONEYWELL SWITCH MS24524-23

May 13, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The photo appears to show this is a locking switch. Is it a locking toggle?

This is not a locking switch.

Q: The switch configuration says, ON ON. I take that to mean there is no OFF position. Is this true?

Correct, there is not an off position, both sides are "ON".
