|P & B Part No.||AMP|
These bi-metallic single pole breakers weigh less than 2 oz. and are especially suitable for homebuilt aircraft. Used as original equipment in Beech, Cessna and Piper aircraft. Maximum operating voltages: 32 VDC and 250 VAC (to 400 Hz).
Toggle Thermal Circuit Breaker
• 0.5 amp to 50 amp ratings may be used as on/off switch.
• Cannot be reset against overload.
• Screw termination.
• Trip-free operation.
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

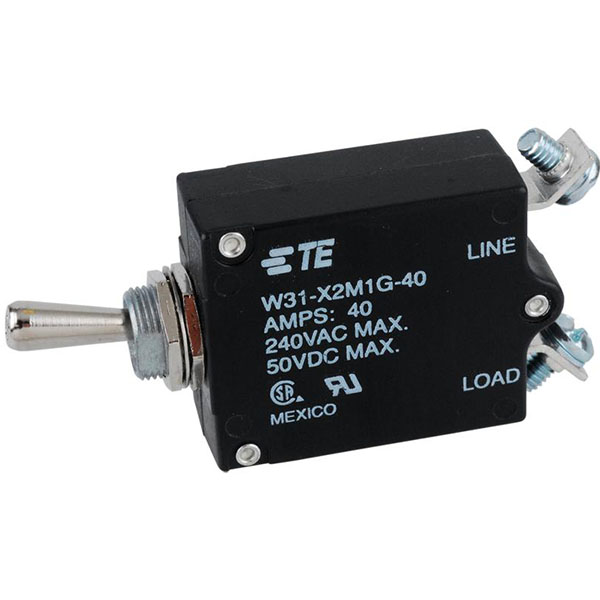

TE P&B CIRCUIT BREAKER W31-X2M1G-40
Direct replacement to existing breaker. Easy to install and works perfectly.
Second Tyco circuit breaker Ive purchased. It works, service was prompt.
Received ina timely fashion, looks good but not yet installed.
I needed a couple of circuit breakers switches and the web site at Aircraft Spruce delivered... I promptly received my order. everything was packed well.
Arrived in short time. Excellant service.
Only place I could find this item. Thanks for stocking them!
These Tyco switch breakers are a great replacement for failing switches. Pricing far better than competition. Spruce is always fast and accurate.
part was good and your service was excelent
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The arm is the same length as a toggle switch that would be used with at switch guard, so it "should" work fine. If the switch/breaker is positioned to be on when the guard is down, it would stay on until the guard is lifted and manually turned off. Remember each application is different and we cannot guarantee that it will work in all application or situations.
These toggle switches are commercial and have no FAA approval by themselves. They are commonly approved by the airframe approval if they were OEM on certificated aircraft. Please confirm in your parts manual or with you A&P to determine whether these can be used in your airplane.
These toggle switches are commercial and have no FAA approval by themselves. They are commonly approved by the airframe approval if they were OEM on certificated aircraft. Please confirm in your parts manual AND with you A&P to determine whether these can be used in your airplane.
The line side is receiving power and the load side goes to the unit.
It is not able to be reset while under an overload, if its is not overloaded it can be reset.
