Whelen 90613 Series LED LH Red Wingtip Anti-Collision

$1195.00/Each
Part# 11-17550
MFR Model# 01-0790613-92

Overview

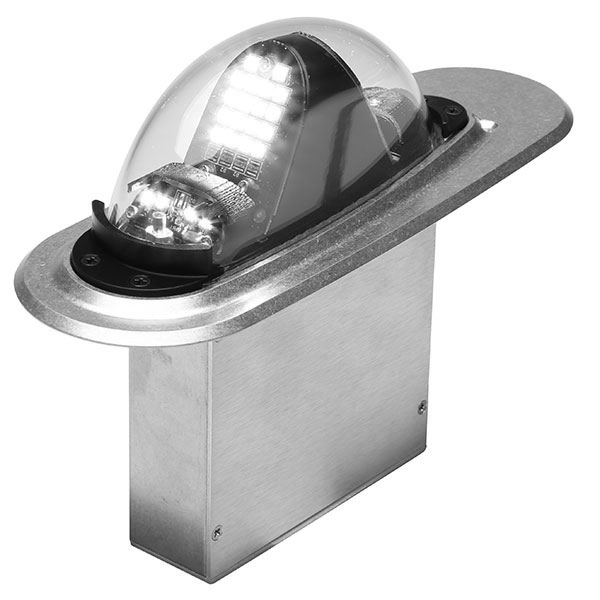

Whelen 90613 Series Wingtip & Anti-Collision - LH Red.

90613 is a self-contained LED wingtip light head assembly utilized for Cessna Caravans. The unit complies with TSO-C96a Class II (400 ECP) anti-collision light requirements and TSO-C30c forward / rear position light requirements. Model 9061391/ 92 is a direct mechanical replacement, same fit / form / function for the legacy Caravan wingtip lights. Currently, these assemblies are TSO approved with STC PENDING.

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Model #: 9061392
  • Dimensions: 7.40 Long x 5.33" Wide
  • Exposed Height: 2.63" (66mm)
  • LED Position Light: 0.23 Amps
  • LED Anti-Collision Light (Avg.): 0.73 Amos
  • LED Anti-Collision Light (Pulse @ .25 Sec.): 3.9 Amps
  • Flashrate: 45 ± 5 / min.
  • Nominal Operational Voltage: 28 VDC
  • TSO: Approved
  • STC: Pending
