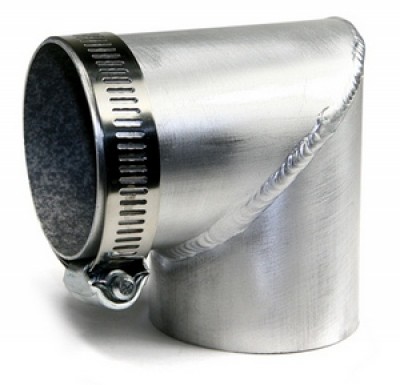

|This unit is designed to slide over the end of the 2” O.D. tube protruding from a cabin heat box that extends through the firewall. The short end of this unit is expanded to 2” I.D. One stainless steel clamp is furnished with the unit. If you use scat tube, the 90° angle allows you to run the scat tube parallel to the firewall and away from undesirable areas (brake pedals, etc.) Constructed of seamless 6061T4 .028 wall tube. Weight: 1.4 oz.|
A great little device to connect SCAT tubing to muffler for heat.
Used this on my RV-7 with a Vetterman Exhaust system & 2-pipe heater muff. One of the SCAT hoses was rubbing up against the engine mounts...used this tube ell to get it routed in the clear. Had to shorten one side of the ell just a bit for clearance, but this did the trick.
Just what I was looking for.
