Saf-Air Oil Drain Sump Valves

From $26.95 to $149.75

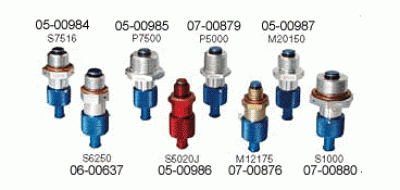

Valves Mfg. No. Engine Application Thread Part Number Price Buy

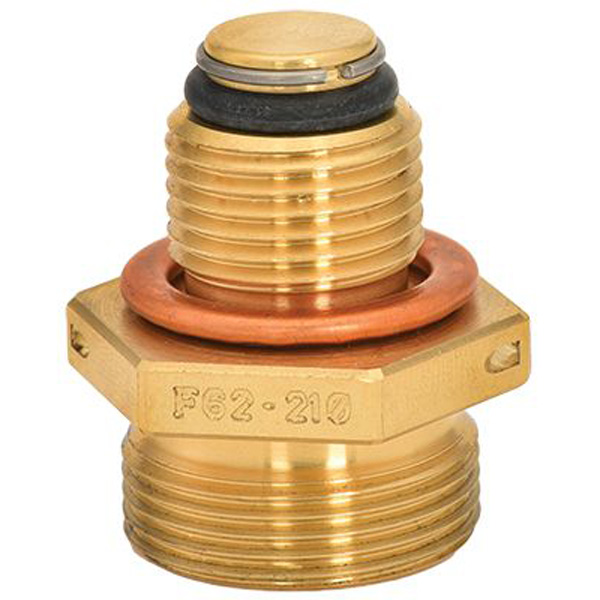

F62Continental5/8-18
05-00981
$149.75
Quantity

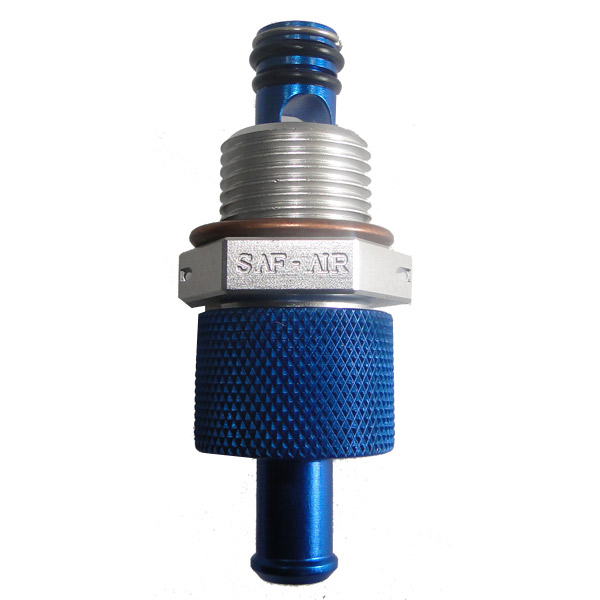

S7516Cont. IO-520-E3/4-16
05-00984
$112.85
Quantity

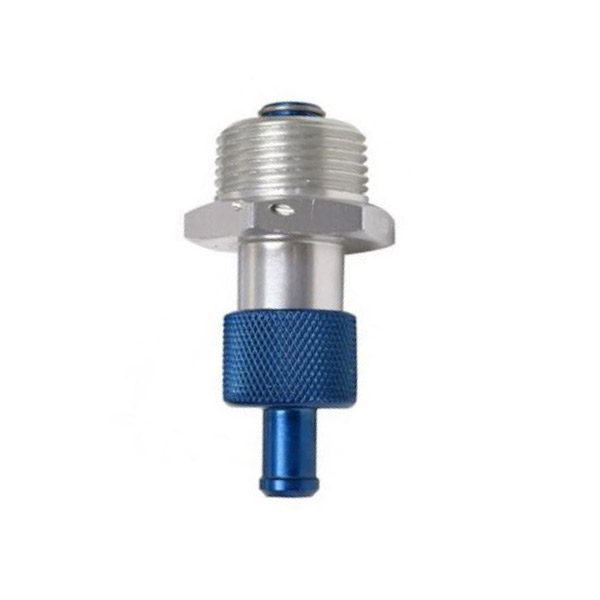

P7500Franklin Engines3/4" NPT
05-00985
$108.75
Quantity
P5000Lyc. (same as Aeroquip AE80664H)1/2 NPT
07-00879
$109.85
Quantity

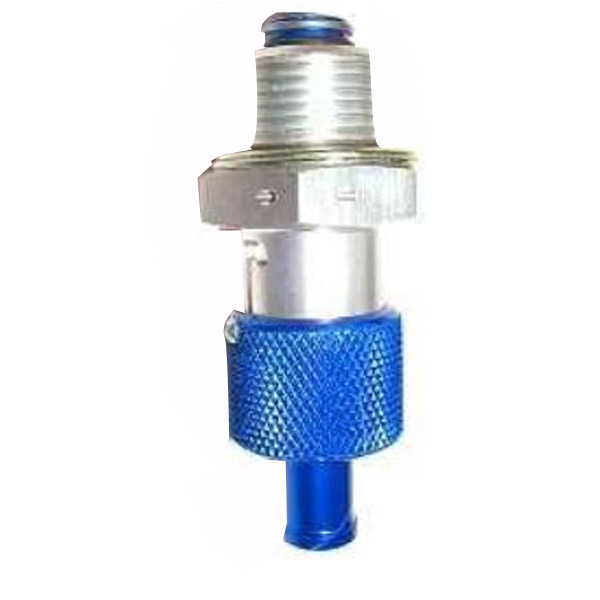

M20150Subaru 2.2L / 2.5L20-1.50mm
05-00987
$56.65
Quantity

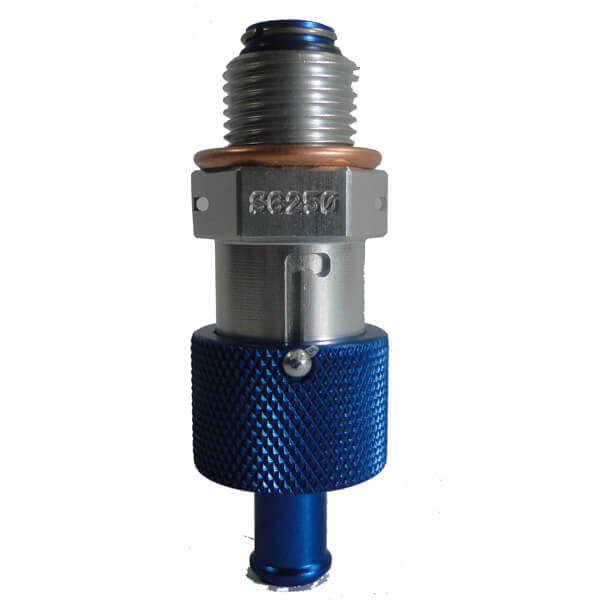

S6250Cont. (same as Aeroquip AE99950G))5/8-18
06-00637
$109.85
Quantity

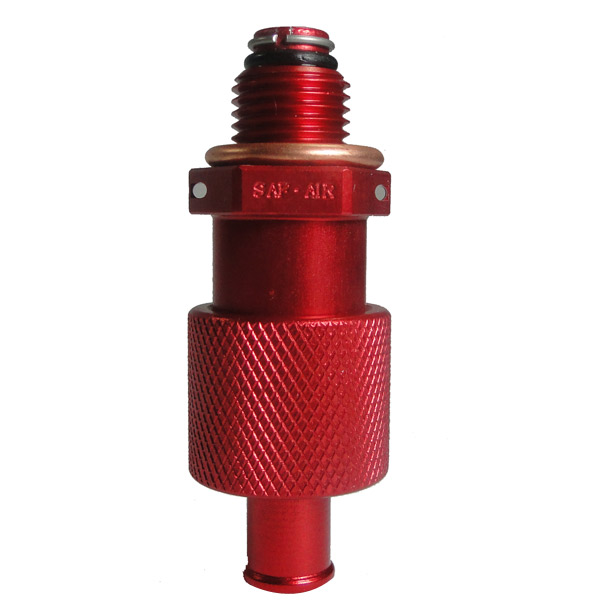

S5020JJabiru 2200 / 33001/2"-20
05-00986
$51.75
Quantity

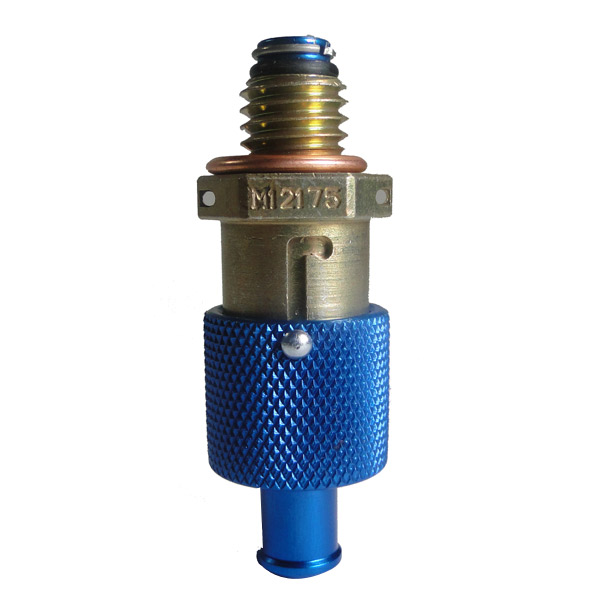

M12175Rotax 912 / 914*12mm x 1.75
07-00876
$51.75
Quantity

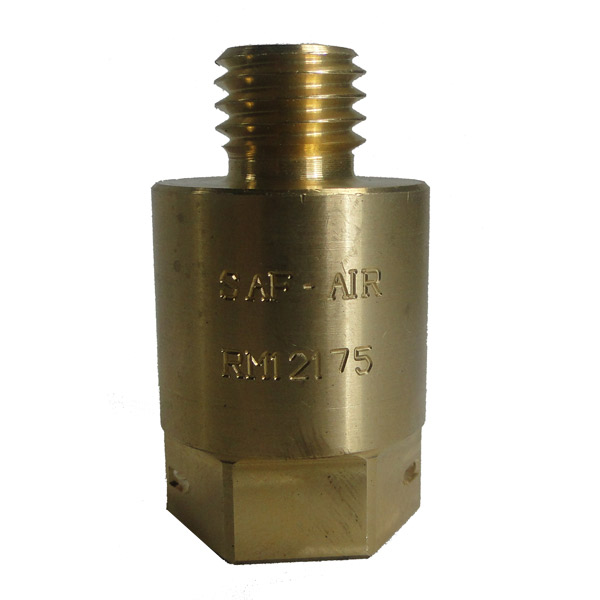

RM12175Rotax 912 / 914 Adapter - for M12175
*Must be used with late model Rotax oil sumps
12mm x 1.75
05-14683
$26.95
Quantity

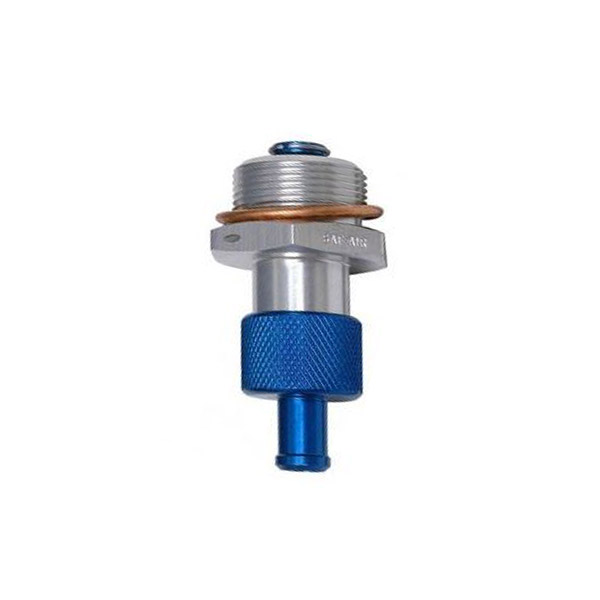

S1000Cont. (same as Aeroquip AE80666H)1-18
07-00880
$108.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

LOCK OPEN OIL DRAIN VALVES
Changing hot engine oil has never been easier! With the SAF-AIR oil drain valve, no wrench is needed to remove the drain plug. A simple push and turn of the SAF-AIR valve locks it in the open position. The valve is made completely from anodized aluminum and stainless steel components. These materials are used throughout the aircraft industry due to their strength and durability. FAA & PMA APPROVED.

Product Notes:
  1. NEVER fly the aircraft with the drain hose attached to the oil drain valve.
  2. Make sure that your landing gear will not activate the oil drain valve when you retract the gear inside the fuselage.
  3. Remember, the valve may fit on your engine, but it is your responsibility to make sure that the valve will work with your application.
Download the Application Chart in PDF.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Push and turn to lock open
  • Effortless operation with a sure-grip knob
  • Double-sealed to prevent leakage
  • All valves can be rebuilt

Specifications

  • MATERIAL: 6061 aluminum and 302 stainless steel
  • FINISH: Anodized
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: Seal kits available

O-Ring Replacement

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Modification made to add a 90deg fitting to fit 2005 RANS S-7 without hitting the muffler.

Eugene S Verified Purchase

Saf-Air Oil Drain Valve M12175

November 19, 2024

Great addition to our 7AC Default on all our aircraft

James M Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

November 12, 2024

quality quick drain that works great

Robert B Verified Purchase

Saf-Air Oil Drain Valve P5000, 1/2-14 NPT

November 2, 2024

Works perfectly - much cleaner and more reliable than the old drain.

Louis R Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

October 30, 2024

This is the only quick-drain plug I’ve seen since 1977. It’s replacing a post-war variant that finally failed after 78 years. I imagine it will last at least that long. Well built, easy to install, easy to use.

Rob B Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

September 21, 2024

Pilot I Verified Purchase

Saf-Air Oil Drain Valve P5000, 1/2-14 NPT

September 18, 2024

This will not be installed until my next oil change. However, it seems to be beautifully engineered and solid. I would rather have paid a bit less, as it seems expensive to me, but I believe in the long run, it will be worth it.

Ronald M Verified Purchase

Saf-Air Oil Drain Valve S7516, 3/4-16

July 18, 2024

5/8 -18 p/n 06-00637 is the correct drain for Cessna 150 equipped 0-200A engine. I prefer this drain over others as the drain hose slips right on to the fitting, no need to keep a release decent in the glove box or tool box, all self contained, nice product, came with copper gasket.

Quinn P Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

July 12, 2024

Super easy to install. Crush washer included along with a small packet of anti seize. Design has two rubber gaskets. They seem easy enough to replace when they wear out. Design has holes for safety wires. .032 is too thick so get the .025.

Kevin H Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

June 25, 2024

Nice built unit. Cessna 182P required spacer between throttle attachment to carburetor throttle arm to keep throttle cable from hitting lower part of oil drain tube at full throttle.

Kevin A Verified Purchase

Saf-Air Oil Drain Valve S6250, 5/8-18

May 21, 2024

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What SAF-AIR size /type /P.N. of lockopen oil drain valve would be needed for a Cont. TSIO-360FB engine?

Per the Application Chart in the "Overview" tab of this web page, the recommened oil drain valve for the TSIO-360FB engine is S6250 (our part number 06-00637). We recommend you always check your currenlty installed valve to verify correct replacement.

Q: What is the o ring replacement number for the P5000?

2 each of AN6227B-6 and 1 each of AN6227B-7 are the replacement o-rings for the valve.

Q: What is the o-ring replacement number for mfr number S6250 (PN 06-00637)?

Drain valve S6250 requires qty 2 AN6227B-6 and qty 1 AN6227B-7 o-rings, and qty 1 AN900-10 copper crush gasket for installation.

Q: Does drain valve Saf-Air P5000 include o-ring for installation or do we have to order it separately?

The P5000 has o-rings installed at the factory, and has 1/2"NPT threads to install in the sump. No other o-rings are required for a new installation.

Q: How do I know if I have the late model Rotax oil tank? I just am not sure if I need the adaptor you have listed.

If the engine was produced after mid 2015 it will have the late model tank.

Q: What is the total length of the P5000 oil drain?

Approx 2.625 inches total length.

Q: I have bought the P5000 that I have installed, which fitting do I need to order to connect a flexible tube to this valve?

You will not need a separate fitting as the valve already has a nipple hose connection attached to it.

Q: Do crush washers come with these drain valves? And can you confirm the correct replacement crush washer for the M12175 valve?

It does come with the crush gasket and the replacement would be an AN900-7.

Q: How long is the valve beyond the threads (from where it bottoms out when fully installed to the copper seal) and what is the diameter of the widest part? - S6250.

This measures 2" from top of the nut to the end of the nipple. The widest part of this unit is 15/16".

Q: I have a S5020J, what are the replacement o-rings?

This would take qty: 1 of P/N# 04-03836.
