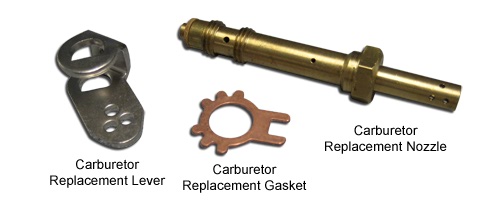

Replacement Parts For Marvel-Schebler Aircraft Carburetors
| Mfg. Ref. | Description | PN | Price | Buy |
|---|---|---|---|---|
| 16-A39 | Gasket | 08-06627 | $4.35 | |
| 16-A42 | Gasket | 08-06628 | $3.50 | |
| 16-A48 | Gasket | 08-06629 | $5.80 | |
| 16-A56 | Gasket | 08-06630 | $15.95 | |
| 16-B44 | Gasket | 08-06635 | $5.80 | |
| 16-B45 | Gasket | 08-06636 | $3.50 | |
| 16-B85 | Gasket | 08-06641 | $4.35 | |
| 17-372 | Rod | 08-06649 | $26.85 | |
| 17-383 | Rod | 08-06650 | $26.85 | |
| 194-580 | Pump Plunger | 08-06938 | $131.75 | |
| 194-591 | Pump Plunger | 08-06939 | $126.85 | |
| 194-593 | Pump Plunger | 08-06940 | $123.65 | |
| 194-605 | Pump Plunger | 08-06941 | $127.75 | |
| 233-614 | Valve & Seat | 08-06971 | $115.75 | |
| 233-615 | Float Valve | 08-06972 | $98.75 | |
| 24-262 | Spring | 08-06651 | $2.85 | |
| 24-A10 | Spring | 08-06655 | $4.35 | |
| 24-A115 | Spring | 08-06656 | $4.25 | |
| 24-A30 | Spring | 08-06659 | $3.95 | |
| 24-A33 | Spring | 08-06660 | $4.95 | |
| 29-182 | Clip | 08-06669 | $16.60 | |
| 32-32 | Shaft | 08-06675 | $23.50 | |
| 32-35 | Shaft | 08-06676 | $19.80 | |
| 34-72 | Valve | 08-06679 | $17.90 | |
| 34-91 | Valve | 08-06680 | $14.50 | |
| 44-220 | Packing O-Ring | 08-06696 | $8.50 | |
| 44-223 | Packing O-Ring | 08-06699 | $7.90 | |
| 44-224 | Packing O-Ring | 08-06701 | $7.50 | |
| 44-49 | Packing O-Ring | 08-06695 | $17.50 | |
| 60-260 | Bushing | 08-06821 | $17.85 | |
| 60-A160 | Bushing | 08-06824 | $26.50 | |
| 778-1003 | Throttle | 08-06535 | $206.95 | |
| 778-1004 | Throttle | 08-06536 | $158.75 | |
| 15-483 | Screw | 08-06590 | $2.15 | |
| 15-58 | Screw | 08-06585 | $2.35 | |
| 15-A23 | Screw | 08-06598 | $2.35 | |
| 15-B108 | Screw | 08-06609 | $3.95 | |
| 15-B109 | Screw | 08-06610 | $3.95 | |
| 15-B98 | Screw | 08-06607 | $5.95 | |
| 16-222 | Gasket | 08-06617 | $8.55 | |
| 16-224 | Gasket | 08-06619 | $3.75 | |
| 16-625 | Gasket | 08-06413 | $94.75 | |
| 16-646 | Gasket | 08-06415 | $97.75 | |
| 16-653 | Gasket | 08-06416 | $49.60 | |
| 16-676 | Gasket | 08-06417 | $48.80 | |
| 16-696 | Gasket | 08-06419 | $48.80 | |
| 16-713 | Gasket | 08-06422 | $38.90 | |
| 16-735 | Gasket | 08-06425 | $38.90 | |
| 16-A107 | Gasket | 08-06631 | $3.50 | |
| 16-A108 | Gasket | 08-06632 | $3.65 | |
| 16-A16 | Gasket | 08-06621 | $3.65 | |
| 16-A28 | Gasket | 08-06622 | $3.65 | |
| 16-A30 | Gasket | 08-06623 | $4.70 | |
| 16-A31 | Gasket | 08-06624 | $6.50 | |
| 16-A32 | Gasket | 08-06625 | $3.90 | |
| 16-A36 | Gasket | 08-06626 | $5.35 | |
| 82-1 | Cotter Pin | 08-06878 | $1.30 | |
| 82-11 | Cotter Pin | 08-06880 | $1.35 | |
| 82-14 | Cotter Pin | 08-06881 | $1.35 | |
| 99-44 | Plug | 08-06896 | $10.50 | |
| 47-851-F | Nozzle | 08-13827 | $148.75 | |
| 47-852 | Nozzle | 08-06771 | $209.95 | |
| 778-1005 | Throttle Shaft | 08-06537 | $193.75 | |
| 778-1006 | Throttle Shaft | 08-06538 | $195.75 | |
| 778-1008 | Throttle Shaft | 08-06540 | $197.99 | |
| 78-121 | Washer | 08-06842 | $2.75 | |
| 78-388 | Washer | 08-06847 | $1.46 | |
| 78-A109 | Washer | 08-06853 | $3.85 | |
| 78-A110 | Washer | 08-06854 | $3.85 | |
| 78-A111 | Washer | 08-06855 | $3.95 | |
| 78-A40 | Washer | 08-06851 | $2.55 | |
| 78-A97 | Washer | 08-06852 | $3.75 | |
| 81-311 | Nut | 08-06877 | $4.60 | |
| 13-1519 | Throttle Shaft | 08-06568 | $210.95 | |
| 13-1520 | Throttle Shaft | 08-06569 | $184.75 | |
| 13-1521 | Throttle Shaft | 08-06570 | $167.75 | |
| 13-1522 | Throttle Shaft | 08-06571 | $203.95 | |
| 13-1523 | Throttle Shaft | 08-06572 | $196.75 | |
| 13-1531 | Throttle Shaft | 08-06575 | $199.85 | |
| 13-1533 | Throttle Shaft | 08-06576 | $234.95 | |
| 155-226 | Lever | 08-06912 | $17.85 | |
| 155-307 | Lever | 08-06914 | $35.50 | |
| 15-126 | Screw | 08-06587 | $5.95 | |
| 43-648 | Needle | 08-06691 | $37.50 | |
| 43-564 | Needle | 08-06690 | $66.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
| These replacement parts are manufactured by Marvel Schebler and intended for use with a Marvel Schebler carburetor. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Verified Purchase
194-580 MARVEL SCHEBLER PUMP PLUNGER ASSY
Parts as described, ordered on Friday picked up on Monday,
Verified Purchase
16-676 MARVEL SCHEBLER GASKET KIT
Verified Purchase
82-11 MARVEL SCHEBLER COTTER PIN
Verified Purchase
16-A16 MARVEL SCHEBLER GASKET
Verified Purchase
194-593 MARVEL SCHEBLER PUMP PLUNGER ASSY
Fits perfect.
Verified Purchase
16-A36 MARVEL SCHEBLER GASKET
As I hoped, good deal Aircraft Spruce!
Verified Purchase
78-A110 MARVEL SCHEBLER WASHER
Verified Purchase
16-B85 MARVEL SCHEBLER GASKET
Just what I wanted
Verified Purchase
16-A36 MARVEL SCHEBLER GASKET
Items in kit include what was needed for carburetor rebuild. Would like to suggest a parts list be included with kit.
Verified Purchase
16-676 MARVEL SCHEBLER GASKET KIT
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
ID is .56" and the OD is .81".
The gasket kit contains the following:
- 16-A16 strainer vent gasket
- 16-A30 nozzle gasket
- 16-A31 body to bowl gasket
- 16-A32 float seat gasket
- 16-A39 idle adjusting needle retainer gasket
- 16-A42 power jet gasket
- 16-A48 fuel inlet strainer gasket
- 16-A56 air metering pin plug
- 16-B44 pump idler screw gasket
- 44-223 o ring
- 44-224 o ring
