Kelly Aero Deluxe Repair Kit for ES Magnetos and Slick Magnetos
| Description | Where Kit Used | Mag Models Used | PN | Price | Buy |
|---|---|---|---|---|---|
| ES401 Kit | All IC or DD 4cyl. Magnetos | 4301, 4302, 4303, 4309, 4316, 4330, 4331, 4333, 4370, 4371, 4372, 4373, 4374, 4381, 4392 | 07-26896 | $957.00 | |
| ES402 Kit | All IC RB or TD 4cyl. Magnetos Excluding 4342 & 4344 | 4310, 4345, 4347, 4348, 4353, 4354 | 07-26897 | $912.00 | |
| ES403 Kit | 4342 & 4344 TD 4cyl. Magnetos | 4342, 4344 | 07-26898 | $957.00 | |
| ES601 Kit | All 6cyl. IC & DD Magnetos with small shaft | 6310, 6313, 6314, 6320, 6324, 6362, 6364, 6367, 6377, 6379, 6380, 6382, 6399 | 07-26899 | $912.00 | |
| ES602 Kit | All 6cyl. RB Magnetos with small shaft | 6309 | 07-26900 | $957.00 | |
| ES603 Kit | 6390 | 6390 | 07-26901 | $957.00 | |
| ES604 Kit | All 6cyl. IC & DD Magnetos with large shaft | 6331, 6340, 6350, 6351, 6355, 6360, 6361 | 07-26902 | $957.00 | |
| ES605 Kit | All 6cyl. RB & TD Magnetos with large shaft except 6390 | 6363, 6365, 6371, 6391, 6393, 6394 | 07-26903 | $957.00 |
- JUMP TO
- Overview
- In The Box
- Reviews
- Q&A
- View in Catalog
Overview
|
Kelly Aero Deluxe Repair Kit for Slick Magentos
FAA/PMA approved Kelly Aero ES Magneto and Slick Magneto 500 Hour Inspection and Maintenance Kits. Kelly Aero has made 500 Hour magneto inspections and maintenance easier and better than ever with our performance improvements on our PMA approved components, including the coil, capacitor, breaker points, and impulse coupling. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |

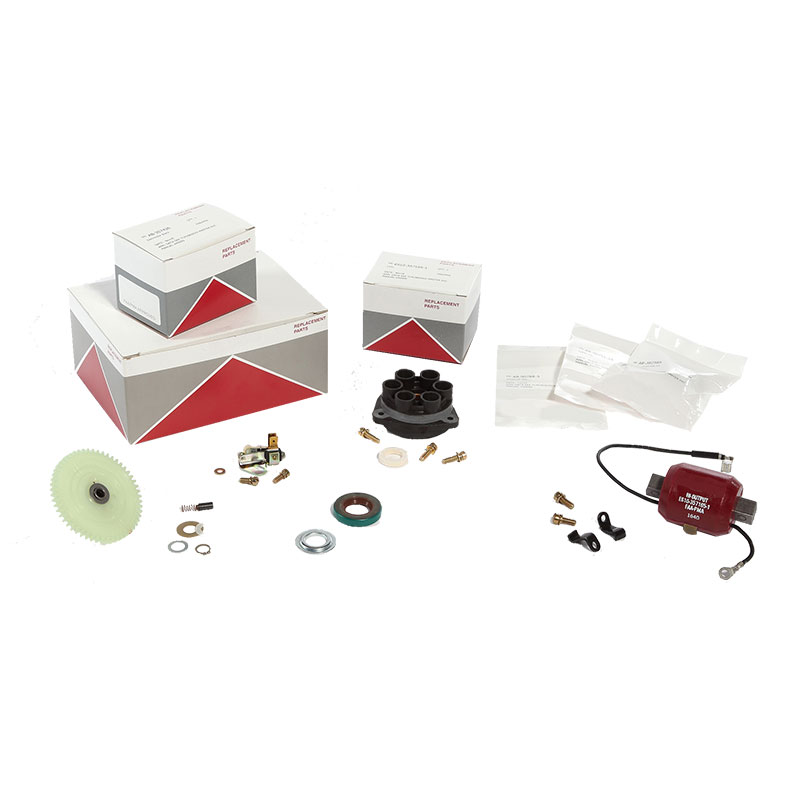

In The Box
- Contact Point Kits
- Double Sealed Bearing
- Bearing Cap Assembly
- Condenser
- Rotor Gear
- Cotter Pin
- Coil
- Distributer Block and Gear
- Woodruff Key
- Oil Seal
- Washer
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These kits are priced and sold for 1 magneto.
This kit will come with an 8130 form.
