Casper Labs No Spill Oil Filter Housing

From $379.00 to $447.95
Description PN Price Buy
CL1000A-STC Oil Filter Housing Kit with CH48109-1 Filter
08-01237
$447.95
Quantity
CL1000A-STC Oil Filter Housing Kit with CH48108-1 Filter
08-01236
$442.95
Quantity
CL1000A-STC Adapter ONLY for Retrofit Lycoming Engine Models: 0-235, 0-290, (O, GO, GSO -425), (IGO, IGSO -480), (O, IO, HIO, TIO, AEIO, LTIO -540), IO-720 (O, IO, LIO, AIO, AEIO, -320), (O, IO, LIO, HO, HIO, TIO, AIO, AEIO -360) with 2/MAG & 2 Drive ONLY
08-01094
$395.00
Quantity
CL1000A-EXP (EXPERIMENTAL)
Oil Filter Housing Kit with CH48109-1 Filter
08-00977
$431.95
Quantity
CL1000A-EXP (EXPERIMENTAL)
Oil Filter Housing Kit with CH48108-1 Filter
08-00976
$426.95
Quantity
CL1000A-EXP (EXPERIMENTAL)
Adapter and Gasket Kit ONLY (No Oil Filter Included)
08-00975
$379.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

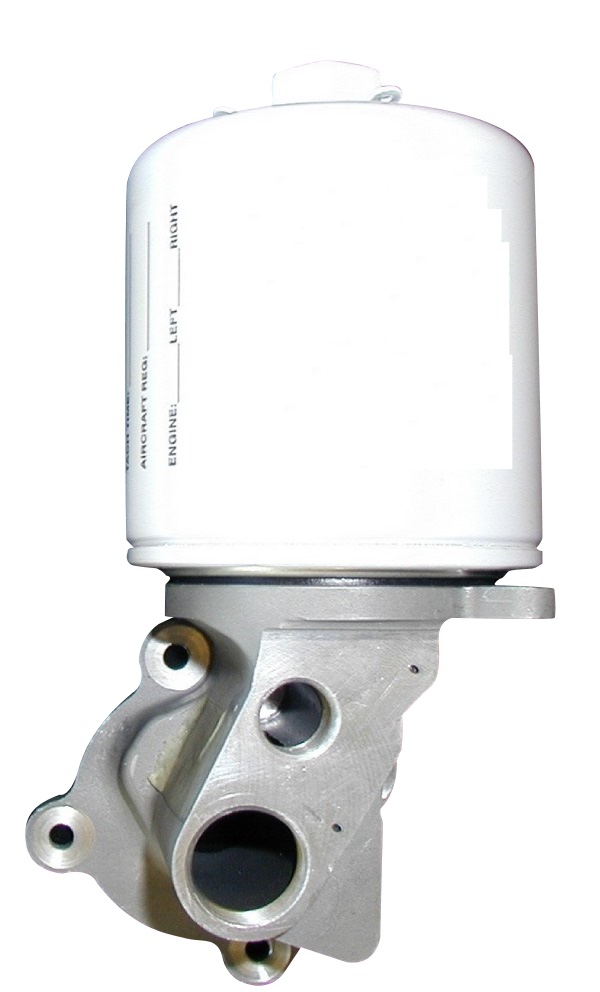

The Casper Labs "full flow" vertical oil filter kit is designed to provide Lycoming Engine owners several improvements over the standard Lycoming oil screen or filter hardware. This device locates the filter in the vertical plane for two unique advantages.
    1) The filter is in "free" space, permitting installation with tight engine to firewall clearance (that would otherwise be limited to an oil screen).

    2) The filter is easily accessible without contortions or broken knuckles.

    3) When it is time for filter changes, a prick punch in the top of the filter allows oil to drain back to the sump such that none is spilled during removal. No accessory case, lower cowl, or nose gear cleanup is required after filter removal.
The unit has no moving parts and requires no maintenance. Standard aviation filters are compatible. The oil filter fits most every Lycoming engine with two separate magnitos and can be installed with a quarter inch drive ratchet, two box end wrenches, and a pair of pliers for safety wire. Temperature probe hardware transfers directly from the present screen housing or OEM filter adapter. Installation is strictly "bolt on" as no interference exists with standard engine accessories (including vacuum pad drive alternators) and baffling. A robust and accessible anchor for filter safety wire makes securing an easy task.

Note: Verify the adapter and filter fit in the engine compartment before bolting the unit on to the case.

Kits Include:

  • Filter (some kits do NOT include a filter: see descriptions for details)
  • Housing
  • O-Ring and Washers, seal rings, gasket & installation manual
NOTE: Due to a five point engine hard mount being used on all Metal Fuselage Piper Single or Twin engine aircraft the Casper Labs oil filter adapter *** CAN NOT BE INSTALLED due to top center tube interference *** Only exception is the metal fuselage Piper PA-38 Tomahawk which uses a four point engine hard mount (see O-235 note below).

* Lycoming O-235 series engines may require an orifice plate in addition to the basic kit due to two different styles (Early or Late) configuration accessory housings as well as with/without the optional oil cooler. Check with Casper Labs for your specific application before ordering.

** This unit should fit all fabric fuselage Piper aircraft with a Lycoming listed engine (since they use a four point mount) unless previous modifications may cause interference.

*** Grumman AA-5B Tiger (Lycoming 180 HP) aircraft the Casper Labs oil filter adapter *** CAN NOT BE INSTALLED due to interference ***

This unit should work on all other models of Grumman aircraft with a Lycoming listed engine unless previous modifications may cause interference.

When in doubt, please contact product support for assistance.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

**********

Frank A Verified Purchase

Casper Labs CL1000A-Exp Oil Fltr Hsg For CH48108-1

June 28, 2024

Great Product! Did not fit on my Lycoming O-290-D2 engine because of the 5 point engine mount (on the firewall) that I have. I highly recommend getting a hold of the infamous Bill at the Lab and having him work through your model to make sure its applicable if its a weird one like mine was. Basic rules are no 5 point engine mounts, 45 degree angled oil cooler line, and a spacer depending on your accessory case setup. Wish it would have fit for the benefit of a pleated filter instead of a screen but oh well.

The F
August 20, 2022

Bill @ Casper Labs was very helpful, I had and issue with my OP gauge probe. His direction got me through it - Thanks Bill

Mark G Verified Purchase

Casper Labs CL1000A-Exp Adapter Only

July 18, 2022

Part selection criteria online and catalog raises more questions than answers. quick call to Casper Labs cleared it up, supposed to be new numbering system coming soon.

Andy K Verified Purchase

Casper Labs CL1000A-STC Adapter Only

March 10, 2022

Steve A Verified Purchase

Casper Labs CL1000A-STC Adapter Only

February 8, 2022

Excellent

Christian L Verified Purchase

Casper Labs CL1000A-Exp Oil Fltr Hsg For CH48108-1

September 11, 2021

Great adapter. Call Bill at Casper Labs before you order. He is extremely knowledgeable about his products and knows exactly what you need to install it. I have a 65 year old airplane that has seen a lot of changes and Bill knew exactly what to look out for. Aircraft Spruce carries more parts for the Casper Labs Oil Filter Adapter than are listed above. Call Bill (great guy) (561-575-3157) before you order the wrong stuff, hell give you all the part numbers for your specific application.

Dan
May 18, 2021

Very nicely machined part, nice fit and easy to install. You will need an AN823-8 elbow fitting for the oil cooler hose, this is in the instructions. If you position the elbow down and inboard the hose will just clear the magneto and the adaptor and the filter, it is close but they dont touch and dont interfere. Filter change is much easier than with the OEM adaptor.

Nw A
April 20, 2021

Works great!

Todd T
January 21, 2021

Well made and designed.

Dave
April 1, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between part numbers 08-01237 and 08-01236?

The only difference is that 08-01237 comes with a Champion CH48109-1 Oil Filter and 08-01234 comes with a Champion CH481081 Oil Filter. The STCd Adapter is the same for both kits.

Q: What is the adapter of this Casper Labs oil filter housing made of? Is it machined or cast?

The adapter is made of aluminum and it is a cast part.

Q: 08-00976, casper labs filter housing: What is the height above the engine of the filter? B&C 08-00196, spec's this as 1.75 inches

Per the supplier: With a CH48108-1 filter, the top will be virtually even with the top of the crankcase split line just forward of the accessory case.

Q: Does the Casper Labs No Spill Oil Filter Housing come with a new accessory case gasket?

Per the supplier: Yes, it has a small parts kit included with all the seals / gaskets required for a standard installation. The gasket is unique to the Casper Labs housing.

Q: Pls confirm the Casper labs Oil filter conversion covers PA18-150. Is there a copy of the STC and installation documentation on-line? thanks and regards Tim

Per the supplier: The filter kit fits the PA-18, minor add'l small parts may be needed depending on configuration. The 0-320 is listed on the STC's approved model list. We have fitted hundreds of these PA-18's. The STC (SE01930NY) is available (unsigned) on FAA.gov. The installation manual is available for $6.50 by priority mail. No electronic copies are available.

Q: Does the Casper Labs STCd Adaptor fit the stock Super Cubs split Oil/Temp gauge Temperature bulb sensor -or is an adaptor required? (please answer this Question in the online Q+A for the benefit of other Cub owners. Thanks!)

Per Casper Labs: the standard dual oil pressure/temperature gauge in the Piper Cubs requires an adapter P/N# 95527. If the gauge was overhauled at some point, it was properly refitted with different end fittings (shorter). These require a different adapter. These would be available only through Casper Labs direct.

Q: Whats the difference between 08-00977 and 08-00976?

The only difference is the filter that is included with the shipment. 08-00977 includes a Champion CH48109-1 oil filter and 08-00976 includes a Champion CH48108-1 oil filter.

Q: Does part # 08-01094 include all gaskets, fittings & oil filter for an IO-360? If not, what items would I need to complete the oil filter housing change including filter?

Per Vendor: The kit includes all gaskets, seals, and washers for a basic installation. Since the kit fits 8 different engine sizes, more than 100 different aircraft applications, and 60 years of engine production configurations,......there are no guarantees the basic kit will be enough. We encourage buyers to contact before purchase to dialogue the specific nature of their application. We stock an extensive list of small parts to complete every configuration we are aware of.

Q: How do I know which filter to buy CH48108-1 or CH48109-1 ? I have a Lycoming O-360-A1A installed in a Cessna Skyhawk (180hp Conversion).

It may call for a certain one on the conversion STC, but they are basically the same filter but the CH48109-1 is just a little longer. You must verify the currently installed filter model to ensure ordering the correct replacement.

Q: What veratherm is required?

Lycoming has used only one Vernatherm valve across all engine sizes over the years. It is p/n 75944. They call it an oil cooler bypass valve.
