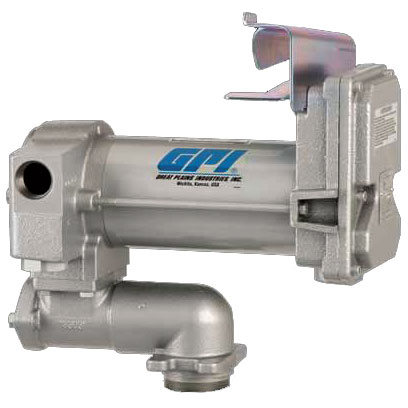

Gpi Refueling Pump M-3025Cb-AV-Po

$813.00/Each
Quantity
Add to Wishlist
Part# 08-07464
MFR Model# 170000-01

Overview

GPI REFUELING PUMP:
  • 12-Volt
  • 25 GPM / 95 LPM
  • Motor is U.L. Listed to U.S. and Canadian Standards
  • Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

  • These pumps are only intended to be ground based or vehicle mounted. Do not use or mount in or on aircraft, may be used with aviation fuel.

    California Prop 65 Warning Symbol

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Specifications

    • REFUELING PUMP M-3120-AV-PO
    • Model: M-3025CB-AV-PO
    • Voltage & Type: 12-Volt DC- Vane
    • Flowrate: 25 gpm, 95 lpm
    • Duty Cycle: 30 minutes on / 30 minutes off
    • Nozzle : None
    • Inlet/Outlet Size: 1 in. / 1 in.
    • Suction Pipe: None
    • Hose: None
    • Motor Protection: 40 amp circuit breaker
    • Bypass Pressure: 20 psi 1.4 bar
    • Current Draw: 35 amps
    • Suction Lift: 15 ft. 4.6 m
    • Unique Feature: External switch cover plate allows for easy access and keeps the UL rating intact.
    • Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).
    • Approvals : Motor is U.L. Listed to U.S. and Canadian Standards.
    • Mfg Warranty: 2 Year
