Home / Engine Parts / Fuel Pumps / Fuel Transfer Pumps & Tanks /GPI Refueling Pump M-150S-PO
Main Image

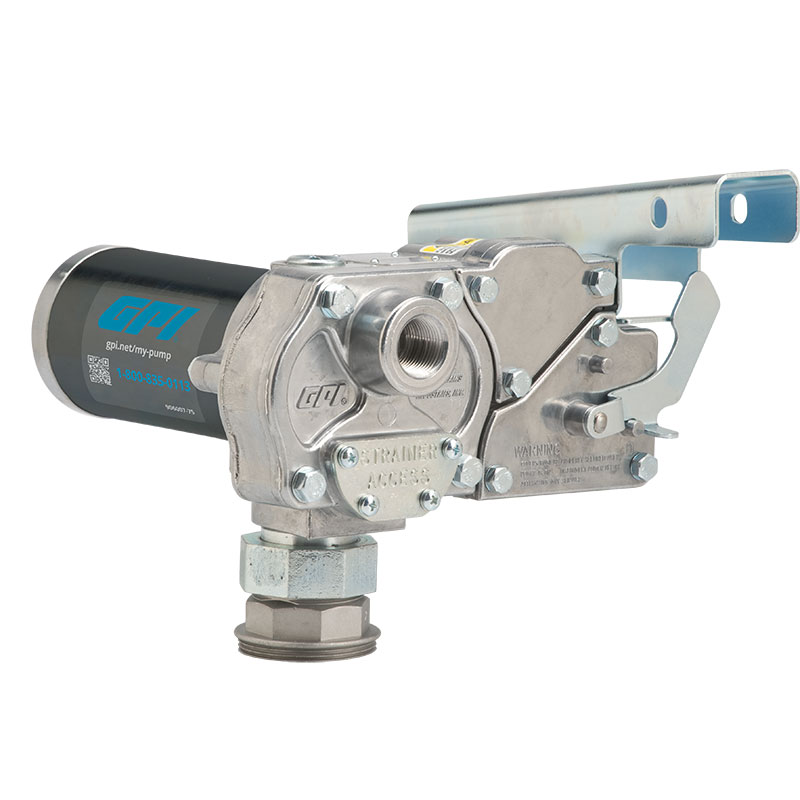

GPI Refueling Pump M-150S-PO

0 Reviews 2 Answered Questions
$378.00/Each
Quantity
Add to Wishlist
Part# 08-07463
MFR Model# 110000-103

Overview

GPI REFUELING PUMP:
  • 12-Volt
  • 15 GPM / 57 LPM
  • Motor is U.L. Listed to U.S. and Canadian Standards
  • Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

    • For use with gasoline blends (up to E15), diesel fuel blends (up to B20), kerosene. aviation gasoline (AVGAS 100LL) and kerosene grade (Jet A).

    PUMP MODELS THAT MAY BE USED IN AVIATION REFUELING (PO/PX MODELS) ARE NOT SUPPLIED WITH APPROPRIATE HOSE, NOZZLE, AND SUCTION PIPE. THESE ITEMS MUST MEET NFPA 407 GUIDELINES. For ground-based refueling only. Do not use in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (Jet A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.

    California Prop 65 Warning Symbol

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Specifications

    • Model: M-150S-AV-PO
    • Voltage & Type: 12-Volt DC- Vane
    • Flowrate: 15 GPM, 57 IPM
    • Duty Cycle: 30 minutes on / 30 minutes off
    • Nozzle : None
    • Inlet/Outlet Size: 1 in. / 3/4 in.
    • Suction Pipe: none
    • Hose: None
    • Motor Protection: Circuit breaker
    • Bypass Pressure: 15 psi 1 bar
    • Current Draw: 18 amps
    • Unique Feature : Convenient Spin Collar for easy installation
    • Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).
    • Approvals : Motor is U.L. Listed to U.S. and Canadian Standards.
    • Mfg Warranty: 2 Year
    • Accessories
    • Frequently Purchased With
    • Customers Also Viewed
    • Related Items

    Reviews

    Submit a Review

    Q&A

    Submit

    Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: What is the weight of the M-150S-AV-PO refueling pump?

    The weight of this pump is approximately 17 lbs.

    Q: What is flow rate and pressure for the GPI Aviation Refueling Pump M-150S-AV-PO? I need to pump up a hill. Approx 50 feet elevation.

    Flowrate: 15 GPM, 57 LPM. Bypass Pressure: 15 psi 1 bar
