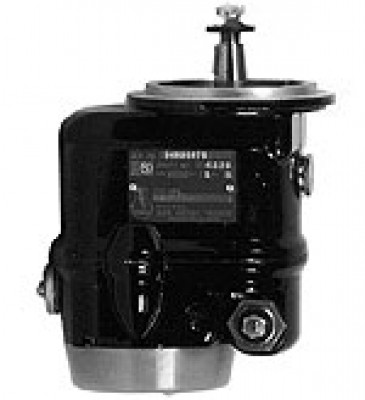

Champion New 6300 Series Slick Magnetos

From $2039.00 to $2553.00
Description Model No. Part Number Price Buy
Slick Magneto 63096309
08-01351
$2039.00
Quantity
Slick Magneto New # 63106310
08-06310
$2416.00
Quantity
6313 Slick Mag6313
08-06313
$2324.00
Quantity
Slick Magneto 63146314
08-06314
$2553.00
Quantity
Slick Magneto # 63206320
08-01353
$2416.00
Quantity
Slick Magneto 63246324
08-06324
$2546.00
Quantity
Slick Magneto 63506350
08-06350
$2190.00 Add to cart for current price
Quantity
Slick Magneto # 63516351
08-06351
$2416.00
Quantity
Slick New Magneto 63556355
08-06355
$2416.00
Quantity
Slick New Magneto 63606360
08-06360
$2190.00 Add to cart for current price
Quantity
Slick Magneto 63616361
08-06361
$2416.00
Quantity
Slick Magneto # 63646364
08-06364
$2416.00
Quantity
Slick Magneto New # 63676367
08-06367
$2471.00
Quantity
Slick Magneto # 63636363
08-01356
$2207.00
Quantity
Slick Magneto # 63716371
08-01358
$2324.00
Quantity
Slick Magneto # 63776377
08-01359
$2546.00
Quantity
Slick Magneto # 63796379
08-01360
$2546.00
Quantity
Slick Magneto #63806380
08-01361
$2521.00
Quantity
Slick New Magneto 63936393
08-06393
$2190.00 Add to cart for current price
Quantity
Slick Magneto # 63946394
08-01365
$2324.00
Quantity
Slick Magneto #63996399
08-01366
$2546.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NOTE: Please remove drive gears before returning Magneto cores for "Core Credit."

These lightweight aircraft magnetos are being used by many new equipment manufacturers. Weigh only 3-3/4 lbs. compared to 6-1/4 lbs. for typical old style magnetos.

In early 1988, Slick discontinued the sale of re-manufactured magnetos to offer new units only.

All units carry a one-year warranty after delivery to the user. These model magnetos are completely rebuild-able. The old 4000/4100 series magnetos and the 600 series magnetos may not be returned as an exchange unit for a new magneto of the same model. Most other Magnetos may be returned for core credit.

Drive gears are not included. *When purchasing slick magneto separately gaskets are not included.

Click link below and find correct harness number for your application.

Champion Slick Harness with 5/8 Plugs Application Guide (PDF)
Champion Slick Harness with 3/4 Plugs Application Guide (PDF)
Full Slick By Champion Application Guide (PDF)



6300 series is a direct replacement for previous 6200 series Magnetos.

All Slick Magneto and harness prices shown are well below Slick Factory list price; we will beat any competitor's "Advertised Price!"
    Slick Harnesses in Custom Colors:
    Slick harnesses come standard in red. Harnesses are available in black on a special order basis.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Guide

* Applications listed in the charts below are the most common. For additional application information please see the complete application pdf above.
6300 SERIES (6-CYLINDER) MAGNETOS
Complete Harness (2 Mags)
Application
(See Note)
Mag- neto*
Rotation & Impulse
New Magneto (Exchng)
Sparkplug Connector
Continental C125***, C145 0-300

6364

L.H. w/ Impulse

M2932
5/8-24
M2935
3/4-20
CALL
Continental GO-300

6367

R.H. w/ Impulse

M2938
5/8-24
---
3/4-20
---
Continental 0-470 (All)

6382

R.H. w/ Impulse

M1878
5/8-24
CALL
M1480
3/4-20
Continental TSIO-470, IO-520

6382

R.H. w/ Impulse

M1878
5/8-24
CALL
M1480
3/4-20
Continental
IO-470 (All)
6382
680 Series

R.H. w/ Impulse

M1878
5/8-24
CALL
M1480
3/4-20
M1990
3/4-20
CALL

6300 Series Replaces 6210 & 6262 magnetos.
Includes new improved case & bearings.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Thanks! Got my magnetos fast, and in perfect condition.

Alex K
July 9, 2020

I have relied in Slick Mags for years in 4 aircraft. Unfortunately this one failed in 4.5 hours of flight time and is totally dead. Thankfully the old one had not been retuned, so it is now back in service. I hope Champion gets on top of their QC quickly. This was test run on a bench at a mag shop and double confirmed as zero spark production. It sounds like a baby rattle inside. I hope the warranty replacement restores my trust in Slick Mags.

Shocked
August 19, 2017

Hey, its a Slick mag. I got 1400 hrs on the ones these are replacing. No failure, just preventative. Only 4 stars because they dont include a gasket. Come on, thats got to cost less than the clamps they do supply. At least tell us its not included so we can order it separately. Every other accessory comes with gaskets but not this. Aarrgghh!

Greg Y
August 11, 2017

Slick Magneto’s are a goid product but when you pay $2k dollars each mag you’d think they’d provide the gaskets that are required for installation or at the very least tell people that it doesn’t come with everything needed for the install.

Aces F Verified Purchase

Slick Magneto # 6364

September 16, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the 6320 come with an impulse coupling?

Yes, P/N# 6320 does come with an impulse coupling.

Q: I just bought two new slick 6351 magnetos from you. I am assuming they come with new impulse couplers as well?

Yes, impulse coupled Slick mags come with the impulse coupling.

Q: Does the 6310 magneto come with an impulse coupling?

All magneto's that are meant to have an impulse coupling will come with an impulse coupling. If they are not meant to have an impulse coupling then it will not come with one. Since the 6310 is impulse coupled is will be included.

Q: Are 6310 and 6360 models interchangeable?

6310 is impulse coupled and 6360 is not. We would need full engine model number from the customer to check the application guide.
