Cessna & Beech FAA / PMA Replacement Mufflers & Exhaust Components
| Image | Description | PN | Price | Buy |
|---|---|---|---|---|
 | Cessna 120 & 140 Exhaust System Includes one left and one right muffler, shroud, tailpipe and clamps. | 05-05279 | $1328.00 | |
 | Cessna 150 Exhaust Systems Includes one left and one right muffler, shroud, tailpipe and clamps. | 05-05280 | $1328.00 | |
 | CESSNA 120, 140, 150 MUFFLER LH | 05-05271 | $445.00 | |
 | CESSNA 120, 140, 150 MUFFLER RH | 05-05272 | $437.00 | |
| -- | CESSNA 120, 140, 150 LH SHROUD W/ 2 2" OUTLETS | 05-05281 | $223.95 | |
| -- | CESSNA 120. 140, 150 RH SHROUD | 05-05282 | $212.95 | |

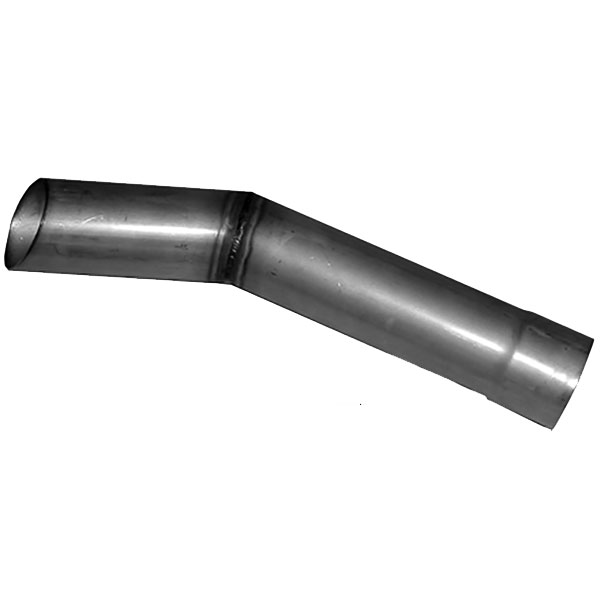

 | CESSNA 150 TAILPIPE, LH | 05-05273 | $117.85 | |

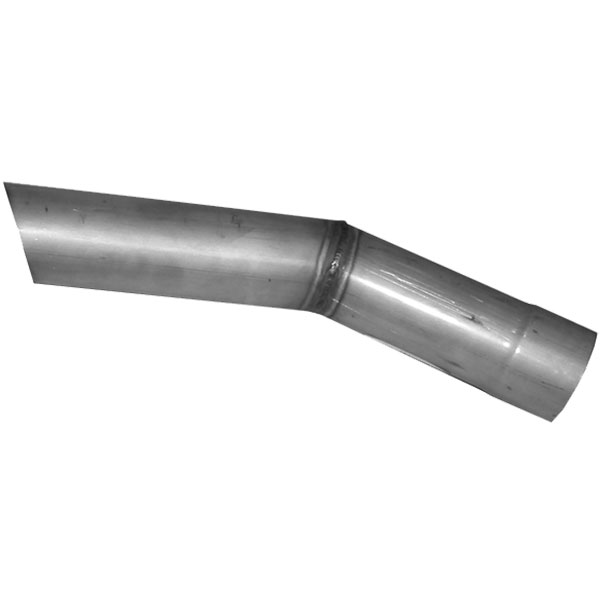

 | CESSNA 150 TAILPIPE RH | 05-05274 | $125.75 | |

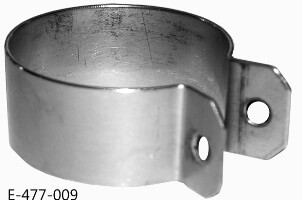

 | MUFFLER TO TAILPIPE CLAMP | 05-05275 | $43.50 | |

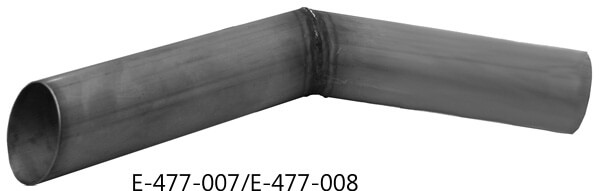

 | CESSNA 120, 140 TAILPIPE, LH | 05-05276 | $116.75 | |
| CESSAN 120, 140 TAILPIPE, RH | 05-05277 | $117.75 | |
 | CESSNA 150 TAILPIPE BRACE CLAMP | 05-05278 | $57.75 | |
| -- | S/S LYCOMING FLANGE | 05-05292 | $5.90 | |
| -- | RISER, #4 CYLINDER | 05-05294 | $52.95 | |
| -- | RISER, #1 CYLINDER | 05-05295 | $46.50 | |
| -- | RISER, #3 CYLINDER | 05-05296 | $46.50 | |
| -- | CLAMP ASSY | 05-05297 | $11.85 | |
| -- | MUFFLER SHROUD | 05-05298 | $363.00 | |
| -- | CESSNA 152 MUFFLER ONLY | 05-05299 | $522.00 | |
 | CESSNA 180 MUFFLER | 05-05262 | $562.00 | |
 | CESSNA EXTENSION TAILPIPE | 05-05269 | $252.95 | |
 | CESSNA 180 TAILPIPE EXTENSION | 05-05270 | $94.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

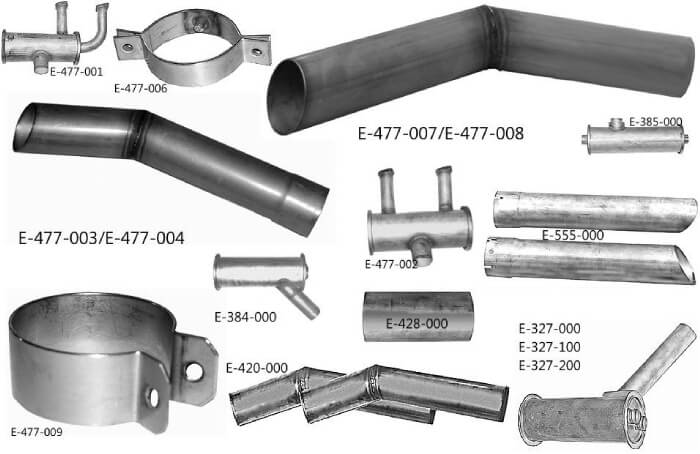

Replacement mufflers & exhaust components for Cessna/Beech Aircraft, all are FAA/PMA approved equivalents.
Cessna 120, 140, 150 Exhaust Systems: Include one left and one right muffler, shroud, tailpipe and clamps. Cessna 120, 140, 150, 150A thru H, J, K, A150K, L & M Muffler Systems: Muffler with attached stacks. Original Cessna 120 & 140 shrouds will not fit the mufflers below. Cessna 152 & 152A STC'D Exhaust System: For Cessna 152 S/N 15279406-15283591; F15201429-F15201673; A1520735-1520878; FA1520337-FA1520357. Ideal for homebuilts using 0-235, L2C, N2C and 0-320 Lycombing Engines. Cessna Tailpipe Extensions: Cessna 150, 170 and early model 172 replaces original exhaust pipe Cessna P/N 0450338-66, 0550157-3 and 055015733. Extends 2" past original tailpipe, 2" OD stainless steel, Bolt-on, End cowling smudges and Reduces cabin noise. |
Reviews
Fit was good. the hole for pin was missing but not a biggie, just drilled out the right size and installed the tailpipe on my Cessna 150G. Good quality product.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The length of the tailpipe is 12-1/2" long and the OD is 2-1/4".
The ID is 1-7/8.
We recommend using stainless 1/4 bolts and all metal lock nuts.
