Deluxe Washer & Cotter Pin Pack

$283.95/Each
Quantity
Add to Wishlist
Part# 04-00300

Overview

P/N 04-00300
2000 Washers, 700 Cotter Pins - 31 Items, individually packaged, with a 26-drawer cabinet included. A combo of flat washers in steel and anodized aluminum, regular and light weight, large-area washers, internal locking type, Tinnerman countersunk washers and six useful sizes of cotter pins.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Kit Includes

WASHERS

Part No. Qty. Size Part No. Qty. Size
Steel, Regular Flat Steel, Large Flat
AN960-6 100 #6 AN970-3 25 3/16"
AN960-8 100 #8 AN970-4 14 1/4"
AN960-10

250

3/16"

AN970-5 11 5/16"
AN960-416 200 1/4"

Steel, Internal Lock

AN960-516 100 5/16" MS35333-37 50 #6

Steel, Light Flat

MS35333-38 50 #8
AN960-6L 100 #6 MS35333-39 50 #10
AN960-8L 100 #8 MS35333-40 50 1/4"
AN960-10L 100 3/16" MS35333-41 50 5/16"
AN960-416L 100 1/4"

Tinnerman Countersunk

AN960-516L 50 5/16" A3236-012-24A 100 #6

Anod. Alum. Regular Flat

A3135-017-24A 100 #8
AN960PD10 50 3/16" A3235-028-24A 100 #10
AN960PD416 50 1/4"

Anod. Alum. Light Flat

AN960PD10L 50 3/16"
AN960PD416L 50 1/4"

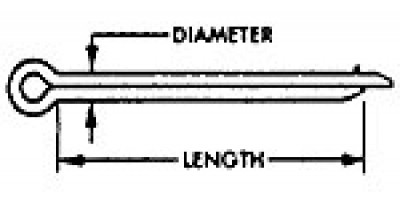

COTTER PINS

MS24665-132 225 1/16" x 1/2"L MS24665-283 50 3/32" x 3/4"L
MS24665-134 200 1/16" x 3/4"L MS24665-285 13 3/32" x 1"L
MS24665-136 200 1/16 x 1"L MS24665-360 12 1/8" x 2"L
