| Size No. Steel |
Size No. Alum |
Tube O.D. |
Thread Size |
Buy Steel | Buy Aluminum |
|---|---|---|---|---|---|
| 2 | 2D | 1/8 | 1/8 | -- | $30.90 |
| 3 | 3D | 3/16 | 1/8 | $23.85 | $15.50 |
| 4 | 4D | 1/4 | 1/8 | $22.80 | $11.95 |
| 4-4 | 4-4D | 1/4 | 1/4 | $24.90 | $17.50 |
| - | 5-4D | 5/16 | 1/4 | -- | $20.50 |
| 5 | 5D | 5/16 | 1/8 | $29.50 | $15.50 |
| 6 | 6D | 3/8 | 1/4 | $33.80 | $17.50 |
| 6-2 | 6-2D | 3/8 | 1/8 | $35.60 | $17.50 |
| 6-6 | 6-6D | 3/8 | 3/8 | $35.50 | $18.75 |
| 8 | 8D | 1/2 | 3/8 | $22.50 | $17.75 |
| 10 | 10D | 5/8 | 1/2 | $132.75 | $21.50 |
| 12 | 12D | 3/4 | 3/4 | -- | $25.60 |
- JUMP TO
- Overview
- Tech Data
- Reviews
- Q&A
- View in Catalog
Overview
|

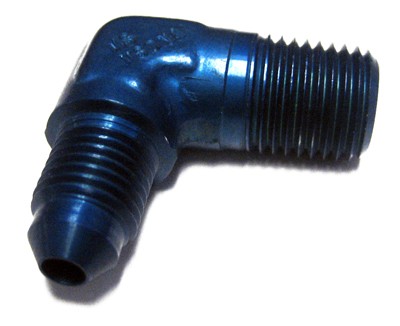

AN822 (MS20822) ELBOW, Flared Tube and Pipe Thread, 90° |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Tech Data
Reviews
Verified Purchase
AN Fitting AN822-6-2D Elbow
Verified Purchase
AN Fitting AN822-8D Elbow
Verified Purchase
AN822-8 Steel Elbow
inventory stash only. Can you ever have too much hardware?
Verified Purchase
AN Fitting AN822-4D Elbow
Perfect fit for -4 fuel flow line (actually fuel psi) attachment AN fitting to the fuel spider on IO550B
Verified Purchase
AN822-4 Steel Elbow
Verified Purchase
AN Fitting AN822-4-4D Elbow
Fuel went in one end and out the other and joy was felt by all that I was able to get my fuel flow transducer installed. Did in one fitting what I otherwise would have had to do three.
Verified Purchase
AN Fitting AN822-5-4D
As advertized
Verified Purchase
AN Fitting AN822-4D Elbow
Standard part. No issues
Verified Purchase
AN Fitting AN822-6-2D Elbow
Verified Purchase
AN Fitting AN822-6D MS20822-6D Elbow
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, please request hardware certs at the time of order. It is available as a check box in the shopping cart.
No, the steel versions listed on this page are carbon steel.
They are all 3/8 on the flare(tube side) but the 6D is 1/4npt the 6-2D is 1/8 npt and the 6-6D is 3/8 npt.
There is no difference as these are the same part.
No, these fittings are anodized.
