TANGS
 |
 |
 |
 |
 |
 |
 |
 |
Reference Chart
| Part No. | OEM PN | No. | Description | Price | Buy | Sub-Total |
| 05-02072 | T2850 | 2 | 2-Hole Flat | $1.35 | ||
| 15-06022 | T2861 | 2 | SS 2-Hole Cable | $2.80 | ||
| 05-02074 | T2866 | 2 | SS 2-Hole Bent | $1.55 | ||
| 05-02077 | T2878 | 3 | 3-Hole Flat | $3.95 | ||
| 05-02078 | T2880 | 3 | 3-Hole Flat | $3.75 | ||
| 05-02079 | T2883 | 3 | 3-Hole Flat | $2.60 | ||
| 05-02080 | T2885 | 3 | 3-Hole Flat | $3.95 | ||
| 05-04371 | T3825 | 5 | SS EYE Bent | $2.75 | ||
Current Total
|
||||||
Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.
or Add to Wishlist to store them for ordering later.

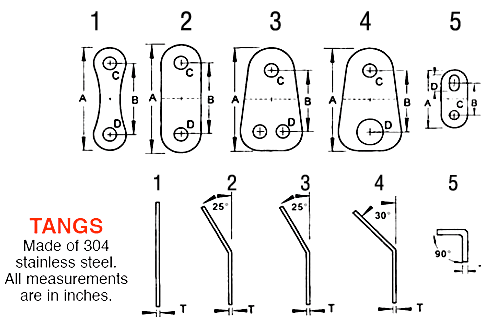

| Made of 304 stainless steel. All measurements are in inches |
| PN | OEM PN | No. | Max Air | Description | T | A | B | C | D |
|---|---|---|---|---|---|---|---|---|---|
| 05-02072 | T2850 | 2 | -- | 2-Hole Flat | 16G | 2.0 | 1.25 | .26 | .26 |

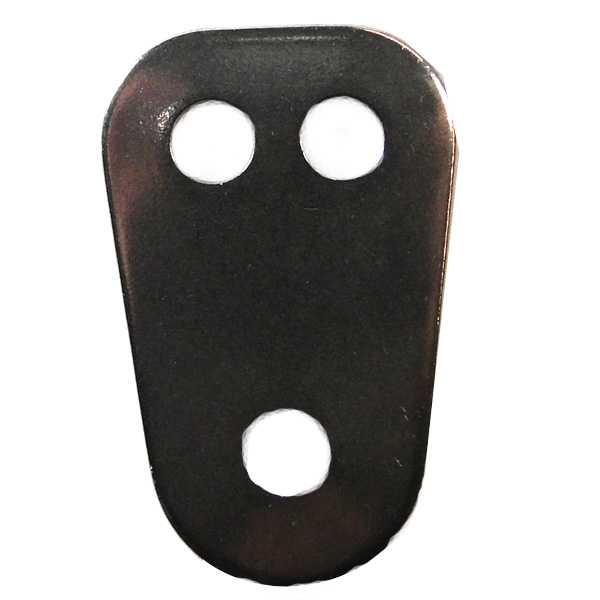

| 05-02077 | T2878 | 3 | T11-DFT | 3-Hole Flat | 14G | 1.91 | 1.09 | .26 | .26 |

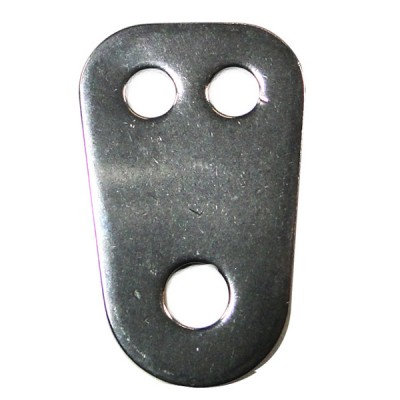

| 05-02078 | T2880 | 3 | T8-DFT | 3-Hole Flat | 12G | 1.91 | 1.09 | .32 | .26 |

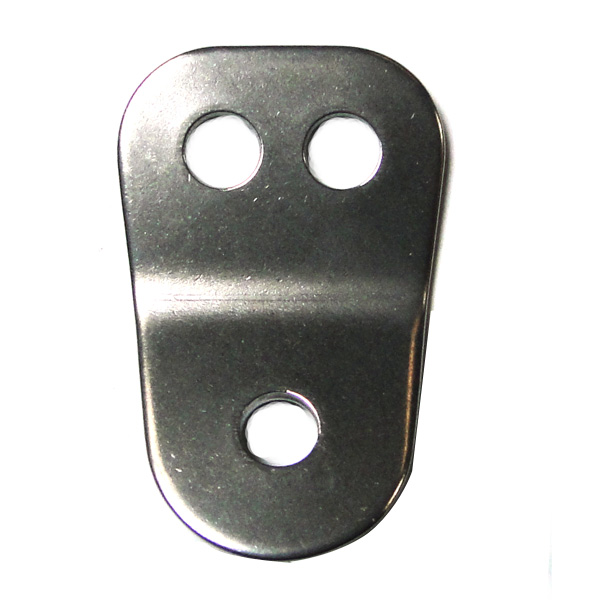

| 05-02079 | T2883 | 3 | T9-DAT | 3-Hole Bent | 14G | 1.86 | 1.04 | .26 | .26 |

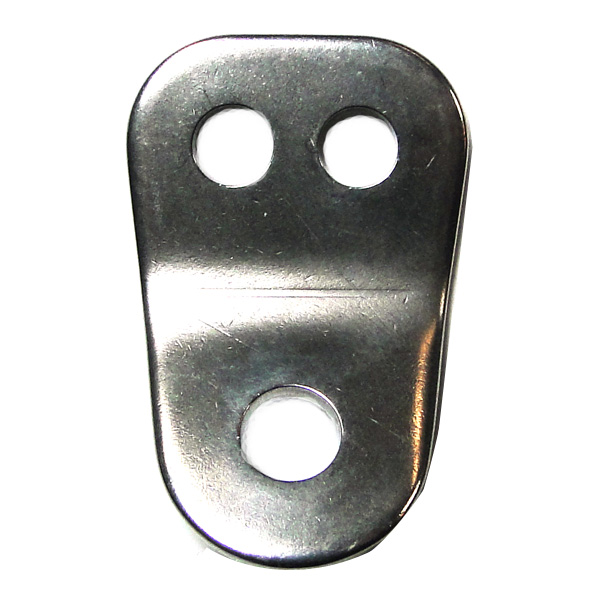

| 05-02080 | T2885 | 3 | T6-DAT | 3-Hole Bent | 12G | 1.86 | 1.04 | .32 | .26 |

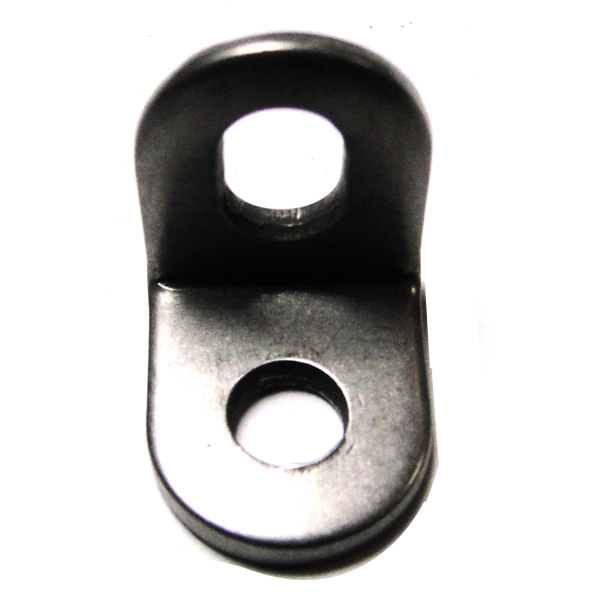

| 05-04371 | T3825 | 5 | -- | SS EYE Bent | 13G | 1.13 | .563 | .188 | -- |
| 05-02076 | T2876 | 8 | -- | SS Figure 8 | 14G | 2.00 | 1.38 | .26 | .26 |
What size holes are these tangs?
The hole sizes are referenced as dimensions C and D in the chart on the web page. The dimension referenced is diameter of the hole in inches.
What does 14G to refer to sheet thickness?
14 gauge stainless steel is .078"
