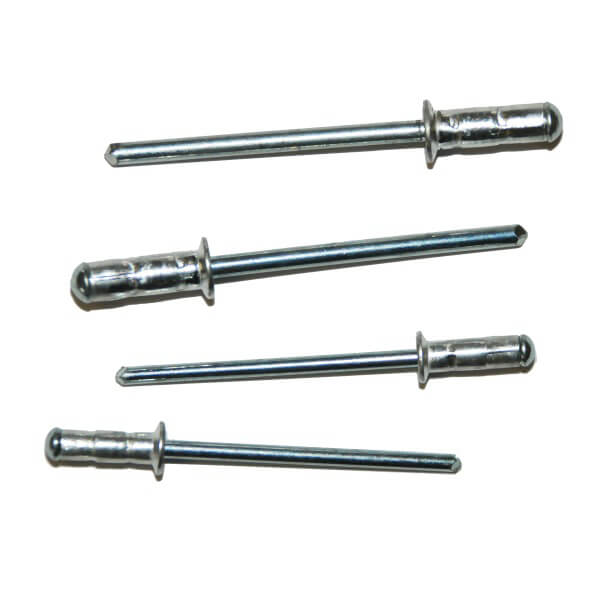

Zenair Blind Rivets

From $0.14 to $0.42
Description Part Number Price Buy
ZENAIR BLIND RIVET 1/8"
12-05538
$0.14
Quantity
ZENAIR BLIND RIVET 5/32"
12-05539
$0.20
Quantity
3/16" DOMED HEAD BLIND RIVETS
12-05540
$0.42
Quantity
3/32" BLIND RIVETS DOMED HEAD RIVET
12-05541
$0.20
Quantity
5/32" 0512 STAINLESS STEEL RIVET 3-5mm GRIP
12-05542
$0.39
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Zenith blind rivets are made from quality alloys, and are batch tested by Zenith Aircraft Company for shear strength before being shipped.

These rivets are corrosion resistant, and the stem becomes locked in after being set. Also, not many different lengths are required for different diameters or thicknesses. In the Assembly Instructions, they are designated as A4 (1/8) and A5 (5/32).

They have a design shear strength of 130 lbs. and 220 lbs. respectively. Use only Zenith rivets supplied with the kit.

Zenith Aircraft Company has developed a unique process for setting blind rivets, which requires custom rivet heads. The process uses flush-type rivets, where the flush rivet head is formed into a domed-head by the riveting process. This provides an permanent tight finish to all set rivets. To accomplish this, the riveter heads must be ground (machined) with a concave dome (see diagram). Only 1/8" (A4) and 5/32" (A5) rivets are required to assemble the kit.

Zenair blind rivets for the ZENAIR Riveting System
ZENAIR blind (or pulled) rivets have been used to construct the all-metal Chris Heintz designs since the 1970s, and make riveting a quick and easy process! The ZENAIR riveting system forms the rivet head as the blind rivet is pulled, providing a low profile dome finish and high shear strength. Fast installation, simple tools and low cost make this a popular riveting system with homebuilders!

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Michael B Verified Purchase

ZENAIR BLIND RIVET 1/8"

June 2, 2024

Michael B Verified Purchase

3/16" DOMED HEAD BLIND RIVETS

June 2, 2024

I needed these to finish my Zenith CH-750 and they are exactly the same as those that came in the original kit.

Jeffrey T Verified Purchase

ZENAIR BLIND RIVET 5/32"

April 27, 2024

Best experimental blind rivets I have found.

Bernie B Verified Purchase

ZENAIR BLIND RIVET 1/8"

March 23, 2024

Ettore P Verified Purchase

3/32" BLIND RIVETS DOMED HEAD RIVET

March 20, 2024

Ettore P Verified Purchase

3/16" DOMED HEAD BLIND RIVETS

March 20, 2024

Dwayne R Verified Purchase

3/32" BLIND RIVETS DOMED HEAD RIVET

November 16, 2023

Michael B Verified Purchase

ZENAIR BLIND RIVET 5/32"

October 24, 2023

Excellent

Mark E Verified Purchase

ZENAIR BLIND RIVET 5/32"

August 15, 2023

a ok

Dennis L Verified Purchase

ZENAIR BLIND RIVET 5/32"

July 19, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these Zenair blind rivets made of aluminum alloy or stainless steel?

These are made of 6061T6 aluminum.

Q: Are these the same rivets as avex?

Yes. Per they vendor they are Avex rivets. Avex is a large rivet manufacturer, and these Avex rivets were specifically selected by Zenith. I'm not sure what Avex model/part number they use.

Q: Do they have countersunk heads?

Yes these are countersunk.

Q: which ones are the 1/8 ....#30 rivets ?

12-05538 would be the 1/8 inch rivet.

Q: What is the angle of the counter sink heads?

Per Vendor: We just use a flat head to pull the A3 rivets and not a countersunk head. The A3s are used for the nutplates and will be a flush rivet.
