Aerospace Logic 200 - Four Cylinder CHT Bayonet Kit

Add to Wishlist
Part# 10-04484
MFR Model# CT204B


Aerospace Logic AOG Expedite Available, additional charges will apply.

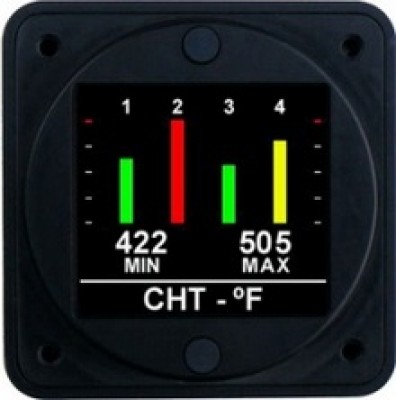

The CT204 is a full color CHT instrument that provides simultaneous, real-time
display of all four cylinders. Cylinder head temperature functionality is TSO'd and
meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/-1%) instrument.

Functional displays include:

  • Real-time four cylinder temperature display
  • Single cylinder temperature monitoring while retaining graphic indications
    for all cylinders
  • Graphic trend analysis and viewing of all cylinders simultaneously
  • Programmable shock cooling monitor and indication
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this instrument 2-1/4 or 3-1/8?

This fits a standard 2-1/4" mounting hole.

Q: What type of cylinder head sensor is used: thermocouple or RTD?

This uses Type-J ungrounded thermocouple.

Q: Is there a Celsius type?

The units are user selectable. You can go into the menu settings and change it from F to C.
