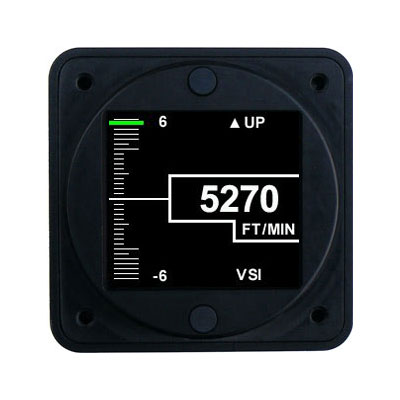

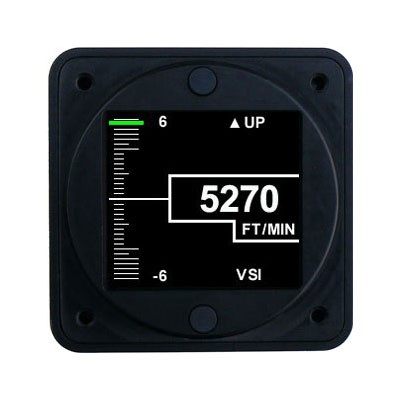

AEROSPACE LOGIC 2-1/4 ELECTRONIC VERTICAL SPEED INDICATOR 0-6000 FPM

$758.00/Each
Quantity
Add to Wishlist
Part# 10-06271
MFR Model# VSI200

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

The VSI200 is the most accurate Vertical Speed Indicator available for your aircraft. It exceeds all the requirements of TSO C8e and AS8016A while providing the following functionality:
  • Installer selectable for 0-2,000fpm, 0-3,000fpm, 0-4,000fpm or 0-6,000fpm rates of change.
  • Graphic bar indication of rate of change
  • Precision digital rate of change indication

Specifications

Certification / Compliance
TSO C8e
Canadian STC (PENDING)
FAA STC (PENDING)
Certified as primary replacement or for secondary use

Environmental
DO-160E
C1CAASXXXXXXYBXXBBBCSBA1C11XXAX

Software
DO-178B Level C

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 125mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -20C to +55C
Short term operating (1hr) -40C to +70C
Storage -55C to +85C

Display Units VSI
Feet per Minute

Display Units Standard Pressure Altitude
Feet

Accuracy Demonstrated
+/- 1'

Accuracy Certified (Exceeds)
SAE AS8016A

LCD Display
Sunlight readable LCD
176 X 192 display pixels, 65,535 colors

RS-232 Data Output
1 second per full sequence at 57.6K bps (8/N/2/N)

Interface Connector Electrical
DB-25

Interface Connector Static Port
1/8" NPT

Software Functionality
Rate of climb or descent
Rate of climb or descent and Standard Pressure Altitude

Dimensions Hole
Standard 2 1/4" aircraft mounting hole

Dimensions Enclosure
2.45 X 2.45 X 0.9

Dimensions Including Pressure Port
2.45 X 2.45 X 1.725

Weight (excluding harness)
4.30 oz

Finish
Black anodized 6061 aluminum
