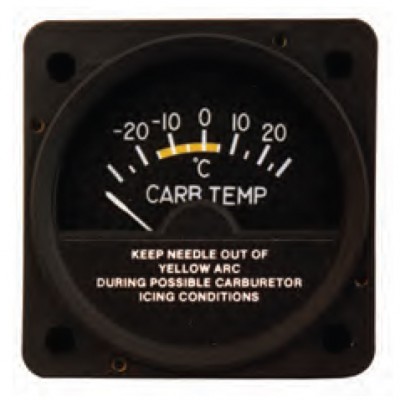

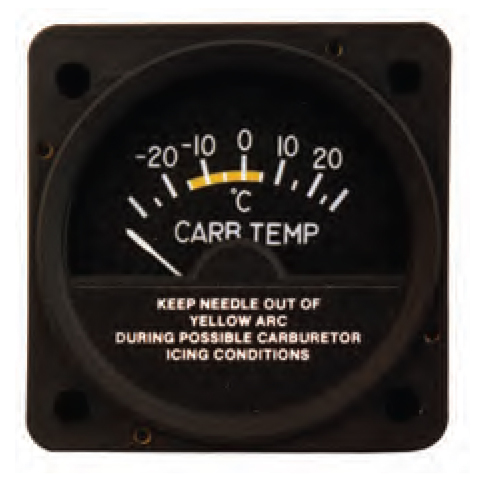

MID-CONTINENT CARBURETOR TEMPERATURE INDICATORS

From $645.00 to $645.00
Model Number Description Part Number Price Buy
MD11-314V PMA indicator
10-00950
$645.00
Quantity
MD11-428V PMA indicator
10-00951
$645.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Statistics show that the primary causes of engine failure in light aircraft are carburetor icing and spark plug fouling. Mid-Continent Instruments and Avionics’ B-5 Temperature Probe and MD11 Gauge accurately measure internal carburetor temperatures, giving the pilot precise engine information during all phases of flight. Use of this system can eliminate carburetor icing, reduce spark plug fouling, extend engine life and increase range and power to help maximize fuel economy.

Other probes that utilize a simple indicator light cannot offer precise temperature information. They disrupt fuel flow or don’t fit inside the carburetor to sense air temperature at the throttle valve.

Designed for use with most Marvel-Schebler and Bendix float-type carburetors, the B-5 is the only probe that installs at the throttle valve — the critical icing point in fuel induction systems. The optimum internal temperature for light aircraft carburetors is 5°C, and spark plug manufacturers state that fuel is properly volatilized at 5°C to prevent plug fouling. Used with the MD11 Gauge, the B-5 Probe allows pilots to monitor and control carburetor heating to within 1°C for maximum safety and engine efficiency.

Used in many piston-powered aircraft, this carb temperature indicator warns of potential carburetor icing.

Features

  • Detects potential carburetor icing
  • Supplemental Type Certification FAA PMA approved
  • Reduces spark plug fouling
  • Extends engine life
  • Helps attain maximum fuel economy, range and power
  • Quality connector included
  • Designed and built in Wichita, Kansas, USA
  • One year limited warranty

Specifications

  • Voltage Input: 14 VDC
  • Current Input: 90 ma
  • Dimensions: 2.4 x 2.5 x 2.7 inches
  • Weight: 5.0 oz
  • Operating Temperature: –40°F to +190°F
  • Indicating Temperature: –30°C to +30°C
  • Altitude: –1,000 to +40,000 feet
  • Humidity: 0 to 90% at 25°C
  • Vibration: .02 in. dbl. ampl., 1.5g @ 5 to 50 Hz
  • Certification: FAA PMA approved
  • Mounting: Front or rear panel
  • Case Material: Flame-retardant polycarbonate
  • Connector: 3-pin AN type
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which of these probe will work with 10-00950 (MD11-3)?

For 10-00950 you will use 10-10100.

Q: Does it come with probe and all wiring? Thanks

No that will be a separate purchase.
