Scott Type Air Thermometer Non TSO

$86.75/Each
Quantity
Add to Wishlist
Part# 10-15500
MFR Model# -2716A

Overview

Not FAA PMA Approved

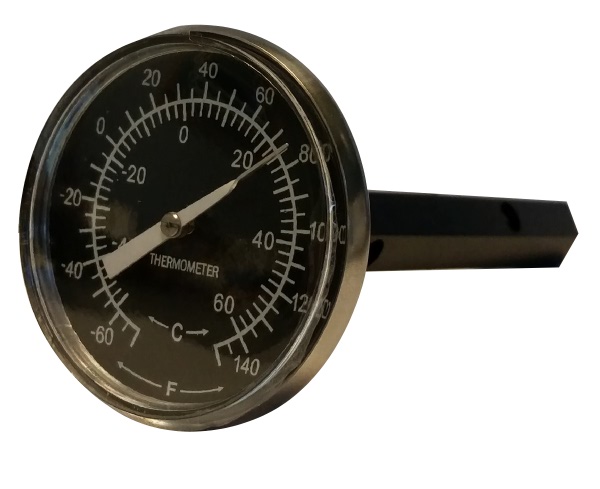

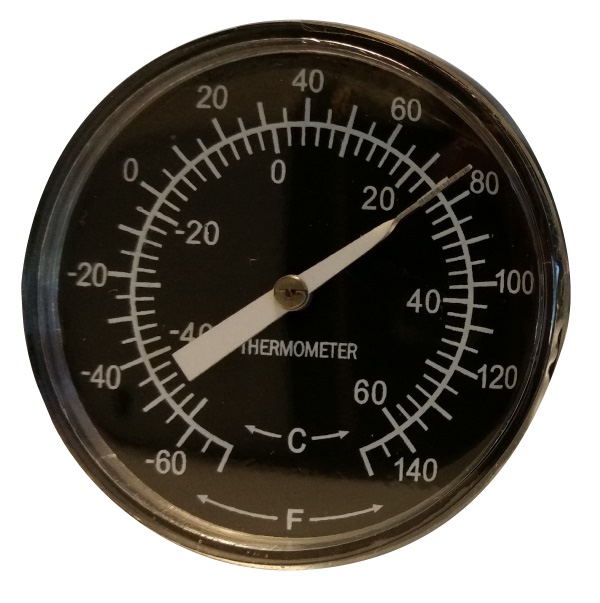

The Air Temperature Gauge is a direct reading gauge with both Fahrenheit and Centigrade graduations on the dial. It can be installed through plexiglas windshields, sheet metal cowling, or through the center strip of the windshield. When installing, choose a location that is visible to the operator which does not interfere with any adjacent parts or hardware.

Mounting Hole
Drill a .375" (3/8") + .010"/-.000" hole through the part of the window or wall section desired.

For use with a 7/16" torque wrench. Do not exceed 20 inch-pounds torque.

See included instructions for further installation.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Merci beaucoup

Dr A Verified Purchase

Scott Type Free Air Thermometer

August 2, 2023

Thanks

Richard B Verified Purchase

Scott Type Free Air Thermometer

April 26, 2023

As always Aircraft Spruce gave great service. The OAT gauge was made in China and although does the job it’s not really up to the quality we want in aviation. Time will tell how it stands up to the environment.

Paul C Verified Purchase

Scott Type Free Air Thermometer

February 7, 2023

As advertised.

Bryan P Verified Purchase

Scott Type Free Air Thermometer

July 5, 2022

Exactly as advertised but even easier to install.

Danny K Verified Purchase

Scott Type Free Air Thermometer

July 13, 2021

The thermometer worked great. Easy to install with no modifications. Good price. Overall very satisfied with great service from Aircraft Spruce and the products purchased. Thank you,

Bill M
October 12, 2020

Works great! installed flawlessly on my Bonanza

Lee
August 21, 2020

Installed in place of previous thermometer - same diameter hole - had installed in probably less than 1 minute. Previous Thermometer was digital and needed two batteries and was not always on. I much prefer the analog - always on, no batteries and shows both Fahrenheit and Centigrade temps. Perfect!

Ken K
May 11, 2020

It works. It fit in the old hole. It was easy to install. What else is there to write about an analogue OAT gauge?

David M
October 17, 2019

Easy to read, and shows temps accurately.

Jparker
June 22, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have any more installation information for 10-15500 Scott Type Free Air Thermometer? Does it come with mounting hardware?

Instructions for installation are included with the thermometer. Additional mounting hardware is not required for installation as it is fastened using a torque wrench.

Q: Is this Scott type free air thermometer FAA/PMA'd, TSO'd and/or STC'd?

The thermometers are not FAA approved.

Q: Will the 10-15500 Scott thermometer work on the windshield of my 76 Tiger?

Please note that this is a NON PMA'd/TSO'd thermometer. That being said, it works and has the same dimensions as the thermometers being used in thousands of general aviation aircraft. The hole size used is 5/16 of an inch.

Q: What is the weight of this Scott Free Air Thermometer?

This instrument weighs 0.12 lbs.

Q: Are part# 10-15500 and part# 2716-00 the same? When I type 2716-00 it brings up 10-15500

Yes, our part # 10-15500 is ordered under the manufacturer part # 2716-00.

Q: How long is the threaded portion of the Scott Type Free Air thermometer?

The threaded section of the Scott type thermometer is 1-1/8".

Q: How far out of the window does this protrude - how long is the probe? Do you have a digital one that is like this self-contained one?

The probe is 3.5", no digital version is available.

Q: What is the diameter of the face of the Scott Type Air Thermometer?

2-1/16 inches diameter

Q: Is this Scott type free air thermometer adjustable or calibratable?

No. This thermostat is not adjustable and has no provision for calibration.

Q: What is the nut size for the threads on the Scott Type Air Thermometer?

The thread is 5/16-24.
