- Photo may represent series and not specific product
- SHARE
| Model Number | Description | Part Number | Price | Buy |
|---|---|---|---|---|
| 1394T100-7B | 1132V, Brushless - Low Wing | 10-02108 | $1435.00 | |
| 1394T100-14RB | 1132V, Autopilot, S-TEC, Lighted, Brushless - Low Wing | 10-04022 | $2584.00 | |
| 1394T101-3B | 1132 VDC, 3-pin, Black ball, Brushless, Lighted | 10-07748 | $1653.00 | |
| 1394T101-7B | 1132 VDC, 3-pin, Black ball, Brushless | 10-07749 | $1435.00 | |
| 1394T101-14RB | 1132 VDC, Autopilot, 5-pin, Black ball, Brushless | 10-07752 | $2585.00 |
Overview
|

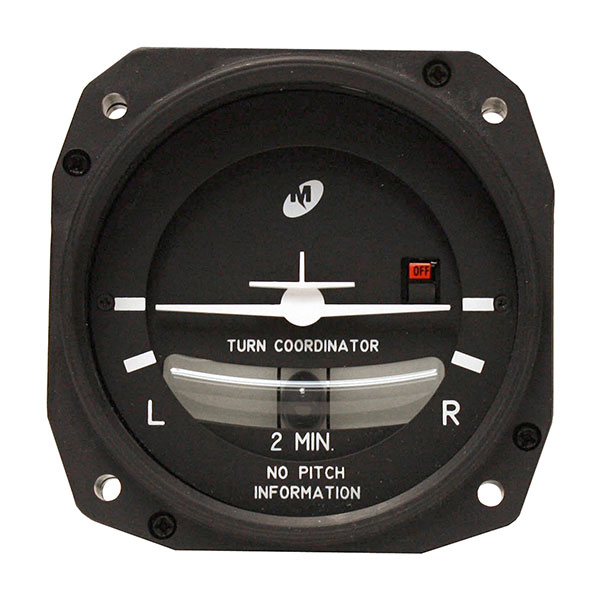

Engineered for a long service life, the B model turn coordinator features a proven AC rotor powered by a solid-state inverter, creating less heat behind the panel. Utilizing a brushless rotor design, this instrument has top industry ratings of 4,800 hours MTBF. It is ideal for use in high performance aircraft and cold-climate applications. All 3-inch turn coordinators operate from 1032 volts DC for convenience and reliability. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Input Voltage Range VDC: 11 32
- Rotor Type: AC
- Power Consumption Nominal: 0.28 A
- Dimensions: 3 1/4" x 3 1/4" x 5"
- Maximum Weight: 1.4 lbs.
- Turn Indication: Standard 2Minute Turn
- Operating Temperature: 30°C to + 50°C
- Operating Altitude: 1,000 ft. to 35,000 ft.
- Glass: HEA non-glare
- Mounting: 3 1/8" front or rear panel
- FAA TSO certified to C3b
Documents
Reviews
Great!
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Works fine, just wish in the specs. they would tell you it is made in China, I would have looked elsewhere
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
awesome product at a great price. very fast shipping. Love your company.
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
We have purchased 11 of these since 2/2021 to replace our EGC turn coordinators. No problems at all. Planning on purchasing 9 more for the rest of the fleet.
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Works as planned.
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Works great. The few spool up delay was disconcerting at first, but OK after getting used to it.
Verified Purchase
Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Worked well. For the little price difference from other brands that are not TSO. This unit is built well and accurate.
Very nice gauge.
work fine, just a little long to unflag, its a rotation speed sensor, not the cc alimentation
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 10-00789 and the backshell for that is part # 11-04969?
No, there are no forms included in the box. They can be furnished with 8130-3 forms, but it must be added at time of order. Additional charges will apply.
Yes, these turn coordinators are new, outright.
Yes, this is approved via FAA TSO.
Per the manufacturer, this is only the turn coordinator. The cables are sold separately.
