Dynon Pitot Mount Bracket For Experimental Aircraft

$108.00/Each
Quantity
Add to Wishlist
Part# 10-06246
MFR Model# 102813-000

Overview

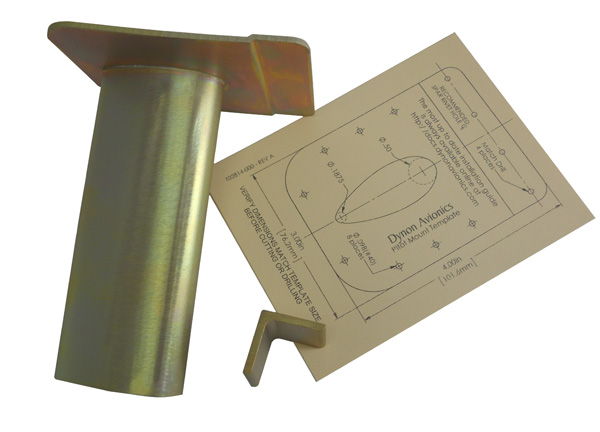

Mounting bracket for Dynon Avionics AOA pitot tube, both heated and unheated version. (Profile for standard AN5812 pitot tubes.)

Kit includes a small support bracket and a cutting template for the skin penetration.

Fully installation instructions are included in the SkyView System Installation Guide.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Happy to find it sturdier than the original.

Michel P Verified Purchase

Dynon Pitot Mount Bracket Kit Vans RV 7 8 9 10

August 9, 2022

Good product, exactly as advertised.

Jose P
October 16, 2020

Quality product, but requires a little finesse to fit and work properly. Drill/ cut overlay rivet dimensions for spar arent correct for RV-10 and have to be modified. Mast must be squeezed lengthwise to fit pitot tube inside.

Chris R
December 20, 2019

High quality, easy to install on my Panther kit. Good instructions.

Fred W
April 12, 2018

I was happy with my purchase I received in perfect condition and in the contracted period

Viana ,
March 4, 2018

Good product. Needs to be deburred where the pitot goes in, then you loose the protection coating. The GARMIN G3X AOA GAP 26 HEATED PITOT TUBE fits in. The inner profile dimension is standard. We need to make the holes to install the screws to secure the pitot to the mount.

Lewis M Verified Purchase

Dynon Pitot Mount Bracket Kit Vans RV 7 8 9 10

September 29, 2021

This was well made but I had to do a lot of filing inside the bore to get the Pitot tube to fit. I suspect the welding of the flat flange warps the shape of the extension. Almost returned it..

Torger T Verified Purchase

Dynon Pitot Mount Bracket Kit Vans RV 7 8 9 10

April 18, 2024

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the unit made from aluminum or stainless steel?

This pitot mount bracket is made of aluminum.

Q: Will this bracket also fit the Garmin GAP-26 AOA Heated Pitot? If not, do you have a bracket that will work with the Garmin?

It is recommended to use part # 10-01188.

Q: Will this bracket fit the Dynon Pitot tube part# 10-02158 ?

Yes, it will.

Q: What is the piece of angle used for (shown in the photograph)?

That is a support bracket.

Q: Is this the recommended bracket for the RV 14?

Per Dynon this is generic mount and it should work fine on a RV14.
