Garmin G3X LRU Kit (Experimental)

2 Reviews 2 Answered Questions
Select Model
StandardHigh Performance
Quantity
Add to Wishlist

Overview

To simplify and streamline your installation, these data modules are available in prepackaged G3X system sensor kits. Whether you select the standard or high-performance kit version (for aircraft capable of speeds in excess of 300 kts IAS), your package will include a GPS-aided digital ADAHRS (air data and attitude/heading reference system), a solid-state magnetometer, an outside air temperature (OAT) probe and a configuration module to provide your system with the information it needs.

    Digital ADAHRS
  • Leveraging sensor technology from our high-end glass flight deck systems, the GSU 25 ADAHRS unit is included in the standard kit, which provides highly accurate and reliable referencing of your aircraft position, rate, vector and accelera­tion data. The module takes up just a fraction of the space and weight previously required by conventional gyro-based instrument systems. In the high-performance kit, the GSU 25D ADAHRS unit offers the same functionality with processing appropriate to aircraft flying at indicated airspeeds above 300 knots.
    Magnetometer
  • Our GMU series of solid-state, triaxial magnetometers are remote-mounted devices that use magnetic field measurements to provide electronically stabilized heading data for flight instrumentation. The GMU 11 magnetometer is provided in the standard kit, while GMU 22 is provided in the high-performance kit.
    Temperature Probe
  • Included in both the standard and high-performance kits, GTP 59 is an OAT probe that provides data to the G3X system’s air data computer for true airspeed, density altitude and other essential flight calculations.
    Configuration Module
  • The G3X Touch system configuration module stores configuration and calibration data for the system.
    Smart Design, Simple Installation
  • Installation of G3X system sensors in your aircraft is simple and straightforward — with our standard mounting hardware available. For builders and installers who want to take the guesswork out of cockpit modernization, these bundled sensor kits can help make quick work of putting it all together.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

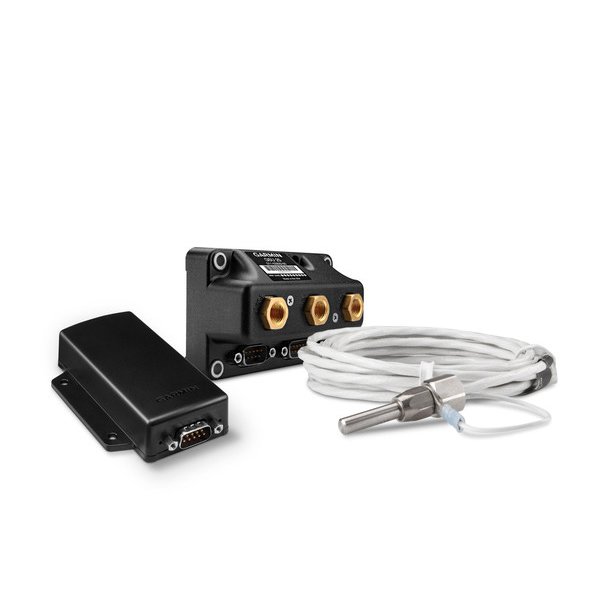

In The Box

    Standard Kit:
  • GSU 25C ADAHRS
  • GMU 11 Digital Magnetometer
  • GTP 59 Temperature Probe
  • Configuration Module
  • GSU 25C and GMU 11 Install Kits Not Included
    High Performance Kit:
  • GSU 25D High-Performance ADAHRS
  • GMU 22 Digital Magnetometer
  • GTP 59 Temperature Probe
  • Configuration Module
  • GSU 25D and GMU 22 Install Kits Not Included
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Magaero L Verified Purchase

GARMIN G3X LRU STANDARD KIT GSU 25C GMU 11 GTP 59 AND CONFIG MOD
April 22, 2023

Good product and good service

Paul G Verified Purchase

GARMIN G3X LRU STANDARD KIT GSU 25C GMU 11 GTP 59 AND CONFIG MOD
November 10, 2022

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: STANDARD OR HIGH-PERFORMANCE LRU KIT, which do I need?

You would need to determine what you need based on your aircraft. The high performance kit is for aircraft capable of speeds in excess of 300 kts IAS. The standard would before speeds lower than that.

Q: Do the kits come with the connectors?

No,this does not come with the connector kits. GSU kit part # 11-11433 |GMU kit: part # 11-15066
