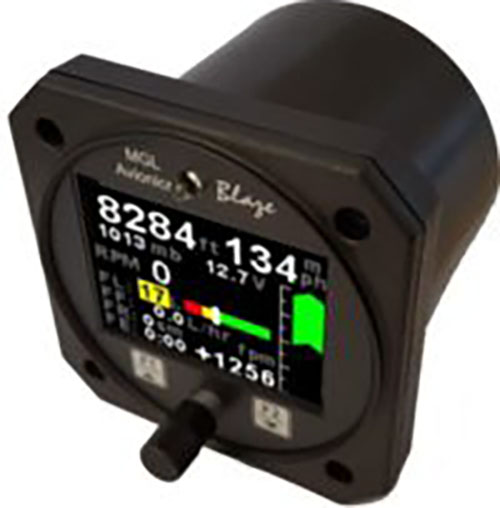

MGL Blaze Flight-3 Primary Flight Instrument
MFR Model# BLAZE-FLIGHT-3
FREE Shipping
Overview
|
The FLIGHT-3 is a 3 1/8” (80mm) multifunction complete primary flight system intended as a main flight instrument on smaller aircraft or as a backup / secondary flight instrument in larger aircraft. This 3 1/8” (80mm) instrument provides many functions from an altimeter, airspeed indicator, VSI indicator, fuel level, fuel flow, RPM, volts, current display and many more. The FLIGHT-3's light weight, small size and high level of functionality makes it an excellent choice for many applications. The FLIGHT-3 also makes an ideal companion to the Blaze EMS-2 universal engine monitor for a compact, low cost yet highly functional and complete cockpit solution. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
| Power Specs | Voltage Input: 8-30 Volts DC with Over Voltage and Reverse Polarity Protection Current Draw (13.8V): 130mA Backlight High, 50mA Backlight Low |
|---|---|
| Screen | Size: 2.6" Resolution: 320×240 Backlight: minimum 600 cd/m2 brightness, sunlight readable LED backlight |
| Physical Specs | Unit Size: 85mm x 85mm x 82mm Fits in: 3 1/8" Instrument Cutout Weight: 150 grams (excluding wiring) |
| Brand | MGL Avionics |
| Version | Normal Speed (0-250mph), High Speed (0-320mph), Revision 2 (20-350mph) |
