RC Allen Torque Indicators

From $515.00 to $645.00
Description Part Number Price Buy
RC Allen 27-3007-1 Torque Ind
10-03441
$515.00
Quantity
RC Allen 27-3007-7 Torque Ind
10-03443
$645.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Our Torque Indicators are a wet line, direct reading bourdon tube type instru-ment, housed in a 2” diameter case. Unit can be calibrated over a wide rage of PSI input to direct read torque. Units can be furnished to your specifications. Indicate needed pressure input and pressure-to-torque conversion. This unit cannot be damaged by oil back up in vent line.

DIMENSIONS:
2” diameter x 2.125” length
Weight: 0.4 lbs
Power: Wet line direct reading pressure gage

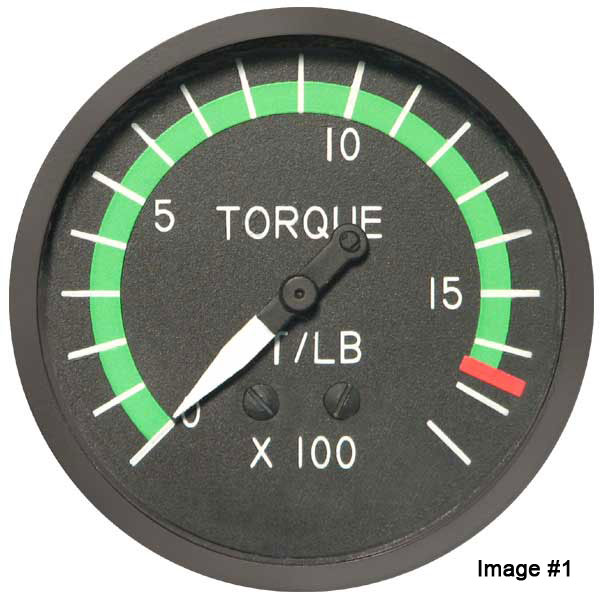

27-3007-1 (Refer to Image #1)
0 to 1800 FT/LB
Green Arc
From 0 to 1628
Red Line at 1628

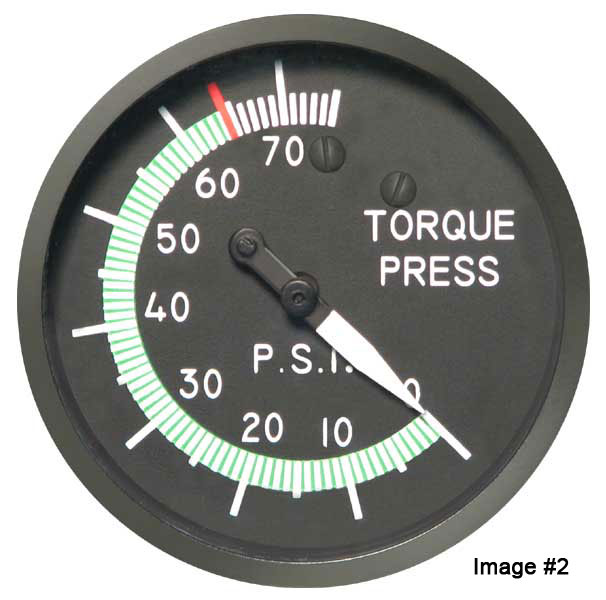

27-3007-4 (Refer to Image #2)
0 to 75 P.S.I
Green Arc
From 0 to 64.4
Red Line at 64.4

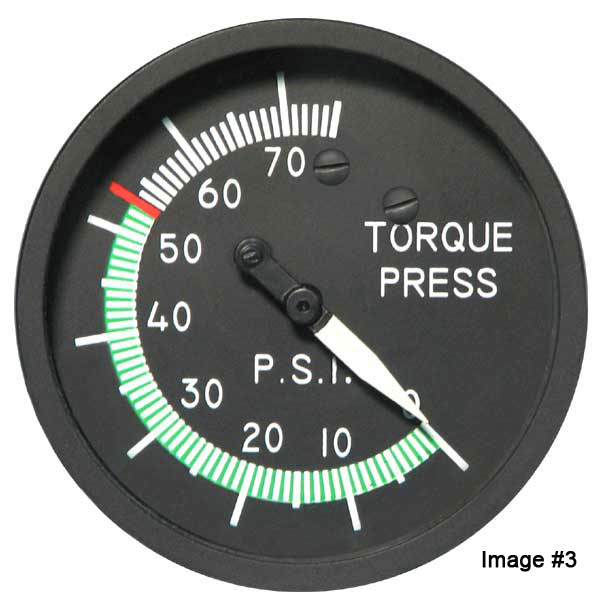

27-2007-5 (Refer to Image #3)
0 to 75 P.S.I.
Green Arc
Red Line at 53

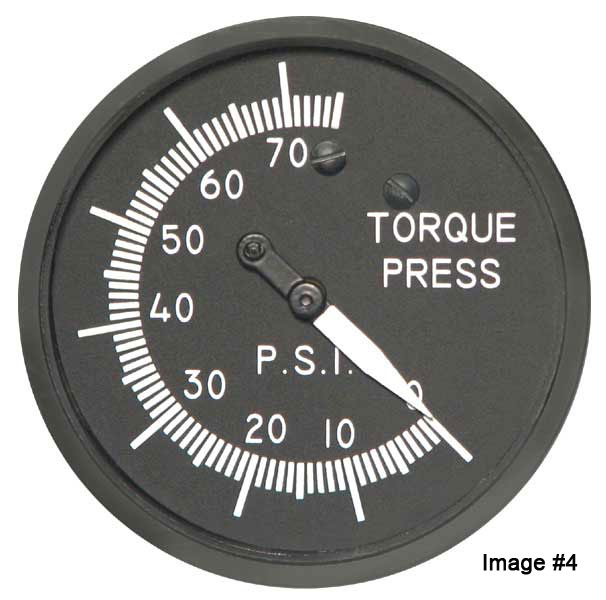

27-3007-7 (Refer to Image #4)
0 to 75 P.S.I
From 0 to 53
Made in the USA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: P/N 27-3007-7 your photo does not show mounting. Is it a square mounting molded onto the gauge?

This instrument requires mounting in a 2" diameter round instrument hole.
