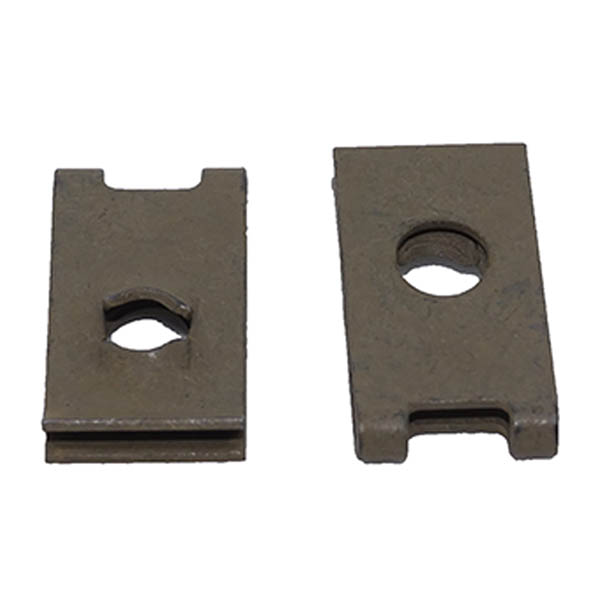

U Type Tinnerman A1787-8Z-1D

Packaged Items
SinglePack of 25
Tinnerman No.Screw SizePart Number
A1787-8Z-1D#804-00365

Overview

Snaps over edge of panels or into center hole locations. Holds itself in place for blind assembly. "Floats" free for easy hole alignment.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification Chart

Instructions

HOW TO APPLY SPEED NUT FASTENERS

FLAT TYPE "U" TYPE
Fastener is positioned over screw clearance hole with screw-engaging prongs pointing up or outward. Screw is started into nut by hand from the underside.
Push into position with thumb until extrusion on lower leg snaps into screw hole. The fastener "floats" in screw-receiving position to correct for normal misalignment in panel mounting holes.

Screw can be power-driven into locked position (when base arch of fastener is flat) or a hand screw driver can be used. No wrench is required, finger pressure will prevent it from turning.

Place second panel in position and drive screw. Access to opposite side is unnecessary. Flush mounting can be made by embossing either panel.

Reviews

Perfect!

Howard J Verified Purchase

U Type Tinnerman A1787-8Z-1D

January 6, 2024

Matthew S Verified Purchase

U Type Tinnerman A1787-8Z-1D

August 26, 2023

Good

Bruce C Verified Purchase

U Type Tinnerman A1787-8Z-1D

March 9, 2023

good

Dom B Verified Purchase

U Type Tinnerman A1787-8Z-1D

September 23, 2022

Quick Delivery, as described

Robert P Verified Purchase

U Type Tinnerman A1787-8Z-1D

January 4, 2022

Works perfect on the front cowl.

Greg I Verified Purchase

U Type Tinnerman A1787-8Z-1D

December 18, 2021

Look like a good match to the ones I already have.

John B Verified Purchase

U Type Tinnerman A1787-8Z-1D

December 17, 2021

Perfect fit and replacement for my many rusted old ones.

Kelly S Verified Purchase

U Type Tinnerman A1787-8Z-1D

October 28, 2021

Worked as promised.

Larry J Verified Purchase

U Type Tinnerman A1787-8Z-1D

August 26, 2021

Nut plates. It retains screws and such. They work well.

Frank H Verified Purchase

U Type Tinnerman A1787-8Z-1D

August 5, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: With reference to column G panel hole diameter measurement under spec tab. What exact dimension is that referencing? Regards, Nic

We have added a new specification chart both above the product listing and in the "Specification Chart" tab. It references each of the dimensions for clearly. G is a minimum diameter.

Q: Sheet metal screws or machine screws? Ordered some, they do not accept machine screws, please clarify.

Tinnerman NAS395 nuts are used with sheet metal screws. Machine screws would require a Tinnerman LHA or Monadnack clip nuts. The screw size for machine screws will indicate the size, and thread count, 6-32, 8-32, etc.. Sheet metal screws are indicated by size and type, #6 type A, or #6 type B, etc..

Q: What material are these NAS 395 tinnerman nuts made out of?

SAE 1065-1070 steel.

Q: Will these work with both Type A and Type B sheet metal screws?

Yes, type A and B will work with these.
