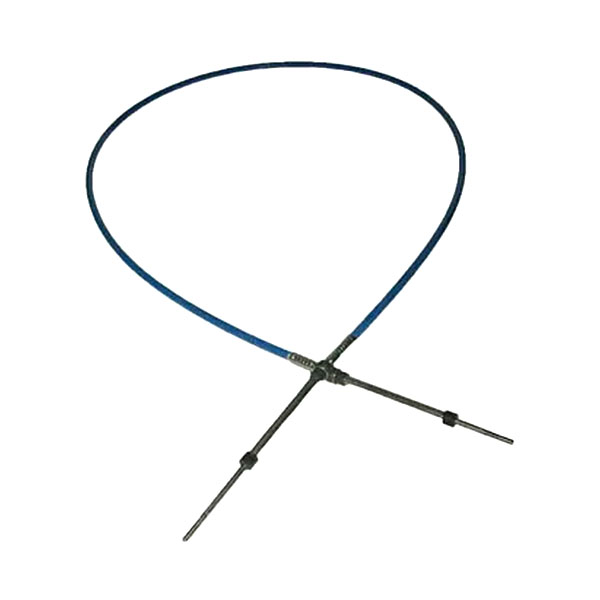

THROTTLE CNTRL MC455-322

$388.00/Each
Part# 05-01747
MFR Model# MC455-322

Overview

MODEL
SERIAL #
P/N
OUR P/N
PA24-250
24-105 thru 24-2174
455-184
05-02214
PA24-250
24-2176 thru 24-2298
455-184
05-02214
PA24-250
24-2175, 24-2299 thru 24-3687
455-252
05-02215
PA24-260
24-3642,24-4000 thru 24-4782
455-252
05-02215
PA24-260
24-4784 thru 24-4803
455-252
05-02215
PA32-300
32-40000 thru 32-40565
65451-04
05-02216
MODEL
SERIAL#
P/N
OUR P/N
PA28R-180
28R-30005 thru 28R-30481
455-322
05-01747
PA28R-180
28R-30483 thru 28R-31279
455-322
05-01747
PA28R-180
28R-7130001 thru 28R-7130019
455-322
05-01747
PA28-201T
28-7921001 thru 28-7921095
455-322
05-01747
PA28R-200
28R-30482
455-322
05-01747
PA28R-200
28R-35001 THRU 28R-35830
455-322
05-01747
PA28R-200
28R-735001 thru 28R-7635545
455-322
05-01747
PA28R-201
28R-7737002 thru 28R-7837317
455-322
05-01747
PA28R-201
2837001 thru 2837061
455-322
05-01747
PA28R-201T
28R-7703002 thru 28R-7803372
455-322
05-01747
PA28R-201T
2803001 thru 2803015
455-322
05-01747
PA28RT-201
28R-7918001 thru 28R-8010116
455-322
05-01747
PA28RT-201
28R-8118001 and On
455-322
05-01747
PA28RT-201T
28R -7931001 thru 28R-8031188
455-322
05-01747
PA28RT-201T
28R-8131001 and On
455-322
05-01747
PA28-235
28-7310001 thru 28-7710089
455-344
05-01750
PA28-236
28-7911001 thru On
455-344
05-01750
PA28-236
32-40000 thru 32-40565
455-344
05-01750

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Not yet installed or removed Freon it’s shipping package.

Nash A Verified Purchase

THROTTLE CNTRL MC455-322

March 7, 2023

This mixture control is as advertised. It is straight forward to install using all of the original attachments. I removed the control wire to cut the housing then cut the control wire to fit after installing the housing and inserting control wire in the housing.

John C
January 11, 2021

Works as planned and looks great. Installed on a Piper PA-28-140 in order to micro adjust for mixture to peak. Mechanic said it came with so much cable length he had to cut off 4ft. Obviously thats because it is also meant for other Pipers with more distance to cover such as the PA-32, etc. I would definitely recommend this item for the older planes like mine that just have the straight push/pull with no micro adjustment for the mixture.

Kevin G
October 25, 2019

Awesome product made in the U.S.A 😍

Colin
May 3, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding control number 455-352. Does this replacement control cable have a locking mechanism?

Per the supplier: no it does not, this is quad style.

Q: What is length of MC455184 prop cable?

86.5" overall. 83.25" from mounting threads to end.

Q: What is the length of throttle 12693-04?

53-1/2" total over all length.

Q: Do these include the knob or just the cable?

These are just the push-pull cable. You would reuse your existing knob.

Q: DO YOU HAVE PROP CONTROL FOR PA-32 260 & HOW LONG IN INCHES?

Yes, please use part # 05-01748.

Q: How long is 05-02213?

63.83 long.
