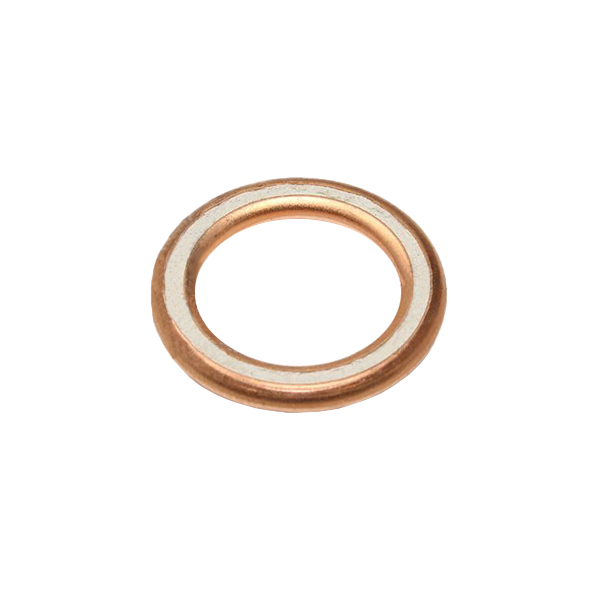

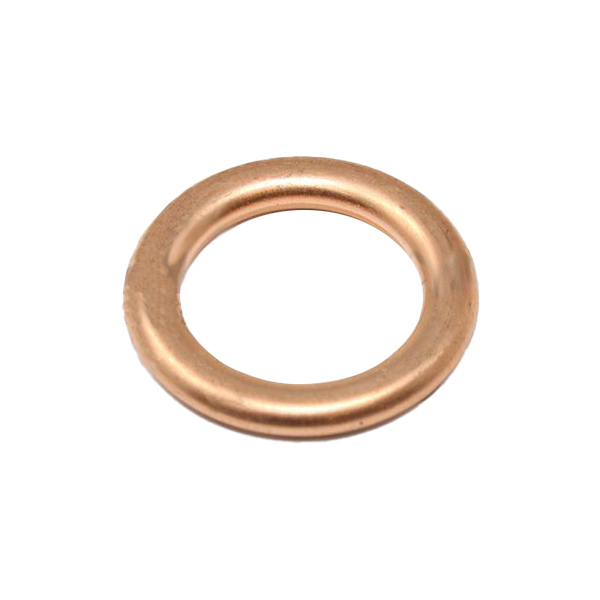

|AN900 (MS35769) annular copper-asbestos gaskets (crush washers) are suitable for temperatures up to 500 F. and pressures up to 200 PSI. Ring width is 1/8"; thickness is 3/32.|
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Keeps the good stuff in and the bad stuff out.
The ideal crush gasket for Jabiru engine sump plug, & also Rotax oil tank sump plug. Use then routinely.
Excellent product, works as advertised
Not much to say its a gasket.
Perfect crush washers for my 1950 DeSoto oil drain plug. Very good service and lightning fast shipping.
The real deal! Real crush washers! Size was exactly as needed for intended purpose and these crushable washers did the job. Solved a longstanding problem where a previously used fiber washer became brittle with use and failed. Have bought washers sold as crush washers before but they did not appear to be anything other than regular washers that were (supposedly) made out of pure copper.
They are so shiny!
Exactly as advertised and shipped promptly Thx
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The ID listed in the chart is the inside diameter.
The Rotax gasket must be ordered from www.cps-parts.com. Use Part # 15-08260 to locate it on their website.
The drain plug size is m12x1.5, part number 15-09891(241-785). The closest crush gasket we would have is AN900-8 (1/2".)
Up to 200 lbs square inch.
