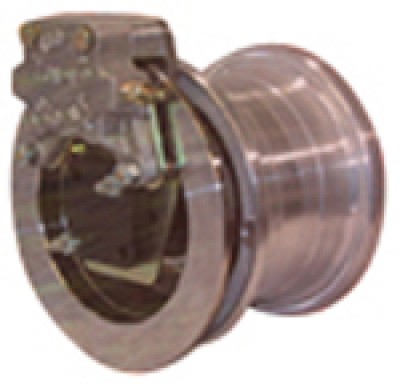

Matco Centrifugally Cast Wheels Internal Caliper W40B

From $700.00 to $734.00
Description Part No. Price Buy
MATCO WHEEL & BRAKE W40B
06-00458
$700.00
Quantity
MATCO WHEEL & BRAKE W40-BDXT
06-00459
$734.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

W40B
MATCO mfg produces a superior 4 inch wheel and brake assembly for use with aircraft requiring less than 660 lbs per wheel. This model uses 0.625 inch BALL bearings. (Check the product comparison table for other bearing and caliper configurations).

Dimensions

The W40B is a 4 inch wheel with 3.775 inch width with an additional 1.24 inch caliper spacing. Bearing spacing is 2.67 inches and axle spacing is 1.07 inches. The total weight of this wheel and brake assembly is 4.05 pounds. The bearing axle diameter is 0.625 inches.



Performance
The W40B is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS
Maximum Accelerate/Stop Kinetic Energy: 93441 ft-lb
Torque Rating (@450 PSI): 1540 in-lb

Product Comparison Table

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the price shown for part # 06-00459 for a pair, or priced for each wheel assembly?

These are priced and sold as a pair.
