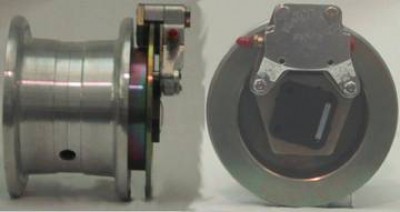

The WE51 is a 5 inch wheel with 4.3 inch width with an additional 1.39 inch caliper spacing. Bearing spacing is 3.27 inches and axle spacing is 0.945 inches. The total weight of this wheel and brake assembly is 7.5 pounds. The bearing axle diameter is 1.25 inches.
The WE51 is cast utilizing a 535.2 aluminum alloy for superior strength and corrosion resistance. This alloy provides a light weight wheel and affords many years of efficient performance. The WE51 has a 1.25 tapered roller bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. This wheel features our 'E' series disc and single piston brake assembly. All 'E' series wheels utilize an external caliper for easy maintenance. Brake shoe removal can be accomplished by simply removing two bolts to release the caliper. Al-Ni-Brz bushings are used on 'E' series wheels to ensure smooth caliper travel. Machining on this wheel optimizes its effectiveness when using a variety of manufacturer's tires including Goodyear, McCreary, Michelin, and others. The WE51 can be used in conjunction with a bolt on axle, the A1A axle, for ease of installation. The A1A axle is manufactured using a black anodized 2024-T351 alloy and has a bolt hole diameter of 1.94. A straight 1.25 inch diameter axle may be used with 0.945 inch spacing between bearing and axle flange. For simplicity of installation, specify the WHLA1B axle or WHLA1B axle assembly as the bearing stops are machined into the axle for correct caliper spacing. The WE51 has same axle fit dimensions as the Cleveland 199-102 kit. Any 500X5 tire and tube combination can be used with this tire.
Performance The WE51 is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 118000 ft-lb
Torque Rating (@450 PSI): 2085 in-lb
Product Comparison Table
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
You will receive: Qty 1 of part # 06-00445 (MATCO 5" WHEEL & BRAKE ASSEMBLY) and Qty 2 of 06-00518 (MATCO AXLE ASSEMBLY WHLAXLE1B).
