CLEVELAND BRAKE ASSEMBLY 30-59A

From $0.03 to $2463.00

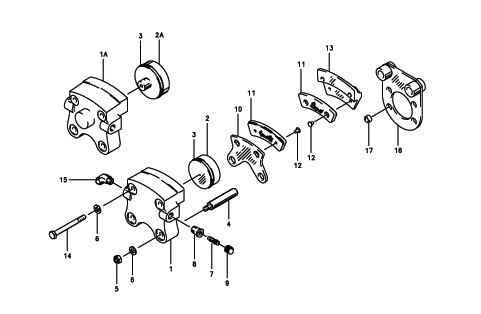

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

MFR Part No. Chart No. QTY Rqd Description PN Price/Ea. Buy/Ea.
30-59A / 030-05901--COMPLETE CLEVELAND 30-59A ASSEMBLY
30-59A
$2463.00
Quantity
091-09600-1091-09600 CYLINDER ASSY
06-01952
$1337.00
Quantity
061-0750011CLEVELAND BRAKE CYLINDER 061-07500
06-01953
$595.00
Quantity
092-04000-1092-04000 PISTON ASSY
06-01954
$130.99
Quantity
062-0390021CLEVELAND PISTON 062-03900
06-01955
$186.90
Quantity
069-00400
42CLEVELAND ANCHOR BOLT 069-00400
069-00400
$36.95
Quantity
095-10200
64095-10200 WASHER AN960-416L
095-10200
$0.03
Quantity
079-00300
71CLEVELAND BLEEDER SCREW 079-00300
079-00300
$17.70
Quantity
081-00100
81CLEVELAND BLEEDER SEAT 081-00100
081-00100
$31.50
Quantity
183-00100
91CLEVELAND BLEEDER CAP 183-00100
183-00100
$6.50
Quantity
073-04600-1073-04600 PRESSURE PLATE ASSY
06-01956
$226.95
Quantity
063-03400101CLEVELAND PRESSURE PLATE 063-03400
06-01957
$218.95
Quantity
066-11200
112CLEV BRAKE LINING # 66-112
066-11200
$30.50
Quantity
074-03600-1074-03600 BACK PLATE ASSY
06-01958
$298.95
Quantity
064-02900131CLEVELAND BACK PLATE 064-02900
06-01959
$322.00
Quantity
103-11700
142CLEVELAND BOLT 103-11700
103-11700
$12.50
Quantity
075-03700
161CLEVELAND TORQUE PLATE ASSEMBLY 075-03700
075-03700
$396.00
Quantity
145-01000
172CLEVELAND BUSHING 145-01000
145-01000
$37.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Cleveland Brake Assembly 30-59A

Reviews

Simple working part for Cleveland brakes.

Blane J Verified Purchase

CLEVELAND BLEEDER CAP 183-00100

September 17, 2021

Simple working part for Cleveland brake cylinders. My original screws worn and rounded off from age.

Blane J Verified Purchase

CLEVELAND BLEEDER SCREW 079-00300

September 17, 2021

Perfect fit. Got rid of most the brake rattle.

S&s A Verified Purchase

CLEVELAND ANCHOR BOLT 069-00400

July 24, 2021
