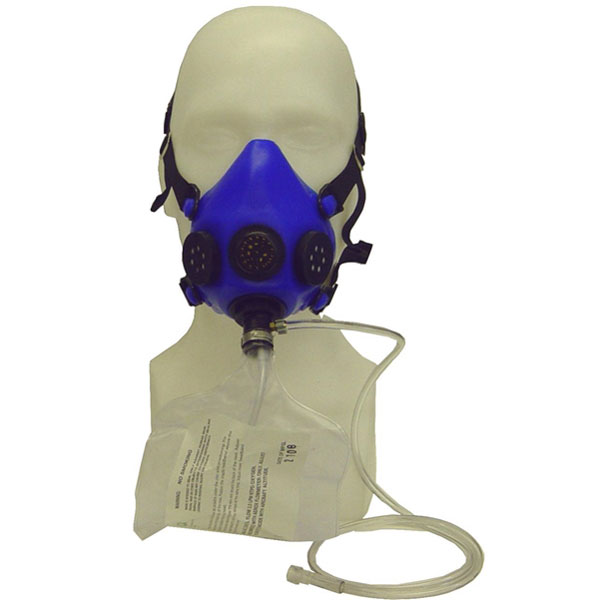

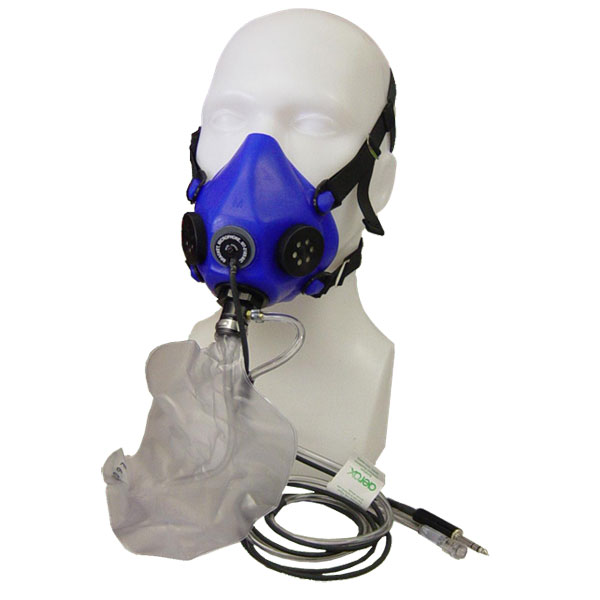

Aerox 4110-712 Series Oxygen Mask FAA-TSO

Select Size:
SmallMediumLarge
Select Model:
Mask Without Mic Mask With Mic
Quantity
Add to Wishlist

Overview

The 4110-712 Series continuous flow oxygen mask with or without microphone is intended for crew and passengers in the general aviation industry at a maximum altitude of 25,000 feet.

TSO-C103, Technical Standard Order for Continuous Flow Oxygen Mask Assembly.

FAA 8130 provided in each shipment.

Note: If returned, all cannulas and oxygen masks must be factory sealed.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Shipping wgt & dims.: 2 lbs 4 x 8 x 8 in
  • Hose Length: 36"
  • Weight: .075 lbs
  • Material: Silicone, Alum (Black Anodized)
  • Certified Max Altitude: 25,000 Feet
  • Communications: Electret Microphone / Acoustic Foam
  • Comm Plug: PJ068
  • Service Overhaul: 3yrs from Date of Manufacture
  • Breathing Oxygen: Aviator O2 Per MIL-PRF-27210
  • Min Oxygen Flow: 2.5 Litres per minute (NTPD)
  • Ambient temperatures: 70° F (21° C)
  • Ambient Pressure: 14.7psia (101kPa)
  • Operating Temperature Range: +20°F to 120°F (-7°C to 49°C)
  • Reletive Humidity 5% to 95%
  • Storage Temperature: Normal: -20°F to +160°F (-29°C to +71°C)

Reviews

This mask arrived quickly and is quite comfortable to wear. A little pricey with the mic but matches well with most adjustable regulators. I have learned it is wise to wear oxygen at sustained altitudes above 10,000. With us trying to practice social distancing, this is one way to make sure you are breathing clean air if you don the mask before takeoff. You only need to reduce the regulator flow until you reach higher altitudes. Helps keep you sharp on long flights based on my experience. I ordinarily fly with a crew of three.

Steve
April 20, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there a fit chart for the AEROX mask (PN 13-06657) so I will know what size to order? Thank you.

Per the supplier: There is no fit chart available. Small is not very common, usually for small teen and petite women. Medium is the most common size and generally explained as a one size fits all. The large is also not common and intended for very large men, example would be an NFL lineman.

Q: Is there a fit chart for the AEROX mask (PN 13-06657) so I will know what size to order? Thank you.

Per the supplier: There is no fit chart available. Small is not very common, usually for small teen and petite women. Medium is the most common size and generally explained as a one size fits all. The large is also not common and intended for very large men, example would be an NFL lineman.

Q: Is there a fit chart for the AEROX mask (PN 13-06657) so I will know what size to order? Thank you.

Per the supplier: There is no fit chart available. Small is not very common, usually for small teen and petite women. Medium is the most common size and generally explained as a one size fits all. The large is also not common and intended for very large men, example would be an NFL lineman.

Q: Does the mask come with a connector (e.g. PB1)?

It has the standard push on connectors that plug on to the flow meter.

Q: Does the mask mix the oxygen with cabin air, or is it strictly tank fed oxygen? I have to do a flight review and want to be completely isolated from the instructors exhale.

This mask is designed to be used with a portable oxygen system and it would be strictly tank fed.

Q: My Mooney uses the SC type connector to connect the mask to the system. Is this mask compatible? Thx

Yes, this would attach to the flow meter and can be used with all aerox tubing.

Q: Does this mask bring a Holder/placer to be installed in the cockpit?

It does not come with a holder.
