Rotax 503 582 Ul Engine Rewind Starter Parts

From $0.13 to $74.65

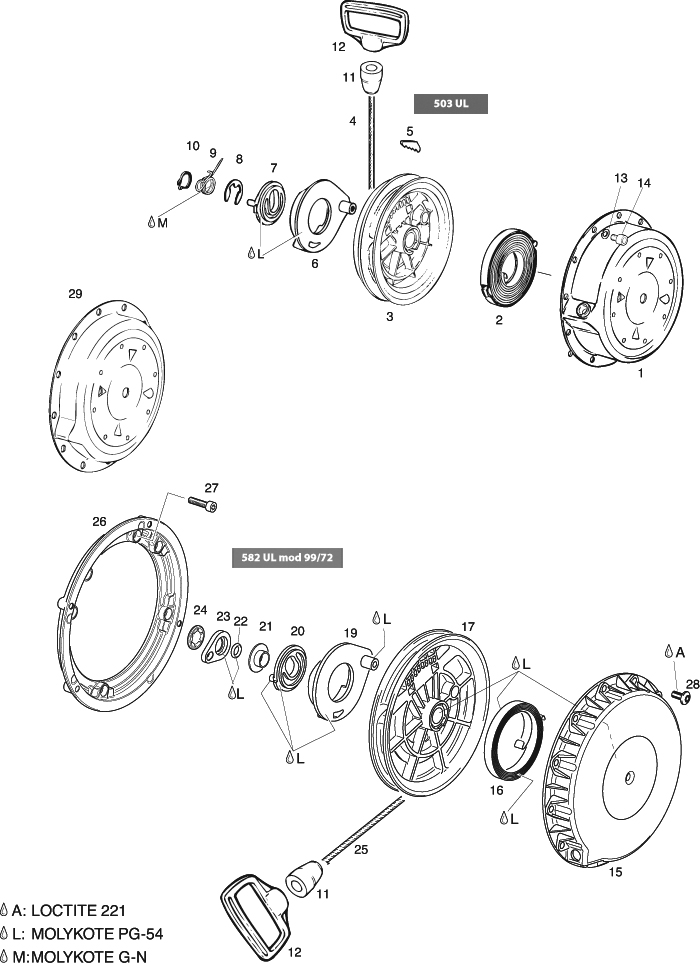

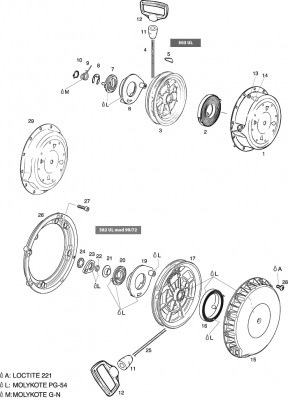

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. 503 UL Qty Req. 582 UL PN Price Buy
3852-283ROPE SHEAVE1
15-01564
$56.75
Quantity
4852-094STARTER ROPE 5,5X30000 (SEE NOTE BELOW)NBf
15-01557
$0.85
Quantity
5852-070KEY CLAMP1
15-01555
$2.71
Quantity
6852-290PAWL1
15-01567
$17.95
Quantity
8845-300RETAINING RING 151
15-01297
$1.42
Quantity
10945-770SNAP RING AV 171
15-03374
$0.85
Quantity
13945-751LOCK WASHER A6 DIN 12844
15-03359
$0.13
Quantity
14241-236ALLEN SCREW M6X1644
15-00169
$0.42
Quantity
22250-400O-RING 12X3,51
15-00259
$2.06
Quantity
23852-520LOCK LEVER1
15-01597
$2.62
Quantity
24845-560LOCKING ELEMENT1
15-01311
$1.49
Quantity
26810-866CONNECTING FLANGE1
15-00728
$74.65
Quantity
27241-231ALLEN SCREW M6X164
15-00168
$0.88
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   starter rope 1700 mm
  • b   starter rope 2600 mm
  • c   starter rope 3200 mm
  • d   starter rope 3700 mm
  • e   starter rope 2200 mm
  • f    in a roll.
  • g   modified rope fixation: knot instead of key clamp (from S/N 5.742.150)
         NOTICE when using new rewind starter without knot use new rope sheave (17)


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
447
503
582
m90
582
m99
618
Price
4
STARTER ROPE 5,5X1700 MM
1a
1a
1a
1a
*
4
STARTER ROPE 5,5X2600 MM
1b
1b
1b
1b
*
4
STARTER ROPE 5,5X3200 MM
1c
1c
1c
1c
*
4
STARTER ROPE 5,5X3700 MM
1d
1d
1d
1d
*
11,12, 15-25
N
892-800
REWIND STARTER SET
1eg
19
N
852-630
PAWL
1
*
20
N
852-304
PAWL LOCK
1
*
25
STARTER ROPE 5,3X2200
1e
*
25
STARTER ROPE 5,5X3700 MM
1d
*
