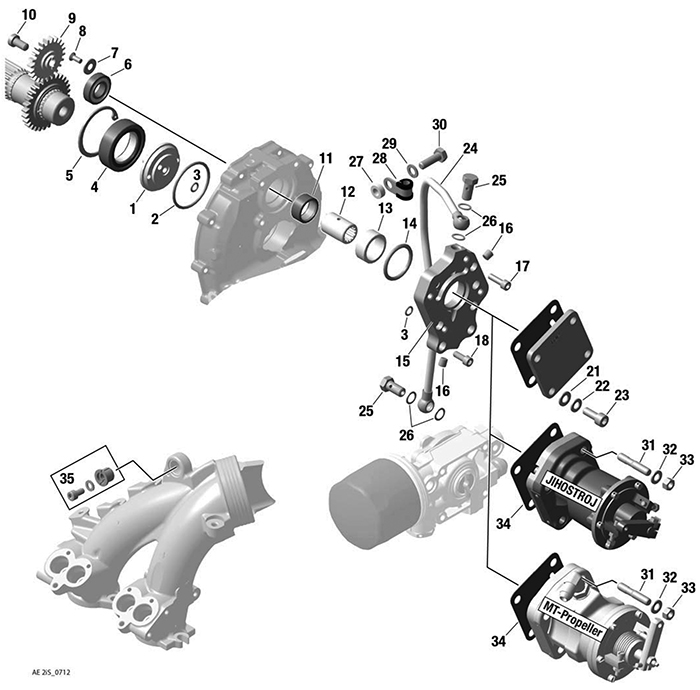

Rotax 912 iS Hydraulic Governor Arrangement For Constant Speed Propeller (Optional)

From $0.13 to $609.00
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req PN Price Buy
3830-415O-RING 7X22
15-00900
$4.38
Quantity
10941-522 ALLEN SCREW M8x161
15-09831
$1.39
Quantity
14950-380O-RING 32X4-N FPM 751
15-03399
$7.60
Quantity
15810-294GOVERNOR FLANGE1
15-00702
$609.00
Quantity
17241-930ALLEN SCREW M6X20 / TORQUE: 10 NM / 90 IN.LB.4
15-00198
$0.35
Quantity
18241-237ALLEN SCREW M6X16 / TORQUE: 10 NM / 90 IN.LB.2
15-00169
$0.42
Quantity
22945-832LOCK WASHER A84
15-03360
$0.13
Quantity
27847-224 DISTANCE SLEEVE 8.4/15/61
15-09640
$23.34
Quantity
29945-832 LOCK WASHER A81
15-09522
$0.23
Quantity
30240-276HEX. SCREW M8X25 / TORQUE: 15 NM / 135 IN.LB.1
15-00133
$0.79
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a    same as 881702 but without propeller shaft


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Part No.
Description
912 iS
912 iS Sport
Price
1
xxx
OIL INLET FLANGE, SEE CHAP 72-10-00
1
1
-
2
xxx
O-RING 46X3-N, SEE CHAP 72-10-00
1
1
-
4
xxx
ROLLER BEARING 205 E C3 25-52-15, SEE CHAP 72-10-00
1
1
-
5
xxx
RETAINING RING 52X2, SEE CHAP 72-10-00
1
1
-
7
xxx
THRUST WASHER, SEE CHAP 72-20-00
1
1
-
8
xxx
COUNTERSUNK SCREW M5X12, SEE CHAP 72-10-00 / TORQUE 55 IN.LB.
1
1
-
12
847-773
DRIVE SLEEVE
1
1
*
25
940-876
BANJO BOLT M10X1X19 / TORQUE. 17 NM/150 IN.LB.
2
2
*
27
847-224
DISTANCE SLEEVE 8.4/15/6
1
1
*
29
945-752
LOCK WASHER A8
1
1
-
32
945-752
LOCK WASHER A8
4
4
-
