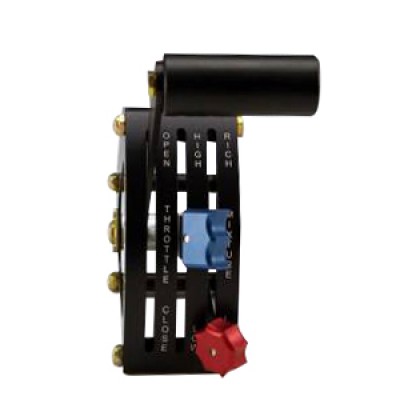

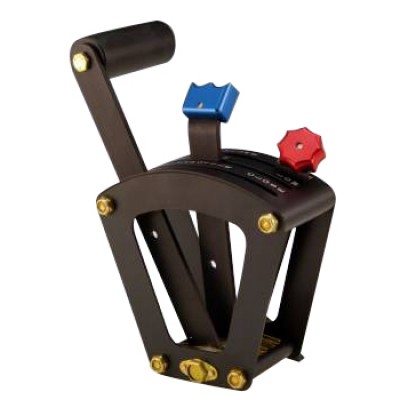

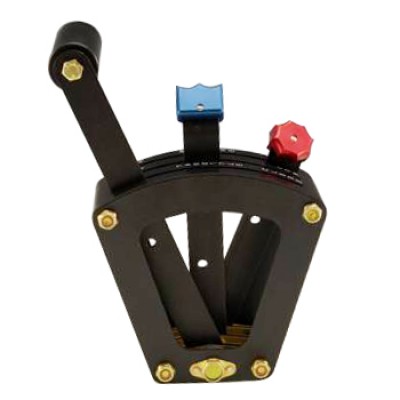

Throttle Quadrants For RV- Model Smct3L

$315.00/Each
Quantity
Add to Wishlist
Part# 05-00698
MFR Model# SMCT3L

Overview

These quadrants are made from aircraft quality anodized aluminum for long life and corrosion resistance. Brass friction plates are adjustable to fit individual preferences. Black anodized top plates are machined and engraved on a CNC mill to exacting tolerances for an excellent finish. side plates are laser cut insuring a perfect fit and feel. All hardware used meets AN standards. Note: All throttle qaudrants require a AN665-21R clevis with an AN393-11 clevis pin.

The side mount style quadrants are intended for use in tandem airplanes such as the RV4, RV8, Stardusters, Baby Great Lakes, One Design, Acro Sport and Sonerai. The center mount style is intended for use in side-by-side aircraft such as RV's, Sonex, Thorp T18 and Pulsars.

MODEL SPECIFICATIONS:
  • 3 CONTROL LEVER
  • Side Mount Curved Top
  • Weight: 10 Oz.
  • 7-3/4" H x 4-3/4" W x 2" D

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Arrived in great shape. Looks as advertised. Smooth function. WIll be some time before it see air time. But Ill do a bit of hanger flying with it whill I set up the cockpit.

Thomas W
March 30, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Would you require 3 clevis bolts and pins?

Yes, each control (lever) would require its on cable and clevis assembly.
