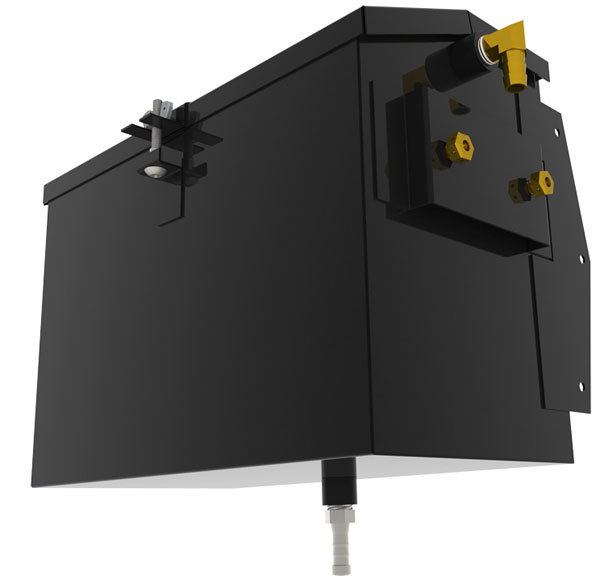

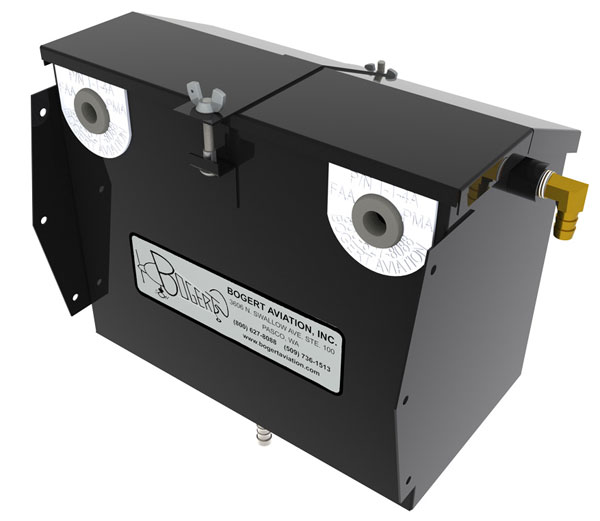

Bogert Stainless Steel Battery Box With Lid For Piper 28-161

Part# 11-13485
MFR Model# 06M-35845-02BA


Piper PA-28-161 Stainless Steel / Powdercoat Black Replacement Battery Box STC# SA01582SE

Many battery boxes in aircraft are 30, 40 or 50 years old and battery acid, vibration as well as time have taken their toll. Acid leaking into the belly of your airplane can severally damage the structure where you can't see it, between the laps of aluminum and the rivets.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Direct bolt on replacement for Piper metal and plastic battery boxes
  • Heavy gauge stainless steel construction
  • Brass screw-in vent tubes
  • Many models approved, others pending approval
  • Made in the USA


  • PA-28 161: SN 28-8316001 to 28-8616057
  • PA-28 161: SN 2816001 to 2816109


  • STC/PMA FAA approved for most Piper Aircraft
  • Protects your investment
  • Replaceable vent fittings
  • Eliminates acid leaks in the aircraft
  • Improves starting performance
  • Eliminates extra connection on outside of the battery box
  • Positive battery box venting



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
