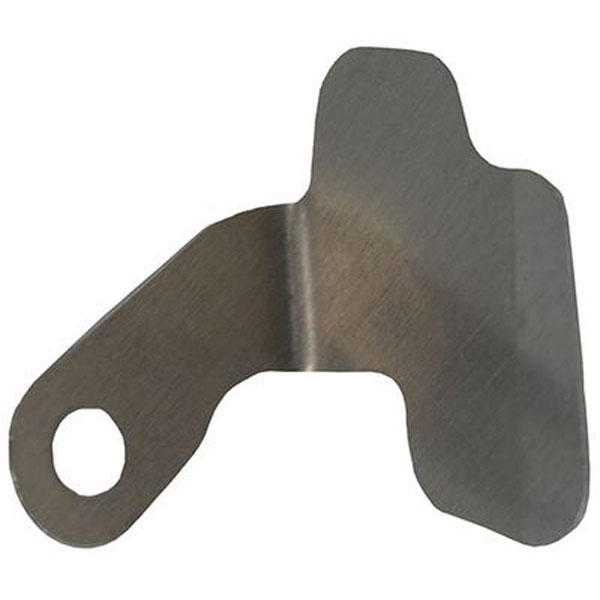

Cessna C-200 Airforms Engine Baffles

Select Model:
AF0750152-2 (Non-Congealing) AF0750152-3 (Congealing)

Overview

Engine oil thickens at cold temperatures, this thickening is commonly referred to as congealing. Even though it is bolted to a warm engine, it is possible for a congealing type oil cooler to remain cold enough to cause the engine oil inside it to remain cold and thick (congealed). When the engine warms up to about 160-180F the vernatherm directs oil into the oil cooler, but if there is congealed oil in the cooler, it can take a considerable amount of time for the oil to begin to flow through the oil cooler.

To avoid this situation, Non-Congealing oil coolers were designed to have a small - but continuous - amount of engine oil flowing through them at all times - even when the vernatherm is in full oil cooler by-pass mode at low oil temps. Non-Congealing oil coolers feature what is (non-technically) referred to as a "Wee-Wee Hole" (as in the picture above, right). This "Wee-Wee Hole" is a passageway running through the center of the oil cooler, through which a constant supply warm engine oil is pumped. This keeps the oil cooler - and the roughly two quarts of oil it contains, at (or near) the temperature of the engine. This way, engine oil can easily flow through the oil cooler the very instant that its flow is directed there via the vernatherm.

Under "Model Differences" are Oil Coolers commonly used on your aircraft. The part numbers of the baffles that fit each oil cooler are listed. Please measure your oil cooler to determine the baffle package that fits your aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Model Differences

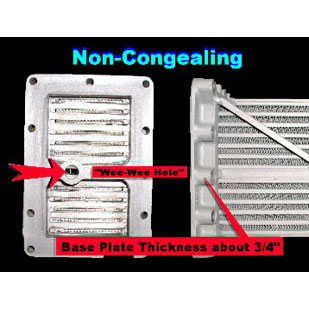

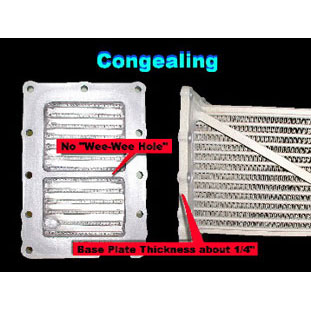

  • A congealing or non-congealing oil cooler can be identified by the thickness of the base plate and the presence of the "wee-wee hole" as indicated in the pictures below.

  • 12 Bolt Non-Congealing Oil Cooler
  • AF0750152-2

  • 12 Bolt Congealing Oil Cooler
  • AF0750152-3

Benefits

  • Bare aluminum finish
  • 6061-T6 aluminum with black high-temperature fiberglass reinforced silicone seals pre-installed
  • Stainless steel brackets where needed
  • Hard rivet construction
  • 1/2" back plates to secure seals
  • Improved fit

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
