Cleveland 199-512 Seal Repair Kit

$40.65/Each
Quantity
Add to Wishlist
Part# 06-01130
MFR Model# 199-51200

Overview

Elastomeric cure date required per ESP3620. This Service Kit will overhaul one 10-30, 10-30A, 10-30C, or 10-300 Master Cylinder Assembly.

CM10-30 Overhaul Instructions for 10-30, 10-30A, 10-30C, & 10-300

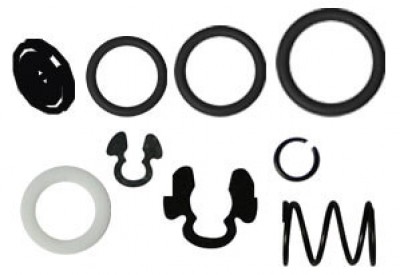

Kit Includes

  • 101-00100: O-Ring (10-30, 10-30A, 10-30C) - 1 EA.
  • 101-00800: O-Ring (All) - 2 EA.
  • 101-01100: O-Ring (All) - 1 EA.
  • 095-02600: Washer, Stat-o-seal (10-300) - 1 EA.
  • 095-01300: Wiper, Washer (All) - 1 EA.
  • 082-02100: Spring (All) - 1 EA.
  • 155-04800: Snap Ring (10-30, 10-30A, 10-30C) - 1 EA.
  • 155-00500: Snap Ring (10-300) - 1 EA.
  • 155-05000: Snap Ring (10-30 & 10-300) - 1 EA.

Reviews

As ordered. Remember to order special grease and Loctite if needed

David B Verified Purchase

199-512 CLEV SEAL REPAIR KIT

March 26, 2022

Everything needed to get the job done!

Aircraft M Verified Purchase

199-512 CLEV SEAL REPAIR KIT

March 13, 2022

Seals fit perfect

Dwight P Verified Purchase

199-512 CLEV SEAL REPAIR KIT

December 17, 2021

Complete set of O-rings, small spring and clips with clear instructions.

John C Verified Purchase

199-512 CLEV SEAL REPAIR KIT

November 18, 2021

Pricey

Lillian A Verified Purchase

199-512 CLEV SEAL REPAIR KIT

May 27, 2021

This kit had everything I needed to rebuild the Cleveland 10-30 cylinder(s) in my 1979 Piper Warrior.

Paul A
January 12, 2021

People getting ready to overhaul a brake master cylinder should be told that they will need more than just this overhaul kit to do the job. They’ll need to get the instructions online. They need to buy some Dow 50 grease and then the instructions call for fabrication of a special tool which requires a lathe. After getting the grease and making the tool, I finally rejected three parts in my 2 master cylinders and since those parts were so bloody expensive, I bought a pair of Matco cylinders instead of going ahead with overhauling the Cleveland cylinders.

Jerry
December 6, 2019

The kit needs Dow Corning 55 O-ring grease, absolutely unacceptable that you find out after you buy the kit!

Dcm A
November 23, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Could P/N: 06-01130 CLEVELAND 199-512 SEAL REPAIR KIT used with DOT3 brake fluid?

It is designed to be used with 5606 or like hydraulic fluid. We could not find any documents to show how well, or if, it can be used with DOT3 brake fluid.

Q: Does this kit include the check valve that prevents fluid from being pumped back into the reservoir instead to the brakes?

No this kit only includes o-rings, washers, springs and snap rings.
