HM SERIES BEARINGS

From $29.80 to $210.95
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

PN Thread Type Thread Size [PRICE] [BUY]
HM-2M
Right Hand.1380-32UNC$54.95
Quantity
HM-3M
Right Hand.1900-32UNC$29.80
Quantity
HML-3M
Right Hand.1900-32UNC$210.95
Quantity
HM-4M
Right Hand.2500-28UNF$35.90
Quantity
HM-5M
Right Hand.3750-24UNF$42.95
Quantity
HM-6M
Right Hand.3750-24UNF$37.75
Quantity
HML-6M
Left Hand.3750-24UNF$43.65
Quantity
HM-8M
Right Hand.5000-20UNF$99.65
Quantity
HML-8M
Left Hand.5000-20UNF$209.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

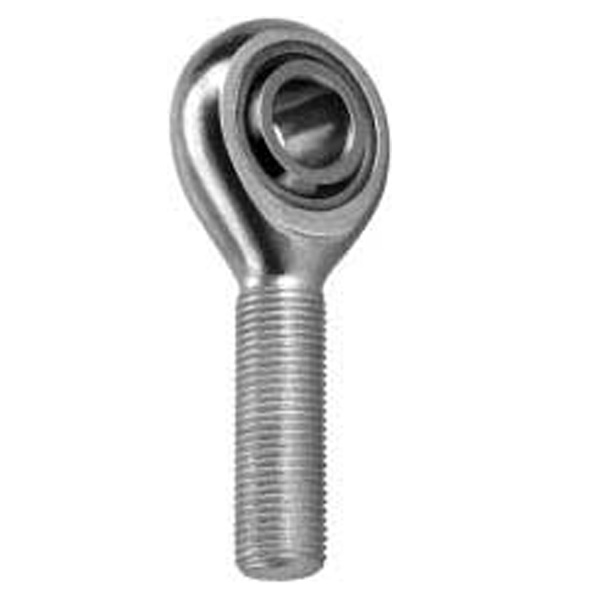

Rod Ends male threaded (HM M Series)
  • Outer Member: Aircraft Quality Carbon Steel, Magnetic particle inspected, with protective coating for corrosion resistance.
  • Ball: 52100 Alloy Steel, heat treated, chrome plated.
  • Inserts: Brass, 16 size has one piece carbon steel race.
  • The letter "L" indicates Left Hand thread.

Note: Zerk / lubricator fitting shown is a special order option. Contact sales for price and availability. Stock fittings will not include the option.

Attention: Subject to price & availability of Heim brand bearings, equivalent bearings may be furnished.

Specifications


PN Thread Type B
(in.)
W
(in.)
H
(in.)
D
(in.)
F
(in.)
A
(in.)
Thread Size E
(in.)
O
(in.)
HM-2M Right Hand .1250 .250 .187 .469 .937 .500 .1380-32UNC .312 .187
HML-2M Left Hand .1250 .250 .187 .469 .937 .500 .1380-32UNC .312 .187
HM-3M Right Hand .1900 .312 .250 .625 1.250 .750 .1900-32UNC .437 .306
HML-3M Left Hand .1900 .312 .250 .625 1.250 .750 .1900-32UNC .437 .306
HM-4M Right Hand .2500 .375 .281 .750 1.562 1.000 .2500-28UNF .515 .353
HML-4M Left Hand .2500 .375 .281 .750 1.562 1.000 .2500-28UNF .515 .353
HM-5M Right Hand .3125 .437 .344 .875 1.875 1.250 .3125-24UNF .625 .447
HM-6M Right Hand .3750 .500 .406 1.000 1.938 1.250 .3750-24UNF .718 .516
HML-6M Left Hand .3750 .500 .406 1.000 1.938 1.250 .3750-24UNF .718 .516
HM-8M Right Hand .5000 .625 .500 1.312 2.438 1.500 .5000-20UNF .937 .698
HML-8M Left Hand .5000 .625 .500 1.312 2.438 1.500 .5000-20UNF .937 .698

Reviews

High quality bearing used to replace broken (less robust) bearing on my RV Rocket Steering Link which led to a 270 deg ground loop (fortunately with only minor damage to wheel pant). I highly recommend replacing original bearings with this one.

Normand
August 17, 2020

Heim rod ends are always worth the extra money. Good insurance and they last forever.

Charlie B
October 26, 2017

The Heim rod end bearings that I ordered were a perfect fit, the detailed description in the catalog made it easy to select the correct bearing. The new bearings took the slop out of my control rods.

John J
September 25, 2017

Bought this to replace the rod end bearings on my RV-Rocket steering link, one of which had broken. High quality construction much more robust than original. Removed one star as item was back ordered almost a month...

Normand
September 29, 2020

Q&A

Q: Hi, for part number HML-6M, can you confirm that the part itself is marked HML-6M and not just HML-6? Thanks, Jeff

Yes, our stock for part number HML-6M is marked as HML6M on the manufacturers packaging. It is HML-6M.

Q: Hi, for part number HML-6M, can you confirm that the part itself is marked HML-6M and not just HML-6? Thanks, Jeff

Yes, our stock for part number HML-6M is marked as HML6M on the manufacturers packaging. It is HML-6M.

Q: Are these Heim HM bearings acceptable for installation in certificated aircraft?

No, Heim bearings are not TSO approved for use in certified aircraft.
