|Brownline style seat rail 6"|
|Brownline style seat rail 12"|
|Brownline style seat rail 18"|
|Brownline style seat rail 24"|
|Brownline style seat rail 36"|
|Brownline style seat rail 48"|
|Brownline style extrusion|

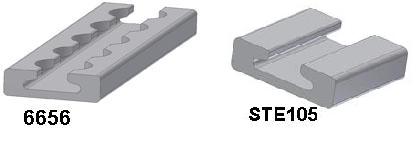

|Brownline style seat track and extrusion for modifications and homebuilder, or experimental aircraft. Can be ordered as slotted extrusion with or without 0.785” diameter machined openings every one inch, and can be purchased in anodized standard lengths or by the inch. They can also be purchased in non-anodized bulk lengths from 75” to 180”. Compatible with common MS33601 .73” diameter style fittings, the new tracks are precision machined, from aerospace grade 7075-T6511 aluminum with full traceability and material certification.|
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Regarding part number 05-07163: The rail is 1.34" in width and .37" in height. This part number has .785" diameter openings every one inch. Please use part number 05-07172 for the track without openings. 05-07172 is priced and sold by the inch.
1.35" width, 0.375" height
The part was made to the manufacturers PMA PQ3732CE, but a new installation may require a 337 field approvel. Consult with your A&P for field approval procedures.
The dimensions I have available are: Width= 1.35 Height= 0.37.
