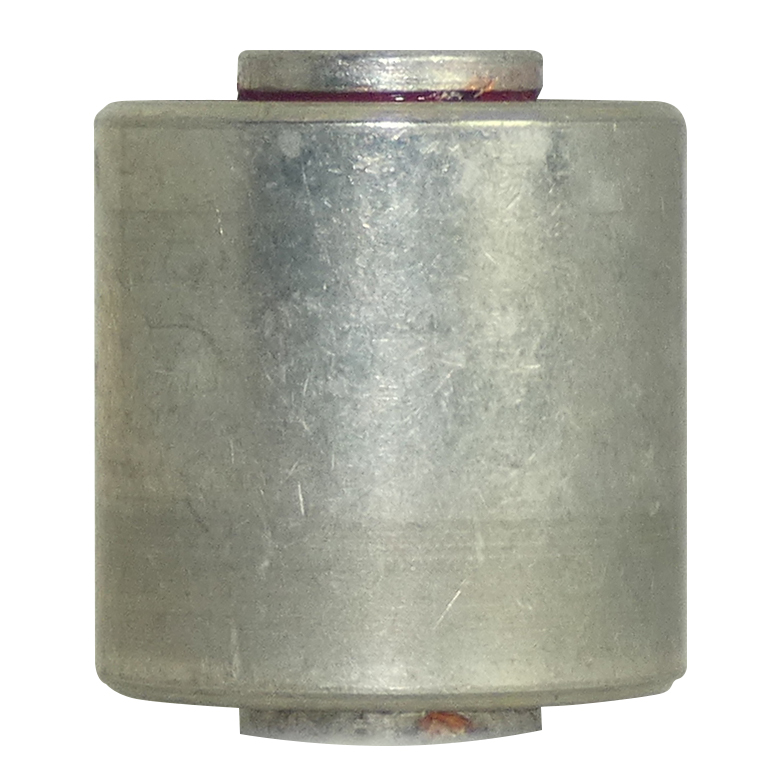

DW SERIES BEARINGS MS27647

0 Reviews 2 Answered Questions
Select Part:
DW4K2DW4KDW5DW6DW8
Quantity
Add to Wishlist

Overview

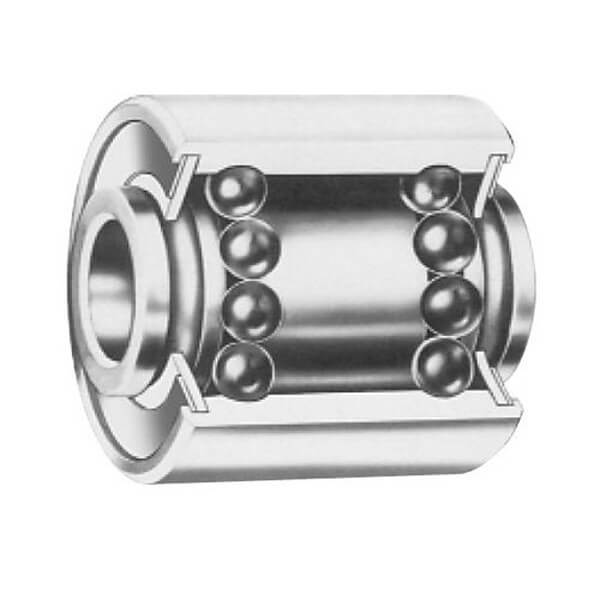

Extra Wide, Double Row, Ball

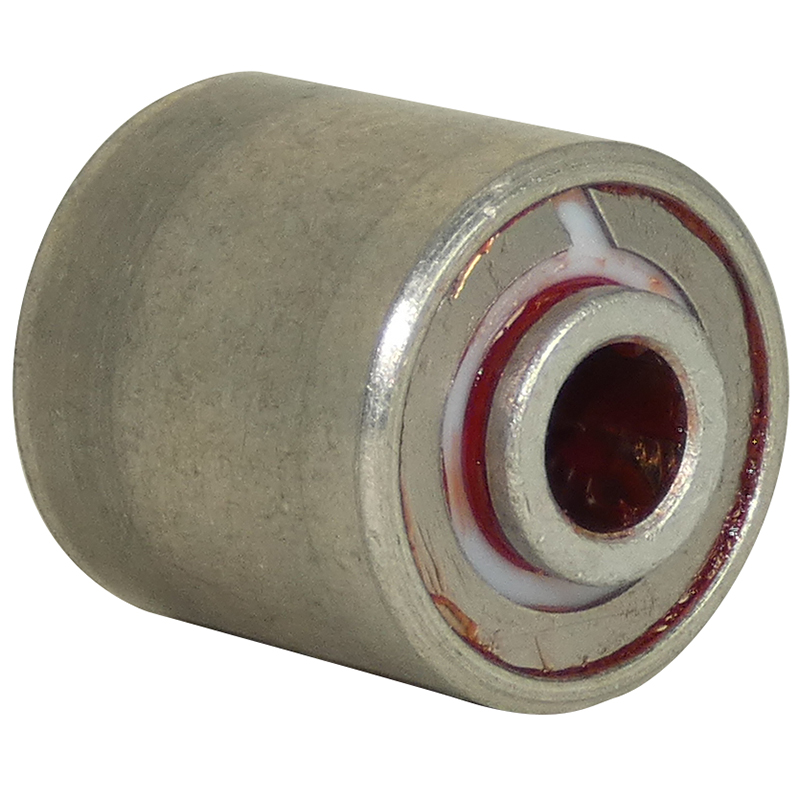

Equipped with removable Plya-Seals
Dimensionally interchangeable with the DW series, the GDW series is lubricatable through holes and a groove in the outer ring.

PN Bore Outside
Inner
Ring		 Width
Outer
Ring		 Width
Inner		 Shoulder
Width
Bore Ring		 Inner
Ring OD		 Outer Ring
Corner Chamfer		 Balls Pure
Moment		 Moment
Constant		 Wgt
DW4K2 .2500 .6250 .562 .500 .344 .016 .016 16-3/32 121 3.49 .025
DW4K .2500 .7500 .875 .750 .435 .005 .016 14-9/64 365 2.27 .04
DW5 .3125 .8750 .9375 .8125 .472 .005 .016 26-9/64 830 1.85 .07
DW6 .3750 1.0625 1.1875 1.0625 .576 .005 .016 24-3/16 1830 1.38 .12
DW8 .5000 1.4375 1.5000 1.3750 .715 .005 .032 22-17/64 4330 1.07 .29

Features

  • Extra Wide, Double Row, Ball
  • Equipped with removable Plya-Seals
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Submit a Review

Q&A

Submit
Q: Are these bearings made in the USA and what brand are they?

They are made in the USA and the manufacturer is National Precision Bearing.

Q: Are these bearings FAA approved?

No, these bearings are not approved by the FAA. Please contact your A&P for installation approval determinations.
