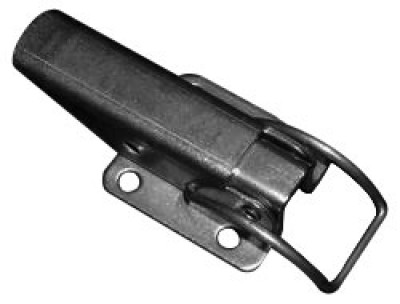

Dzus Cowl Latch Model I

$3.45/Each
Quantity
Add to Wishlist
Part# 05-01187
MFR Model# TL-40-103-07

Overview

These DzusŪ over the center type latches are used extensively on cowl doors and other applications on aircraft such as Cessna, Piper, Grumman, and many homebuilts.

Model I latch: This latch provides 700 lbs. Ultimate strength and 100 lbs. Working strength. Pull up ability is 0.6 inch. Mounting holes will accept .156 in. diameter rivets or #6 round head screws. Order strikes separately.

Zinc plated steel

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Working Strength: 100 lb.
  • Ultimate Strength: 700 lb.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good parts.

Billy A Verified Purchase

Dzus Cowl Latch # TL800G

June 12, 2024

Nice parts.

Billy A Verified Purchase

Dzus Cowl Latch # TL800G

February 13, 2024

Great, classic design! Rapid response and shipment.

John L Verified Purchase

Dzus Cowl Latch # TL800G

July 29, 2023

David Z Verified Purchase

Dzus Cowl Latch # TL800G

April 1, 2022

Works as intended. Strong and durable.

Herb S
February 13, 2020

These are well made. A good value for the price. When mounting, make sure you get it to go solidly over center. The latch strike needs to be low, ideally lower than the draw point on the latch. Installed some of these and the smaller Dzus cowl latch Model II. This one is beefier, and has a larger set of cross-pin holes. I can safety it down with a four-inch cable tie. Those smaller ones have a set of cross-pin holes but youll need safety wire to do the job, which slows things down if youre into and out of the latched door frequently.

Phill
September 9, 2019

Works very well, however, you must use a Phillips flat head machine screw that is smaller in diameter than the provided holes or else the swinging latch will jam and not close. I found that 6-32 1/4 machine screw and stop nuts worked best on a thin aluminum cowl

Thomas E Verified Purchase

Dzus Cowl Latch # TL800G

April 12, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this latch PMAd/TSOd ?

No. The latch itself does not have a PMA or TSO.
