MS15001-1 GREASE FITTING

From $0.25 to $3.65
Description Part No. Price Buy
MS15001-1
MS15001-1
$3.65
Quantity
Commercial MS15001-1
04-02325
$0.25
Quantity
Subtotal $0.00
Add to Wishlist

Overview

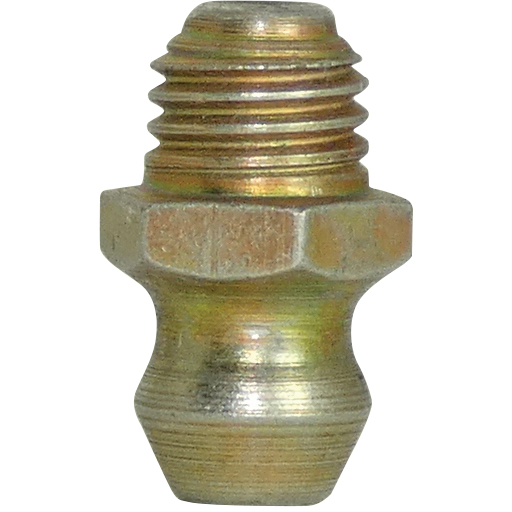

Surface Check fittings of the MS15000 series have spring-loaded ball check in the tip.

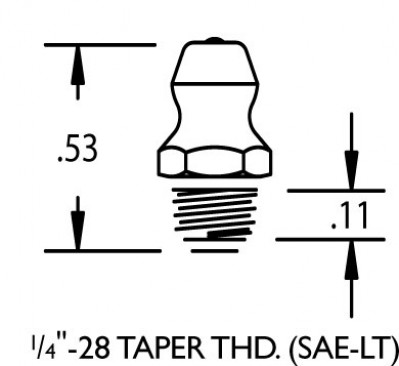

MS15001-1
Thread: 1/4-28 Tapered
Shank Length: 3/16
Thread Length: .109
Total Length: 1/2
Angle: 0

  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Whats the difference between the MS15001-1 and the Commercial MS15001-1?

The MS15001-1 meets the most current revision, AS15001-1P, which is in the description. The 04-02325 meets the old MS15001-1, which has been superseded to AS15001-1P. New designs require the newest revision. The old spec can be used on experimental aircraft, or where the old spec would still apply.

Q: Is part # MS15001-1 priced and sold as a package of 10 or a single fitting?

Part # MS15001-1 is priced and sold individually. 1 fitting for quantity 1.
