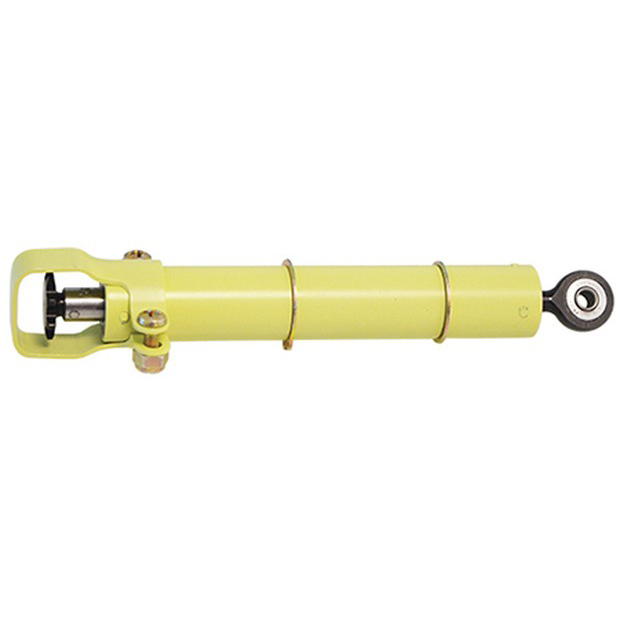

McFarlane Trim Tab Actuator for Cessna Aircraft
$1738.00/Each
+$150 Core Exchange Charge
Part# 05-27269
MFR Model# MC1260074-1
MFR Model# MC1260074-1
FREE Shipping
Overview
|
This direct replacement trim tab actuator incorporates many design improvements. Longer lasting coatings are utilized for increased service life, smoother operation, and improved corrosion resistance. The Trim Tab Actuator is manufactured with high strength stainless steel alloy that has been nitrocarburized for maximum wear, low friction, and smoother thread operation than the OEM part. The sprocket is made from stronger aluminum, then anodized for wear and corrosion protection. The known problems of original parts have been addressed and resolved with this new design. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Supersedures
| OEM Part Number | McFarlane Part Number |
|---|---|
| 0310293 | MC1260074-1 |
| 0310293-10 | MC1260074-1 |
| 0310293-11 | MC1260074-1 |
| 0310293-12 | MC1260074-1 |
| 0310293-13 | MC1260074-1 |
| 0310293-14 | MC1260074-1 |
| 0310293-2 | MC1260074-1 |
| 1260074-1 | MC1260074-1 |
| 1260074-2 | MC1260074-1 |
| 1260074-2AGW | MC1260074-1 |
Specifications
- Black Max™ coated stainless screw for wear and corrosion resistance
- Aluminum/bronze inner barrel prevents sub-zero lockup
- Anodized sprocket resists chain wear
Eligibility
| Make | Series | Model | Beginning S/N | Ending S/N | Quantity Per Aircraft | Location |
|---|---|---|---|---|---|---|
| Cessna | 120 | 120 | 8003 | 15075 | 1 | Elevator |
| Cessna | 140 | 140 | 8001 | 15075 | 1 | Elevator |
| Cessna | 140 | 140A | 15200 | 15724 | 1 | Elevator |
| Cessna | 150 | 150 | 17001 | 59018 | 1 | Elevator |
| Cessna | 150 | 150A | 15059019 | 15059350 | 1 | Elevator |
| Cessna | 150 | 150B | 15059351 | 15059700 | 1 | Elevator |
| Cessna | 150 | 150C | 15059701 | 15060087 | 1 | Elevator |
| Cessna | 150 | 150D | 15060088 | 15060772 | 1 | Elevator |
| Cessna | 150 | 150E | 15060773 | 15061532 | 1 | Elevator |
| Cessna | 150 | 150F | 15061533 | 15064532 | 1 | Elevator |
| Cessna | 150 | 150G | 15064533 | 15067198 | 1 | Elevator |
| Cessna | 150 | 150H | 15067199 | 15069308 | 1 | Elevator |
| Cessna | 150 | 150J | 15069309 | 15071128 | 1 | Elevator |
| Cessna | 150 | 150K | 15071129 | 15072003 | 1 | Elevator |
| Cessna | 150 | 150L | 15072004 | 15075781 | 1 | Elevator |
| Cessna | 150 | 150M | 15075782 | 15079405 | 1 | Elevator |
| Cessna | 150 | A150K | A1500001 | A1500226 | 1 | Elevator |
| Cessna | 150 | A150L | A1500227 | A1500523 | 1 | Elevator |
| Cessna | 150 | A150M | A1500524 | A1500734 | 1 | Elevator |
| Cessna | 150 | F150F | F150-0001 | F150-0067 | 1 | Elevator |
| Cessna | 150 | F150G | F150-0068 | F150-0219 | 1 | Elevator |
| Cessna | 150 | F150H | F150-0220 | F150-0389 | 1 | Elevator |
| Cessna | 150 | F150J | F150-0390 | F150-0529 | 1 | Elevator |
| Cessna | 150 | F150K | F15000530 | F15000658 | 1 | Elevator |
| Cessna | 150 | F150L | F15000659 | F15001143 | 1 | Elevator |
| Cessna | 150 | F150M | F15001144 | F15001428 | 1 | Elevator |
| Cessna | 150 | FA150K | FA1500001 | FA1500081 | 1 | Elevator |
| Cessna | 150 | FA150L | FA1500082 | FA1500120 | 1 | Elevator |
| Cessna | 150 | FA150L (when equipped w/FKA150-2311 & FKA150-2316) | FA1500121 | FA1500261 | 1 | Elevator |
| Cessna | 150 | FA150M (when equipped w/FKA150-2311 & FKA150-2316) | FA1500262 | FA1500336 | 1 | Elevator |
| Cessna | 150 | FRA150L | FRA1500121 | FRA1500261 | 1 | Elevator |
| Cessna | 150 | FRA150M | FRA1500262 | FRA1500336 | 1 | Elevator |
| Cessna | 152 | 152 | 15279406 | 15286033 | 1 | Elevator |
| Cessna | 152 | A152 | A1520735 | A1521049 | 1 | Elevator |
| Cessna | 152 | F152 | F15201429 | F15201980 | 1 | Elevator |
| Cessna | 152 | FA152 | FA1520337 | FA1520425 | 1 | Elevator |
| Cessna | 170 | 170 | 18000 | 18729 | 1 | Elevator |
| Cessna | 170 | 170A | 18730 | 20266 | 1 | Elevator |
| Cessna | 170 | 170B | 20267 | 27169 | 1 | Elevator |
| Cessna | 172 | 172 | 28000 | 46754 | 1 | Elevator |
| Cessna | 172 | 172A | 46755 | 47746 | 1 | Elevator |
| Cessna | 172 | 172B | 17247747 | 17248734 | 1 | Elevator |
| Cessna | 172 | 172C | 17248735 | 17249544 | 1 | Elevator |
| Cessna | 172 | 172D | 17249545 | 17250572 | 1 | Elevator |
| Cessna | 172 | 172E | 17250573 | 17251822 | 1 | Elevator |
| Cessna | 172 | 172F (T-41A) | 17251823 | 17253392 | 1 | Elevator |
| Cessna | 172 | 172G | 17253393 | 17254892 | 1 | Elevator |
| Cessna | 172 | 172H (T-41A) | 17254893 | 17256512 | 1 | Elevator |
| Cessna | 172 | 172I | 17256513 | 17257161 | 1 | Elevator |
| Cessna | 172 | 172K | 17257162 | 17259223 | 1 | Elevator |
| Cessna | 172 | 172L | 17259224 | 17260758 | 1 | Elevator |
| Cessna | 172 | 172M | 17260759 | 17263458 | 1 | Elevator |
| Cessna | 172 | 172M | 17263459 | 17267584 | 1 | Elevator |
| Cessna | 172 | 172N | 17267585 | 17274009 | 1 | Elevator |
| Cessna | 172 | 172P | 17274010 | 17276654 | 1 | Elevator |
| Cessna | 172 | 172Q | 17275869 | 17276211 | 1 | Elevator |
| Cessna | 172 | 172R | 17280001 | 17299999 | 1 | Elevator |
| Cessna | 172 | 172RG | 172RG0001 | 172RG1191 | 1 | Elevator |
| Cessna | 172 | 172S | 172S8001 | 172S99999 | 1 | Elevator |
| Cessna | 172 | F172D | F172-0001 | F172-0018 | 1 | Elevator |
| Cessna | 172 | F172E | F172-0019 | F172-0085 | 1 | Elevator |
| Cessna | 172 | F172F | F172-0086 | F172-0179 | 1 | Elevator |
| Cessna | 172 | F172G | F172-0180 | F172-0319 | 1 | Elevator |
| Cessna | 172 | F172H | F17200655 | F17200754 | 1 | Elevator |
| Cessna | 172 | F172H | F172-0320 | F172-0654 | 1 | Elevator |
| Cessna | 172 | F172K | F17200755 | F17200804 | 1 | Elevator |
| Cessna | 172 | F172L | F17200805 | F17200904 | 1 | Elevator |
| Cessna | 172 | F172M | F17200905 | F17201234 | 1 | Elevator |
| Cessna | 172 | F172M | F17201235 | F17201514 | 1 | Elevator |
| Cessna | 172 | F172N | F17201515 | F17202039 | 1 | Elevator |
| Cessna | 172 | F172P | F17202040 | F17202254 | 1 | Elevator |
| Cessna | 172 | FP172 | FP172-0001 | FP172-0003 | 1 | Elevator |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | Elevator |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | Elevator |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | Elevator |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | Elevator |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | Elevator |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | Elevator |
| Cessna | 172 | P172D | P17257120 | P17257188 | 1 | Elevator |
| Cessna | 172 | R172E (T-41B,C,D) | R172-0001 | R1720335 | 1 | Elevator |
| Cessna | 172 | R172F (T-41D) | R172-0336 | R172-0409 | 1 | Elevator |
| Cessna | 172 | R172G (T-41C,D) | R1720410 | R1720444 | 1 | Elevator |
| Cessna | 172 | R172H (T-41D) | R1720445 | R1720620 | 1 | Elevator |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | Elevator |
| Cessna | 175 | 175 | 55001 | 56238 | 1 | Elevator |
| Cessna | 175 | 175A | 56239 | 56777 | 1 | Elevator |
| Cessna | 175 | 175B | 17556778 | 17557002 | 1 | Elevator |
| Cessna | 175 | 175C | 17557003 | 17557119 | 1 | Elevator |
| Cessna | 182 | 182E | 18253599 | 18254423 | 1 | Elevator |
| Cessna | 182 | 182F | 18254424 | 18255058 | 1 | Elevator |
| Cessna | 182 | 182G | 18255059 | 18255844 | 1 | Elevator |
| Cessna | 182 | 182H | 18255846 | 18256684 | 1 | Elevator |
| Cessna | 182 | 182J | 18256685 | 18257625 | 1 | Elevator |
| Cessna | 182 | 182K | 18257626 | 18258505 | 1 | Elevator |
| Cessna | 182 | 182L | 18258506 | 18259305 | 1 | Elevator |
| Cessna | 182 | 182M | 18259306 | 18260055 | 1 | Elevator |
| Cessna | 182 | 182N | 18260056 | 18260825 | 1 | Elevator |
| Cessna | 182 | 182P | 18260826 | 18262465 | 1 | Elevator |
| Cessna | 182 | 182P | 18262466 | 18265175 | 1 | Elevator |
| Cessna | 182 | 182P | 18262466 | 18265175 | 1 | Elevator |
| Cessna | 182 | 182Q | 18265176 | 18267715 | 1 | Elevator |
| Cessna | 182 | 182Q | 18265176 | 18267715 | 1 | Elevator |
| Cessna | 182 | 182R | 18267716 | 18268586 | 1 | Elevator |
| Cessna | 182 | 182R | 18267716 | 18268586 | 1 | Elevator |
| Cessna | 182 | 182S | 18280001 | 18280944 | 1 | Elevator |
| Cessna | 182 | 182T | 18280945 | 182999999 | 1 | Elevator |
| Cessna | 182 | F182P | F18200001 | F18200025 | 1 | Elevator |
| Cessna | 182 | F182P | F18200001 | F18200025 | 1 | Elevator |
| Cessna | 182 | F182Q | F18200026 | F18200169 | 1 | Elevator |
| Cessna | 182 | F182Q | F18200026 | F18200169 | 1 | Elevator |
| Cessna | 182 | FR182 | FR18200001 | FR18200070 | 1 | Elevator |
| Cessna | 182 | R182 | R18200001 | R18202041 | 1 | Elevator |
| Cessna | 182 | T182 | 18267716 | 18268541 | 1 | Elevator |
| Cessna | 182 | T182 | 18267716 | 18268541 | 1 | Elevator |
| Cessna | 182 | T182T | T18208001 | T182999999 | 1 | Elevator |
| Cessna | 182 | TR182 | R18200584 | R18202041 | 1 | Elevator |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | Elevator |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | Elevator |
| Cessna | 188 | 188B | 18800833 | 18802348 | 1 | Elevator |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | Elevator |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | Elevator |
| Cessna | 188 | A188B | 18800833 | 18802348 | 1 | Elevator |
| Cessna | 188 | A188B | 18802349 | 18803973 | 1 | Elevator |
| Cessna | 188 | A188B (w/ large hopper) | 18800833T | 18802348T | 1 | Elevator |
| Cessna | 188 | A188B (w/ large hopper) | 18802349T | 18803973T | 1 | Elevator |
| Cessna | 188 | T188C | T18803325T | T18803974T | 1 | Elevator |
| Cessna | 190 | 190 | 7004 | 16183 | 1 | Elevator |
| Cessna | 195 | 195A | 7004 | 16183 | 1 | Elevator |
| Cessna | 195 | 195B | 7004 | 16183 | 1 | Elevator |
| Cessna | 195 | 195 (LC-126A,B,C) | 7004 | 16183 | 1 | Elevator |
| Cessna | 205 | 210-5 (205) | 205-0001 | 205-0480 | 1 | Elevator |
| Cessna | 205 | 210-5A (205A) | 205-0481 | 205-0577 | 1 | Elevator |
| Cessna | 206 | 206 | 206-0001 | 206-0275 | 1 | Elevator |
| Cessna | 206 | P206 | P206-0002 | P206-0160 | 1 | Elevator |
| Cessna | 206 | P206A | P206-0161 | P206-0306 | 1 | Elevator |
| Cessna | 206 | P206B | P206-0307 | P206-0419 | 1 | Elevator |
| Cessna | 206 | P206C | P206-0420 | P206-0519 | 1 | Elevator |
| Cessna | 206 | P206D | P206-0520 | P206-0603 | 1 | Elevator |
| Cessna | 206 | P206E | P20600604 | P20600647 | 1 | Elevator |
| Cessna | 206 | TP206A | P206-0191 | P206-0306 | 1 | Elevator |
| Cessna | 206 | TP206B | P206-0307 | P206-0419 | 1 | Elevator |
| Cessna | 206 | TP206C | P206-0420 | P206-0519 | 1 | Elevator |
| Cessna | 206 | TP206D | P206-0520 | P206-0603 | 1 | Elevator |
| Cessna | 206 | TP206E | P20600604 | P20600647 | 1 | Elevator |
| Cessna | 206 | TU206A | U206-0487 | U206-0656 | 1 | Elevator |
| Cessna | 206 | TU206B | U206-0657 | U206-0914 | 1 | Elevator |
| Cessna | 206 | TU206C | U206-0915 | U206-1234 | 1 | Elevator |
| Cessna | 206 | TU206D | U206-1235 | U206-1444 | 1 | Elevator |
| Cessna | 206 | TU206E | U20601445 | U20601700 | 1 | Elevator |
| Cessna | 206 | TU206F | U20601701 | U20602199 | 1 | Elevator |
| Cessna | 206 | U206 | U206-0276 | U206-0437 | 1 | Elevator |
| Cessna | 206 | U206A | U206-0438 | U206-0656 | 1 | Elevator |
| Cessna | 206 | U206B | U206-0657 | U206-0914 | 1 | Elevator |
| Cessna | 206 | U206C | U206-0915 | U206-1234 | 1 | Elevator |
| Cessna | 206 | U206D | U206-1235 | U206-1444 | 1 | Elevator |
| Cessna | 206 | U206E | U20601445 | U20601700 | 1 | Elevator |
| Cessna | 206 | U206F | U20601701 | U20602199 | 1 | Elevator |
| Cessna | 207 | 207 | 20700001 | 20700227 | 1 | Elevator |
| Cessna | 207 | T207 | 20700001 | 20700227 | 1 | Elevator |
| Cessna | 210 | 210 | 57001 | 57575 | 1 | Elevator |
| Cessna | 210 | 210A | 21057576 | 21057840 | 1 | Elevator |
| Cessna | 210 | 210B | 21057841 | 21058085 | 1 | Elevator |
| Cessna | 210 | 210C | 21058086 | 21058220 | 1 | Elevator |
| Cessna | 210 | 210D | 21058221 | 21058510 | 1 | Elevator |
| Cessna | 210 | 210E | 21058511 | 21058715 | 1 | Elevator |
| Cessna | 210 | 210F | 21058716 | 21058818 | 1 | Elevator |
| Cessna | 210 | 210G | 21058819 | 21058936 | 1 | Elevator |
| Cessna | 210 | 210H | 21058937 | 21059061 | 1 | Elevator |
| Cessna | 210 | 210J | 21059062 | 21059199 | 1 | Elevator |
| Cessna | 210 | 210K | 21059200 | 21059502 | 1 | Elevator |
| Cessna | 210 | 210L | 21059503 | 21060089 | 1 | Elevator |
| Cessna | 210 | T210F | T210-0001 | T210-0197 | 1 | Elevator |
| Cessna | 210 | T210G | T210-0198 | T210-0307 | 1 | Elevator |
| Cessna | 210 | T210H | T210-0308 | T210-0392 | 1 | Elevator |
| Cessna | 210 | T210J | T210-0393 | T210-0454 | 1 | Elevator |
| Cessna | 210 | T210K | 21059200 | 21059502 | 1 | Elevator |
| Cessna | 210 | T210L | 21059503 | 21060089 | 1 | Elevator |
| Cessna | 310 | 310 | 35000 | 35546 | 1 | Elevator & Aileron |
| Cessna | 310 | 310B | 35547 | 35771 | 1 | Elevator & Aileron |
| Cessna | 310 | 310C | 35772 | 39031 | 1 | Elevator & Aileron |
| Cessna | 310 | 310D | 39032 | 39299 | 1 | Elevator & Aileron |
| Cessna | 310 | 310F | 310-0001 | 310-0156 | 1 | Elevator & Aileron |
| Cessna | 310 | 310G | 310G0001 | 310G0156 | 1 | Elevator & Aileron |
| Cessna | 310 | 310H | 310H0001 | 310H0148 | 1 | Elevator & Aileron |
| Cessna | 310 | 310I | 310I0001 | 310I0200 | 1 | Elevator & Aileron |
| Cessna | 310 | 310J | 310J0001 | 310J0200 | 1 | Elevator & Aileron |
| Cessna | 310 | 310J-1 | 310J0001 | 310J0200 | 1 | Elevator & Aileron |
| Cessna | 310 | 310K | 310K0001 | 310K0001 | 1 | Elevator & Aileron |
| Cessna | 310 | 310K | 310K0046 | 310K0245 | 1 | Elevator |
| Cessna | 310 | 310P | 310P0001 | 310P0240 | 1 | Elevator |
| Cessna | 310 | 310Q | 310Q0001 | 310Q1160 | 1 | Elevator |
| Cessna | 310 | 310R | 310R0001 | 310R1500 | 1 | Elevator |
| Cessna | 310 | E310H | 310H0001 | 310H0148 | 1 | Elevator & Aileron |
| Cessna | 310 | E310J | 310J0001 | 310J0200 | 1 | Elevator & Aileron |
| Cessna | 310 | T310P | 310P0001 | 310P0240 | 1 | Elevator |
| Cessna | 310 | T310Q | 310Q0001 | 310Q1160 | 1 | Elevator |
| Cessna | 310 | T310R | 310R0001 | 310R1500 | 1 | Elevator |
| Cessna | 320 | 320 | 320-0001 | 320-0110 | 1 | Elevator & Aileron |
| Cessna | 320 | 320-1 | 320-0001 | 320-0110 | 1 | Elevator & Aileron |
| Cessna | 320 | 320A | 320A0001 | 320A0047 | 1 | Elevator & Aileron |
| Cessna | 320 | 320B | 320B0001 | 320B0062 | 1 | Elevator & Aileron |
| Cessna | 320 | 320C | 320C0001 | 320C0073 | 1 | Elevator & Aileron |
| Cessna | 320 | 320D | 320D0001 | 320D0130 | 1 | Elevator & Aileron |
| Cessna | 320 | 320E | 320E0001 | 320E0001 | 1 | Aileron |
| Cessna | 411 | 411 | 411-0001 | 411-0250 | 1 | Elevator |
| Cessna | 411 | 411A | 411-0251 | 411-0300 | 1 | Elevator |
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
