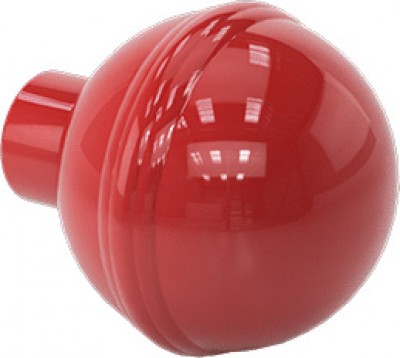

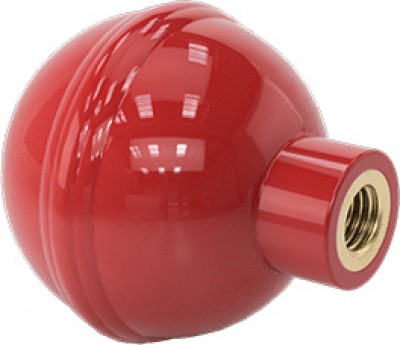

Red Phenolic Plastic Ball Knob 1-1/16 Inch

$2.98/Each
Quantity
Add to Wishlist
Part# 04-04258
MFR Model# 6146K42

Overview

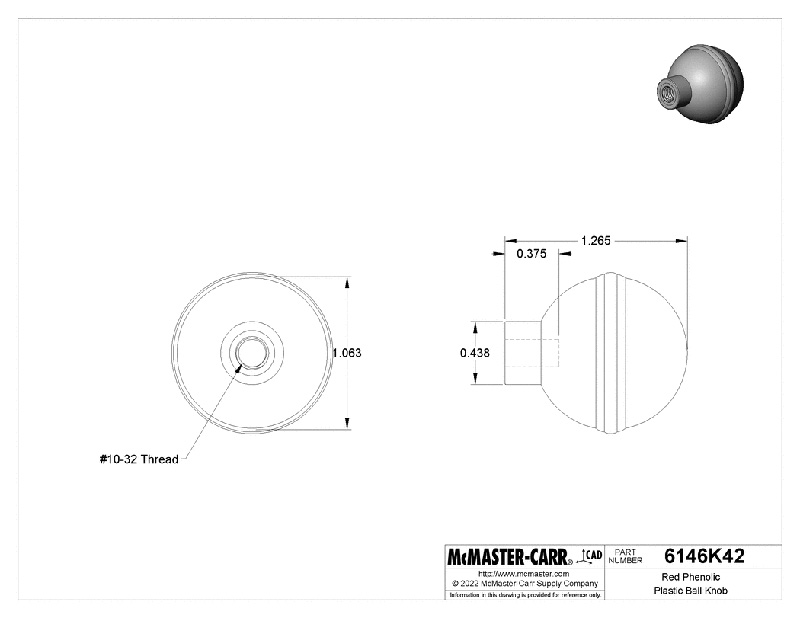

10-32 threaded hole, 1-1/16" diameter head

Install these traditional, easy-to-grip ball knobs on a threaded stud. They're good for control levers and push-pull rods.

Plastic knobs are a lightweight alternative to metal. They resist oil, grease, and solvents.

Phenolic has good scratch resistance.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • System of Measurement: Inch
  • Mount Type: Threaded Hole
  • Hole Shape: Round
  • Grip Style: Ball
  • Material: Phenolic Plastic
  • Color: Red
  • Thread:
    • Size - 10-32
    • Depth - 3/8"
    • Direction - Right Hand
  • Head Diameter: 1 1/16"
  • Hub Diameter: 7/16"
  • Hub Height: 1/4"
  • Insert Material: Brass
  • Temperature Range: -30° to 400° F
  • RoHS: RoHS 3 (2015/863/EU) Compliant
  • REACH: REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
  • DFARS: Specialty Metals COTS-Exempt
  • Country of Origin: United States
  • USMCA Qualifying: No
  • Schedule B: 848790.0080
  • ECCN: EAR99
