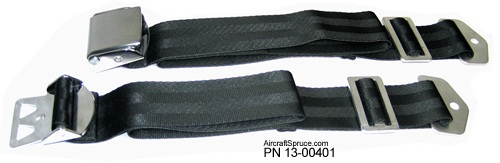

These are top quality, new manufactured assemblies. They are designed, manufactured, and proof tested to rigid FAA standards. All seat belts use proven lift to release style Davis metal to metal buckles. Push-to-release buckles are not used due to difficulties in releasing under emergency conditions. Aircraft quality alloys and 2-inch nylon webbing are used throughout. Seatbelts are certified to FAA TSO-C22f.

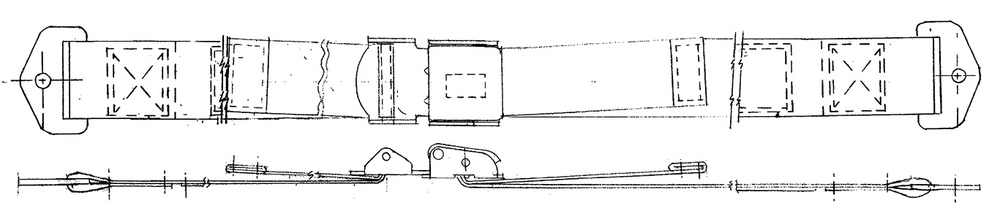

It is customary to install belts with a slide adjustment bar which permits weaving webbing through fitting and through bar for secure installation. Drawing shows correct method of lacing the webbing through bar. This 56" adjustable seat belt offers a heavy-duty combination of all-nylon 2" wide herringbone webbing.
The end fittings for each side of the lap belt have a .325 in. dia. hole which allows for a fastener/bolt to slide through. Where that attaches to depends on the design of the aircraft/aircraft seat.
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
Nice belts have extended receptical so it is possible to add shoulder harness by using the slip over type ends. A bushing for belt ends is not supplied so may have to be fabricated when using -3 or -4 attachment bolts. Both ends of belts are adjustable at the buckle end so setting the buckle position is easier with shoulder harness.
Nice seat belts at a good price. The slider makes for good shoulder harness positioning. Put these in a F model 35 Bonanza.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Here are the specs you need:
The difference between the two is the fitting. The 2A belt has a bolt type fitting and the 1B has a snap hook.
Per the manufacturer: 1500 is the rated strength, and is marked on the TSO labels.
The whole belt weighs approximately 1 lb.
Y harness part numbers 13-00601 & 13-00701 can be used, as well as p/n 13-00801 two strap style harness.
The 1A is adjustable at the buckle only and the 2A can be adjusted at the buckle but also has an adjuster on each side of the set.
No. FAA TSO means it is FAA certified for use in certificated aircraft. Field approvals are generally not required. Consult with your A&P for specific legality questions regarding your airframe.
